Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Impala V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof Motor
Sunroof / Moonroof Motor

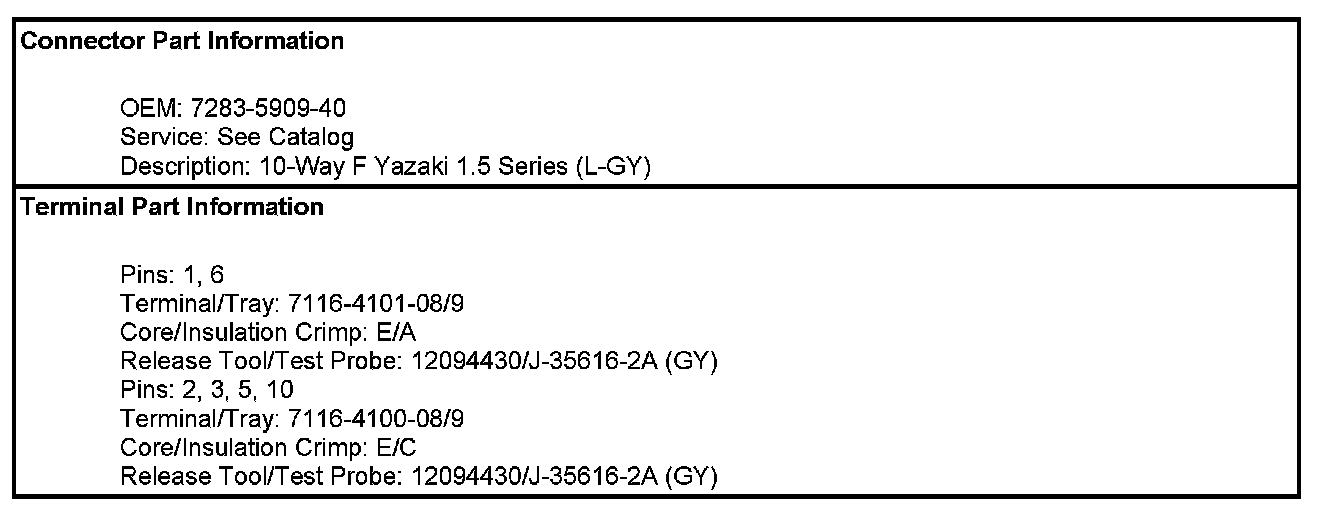

Component Connector End Views - Continued

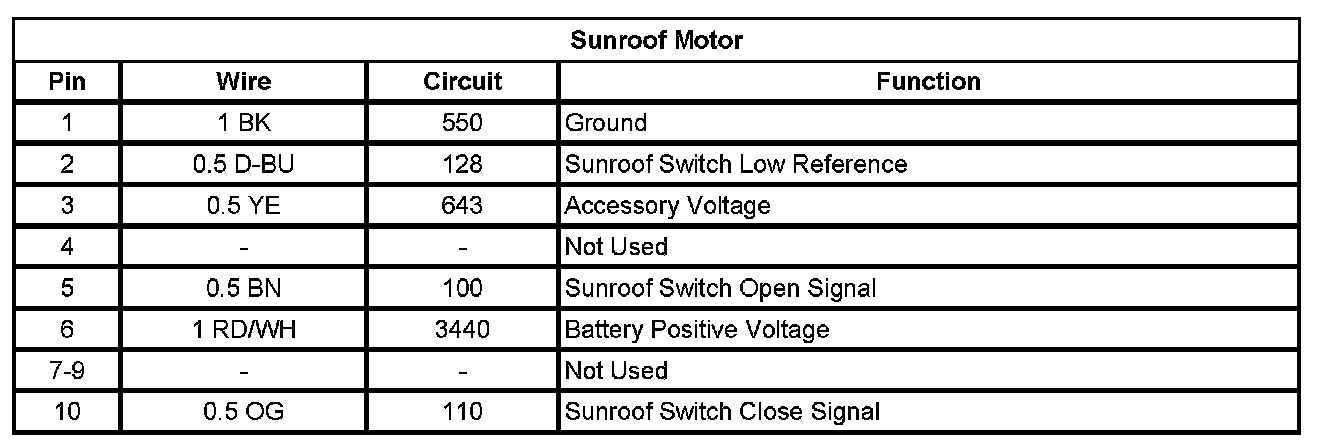

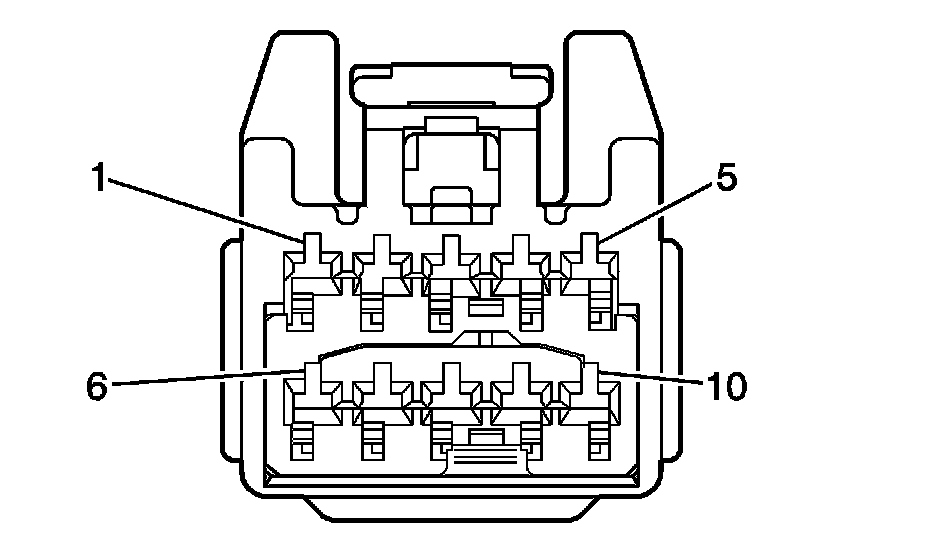

Sunroof Motor
