Control Module, A/T

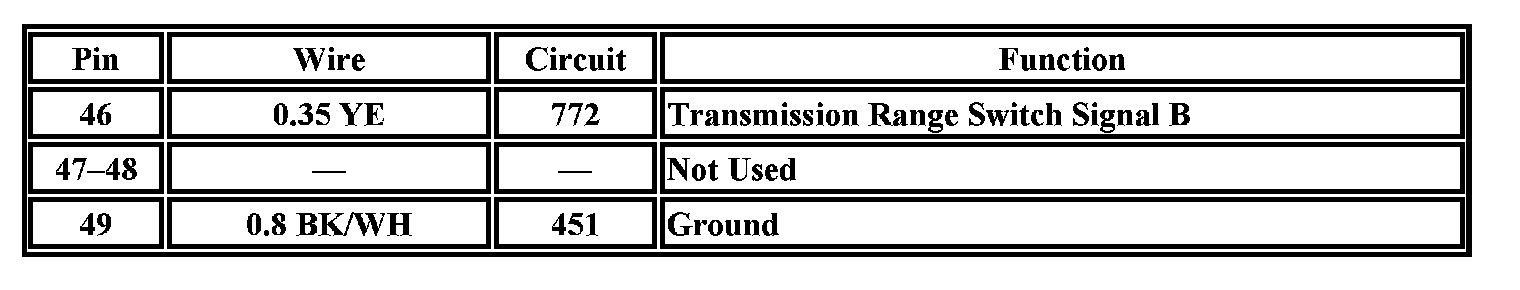

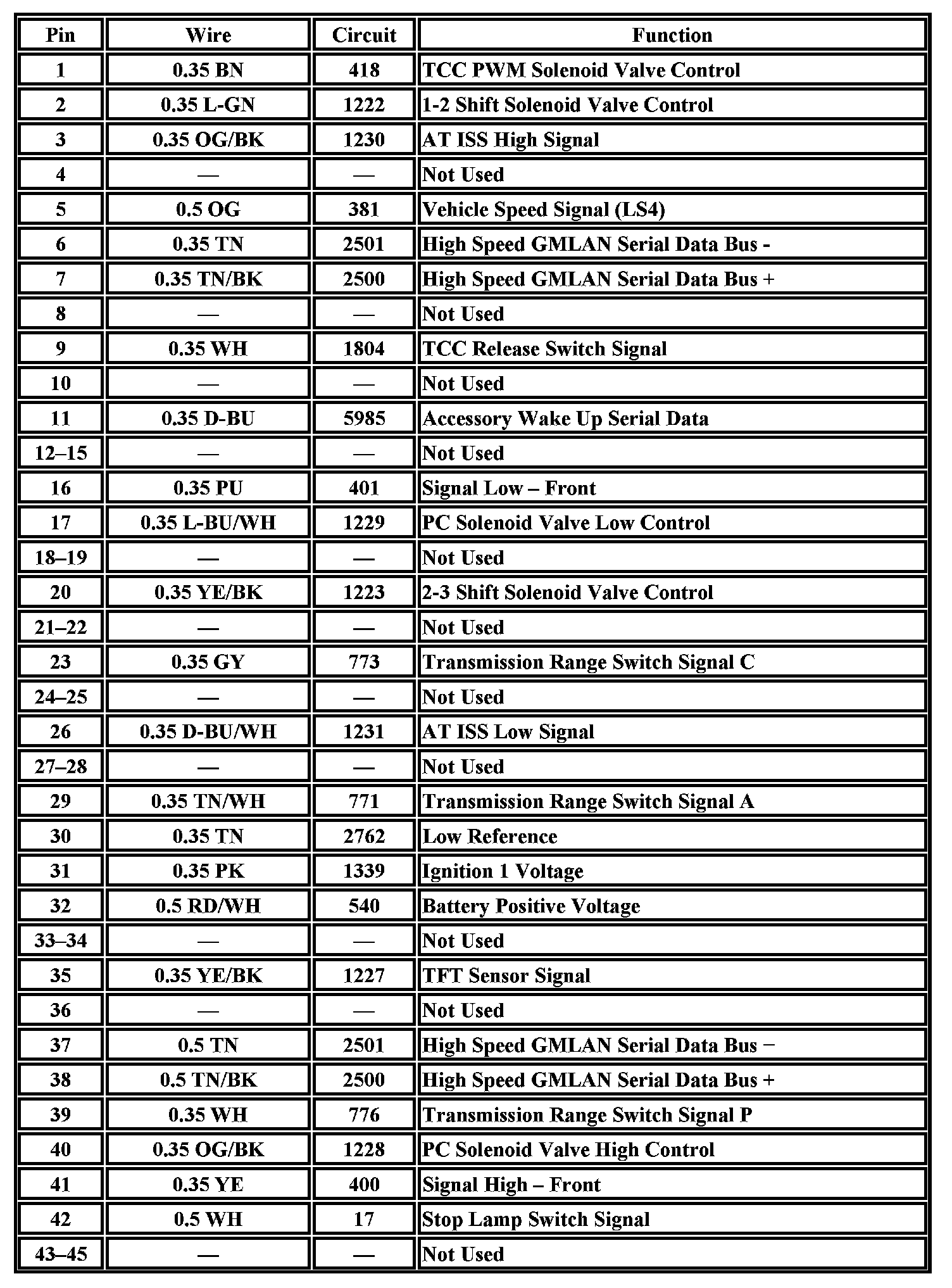

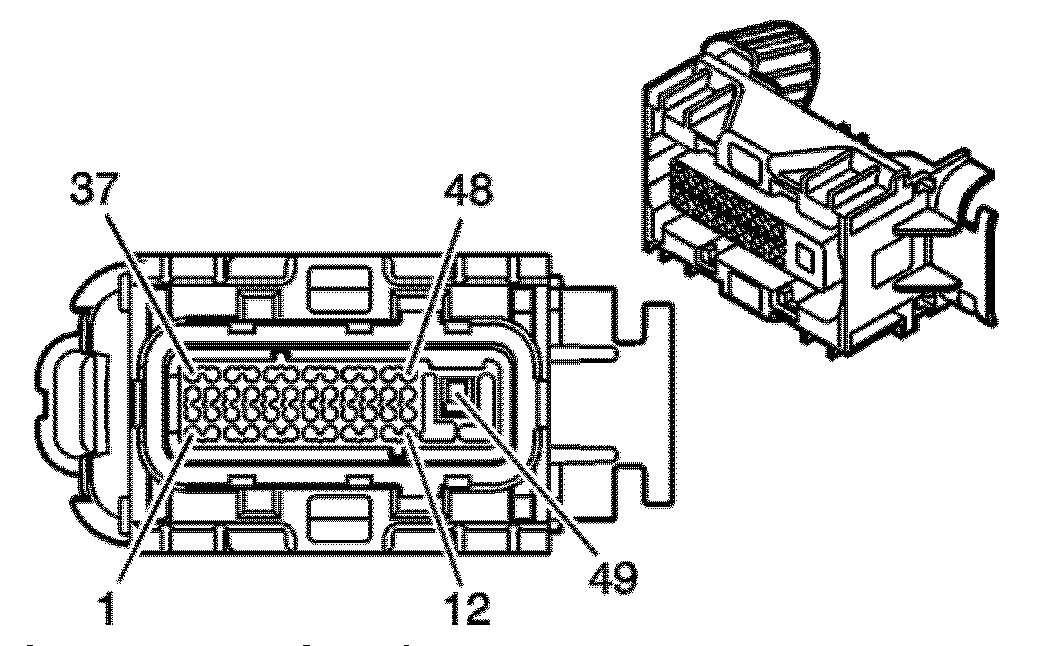

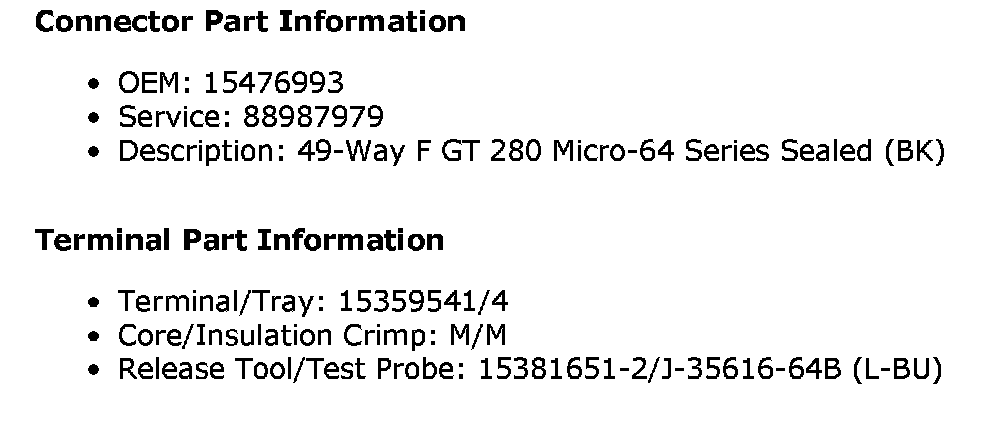

Transmission Control Module (TCM)
Left side of the engine compartment in with the air cleaner.
