Torque Converter Clutch, A/T

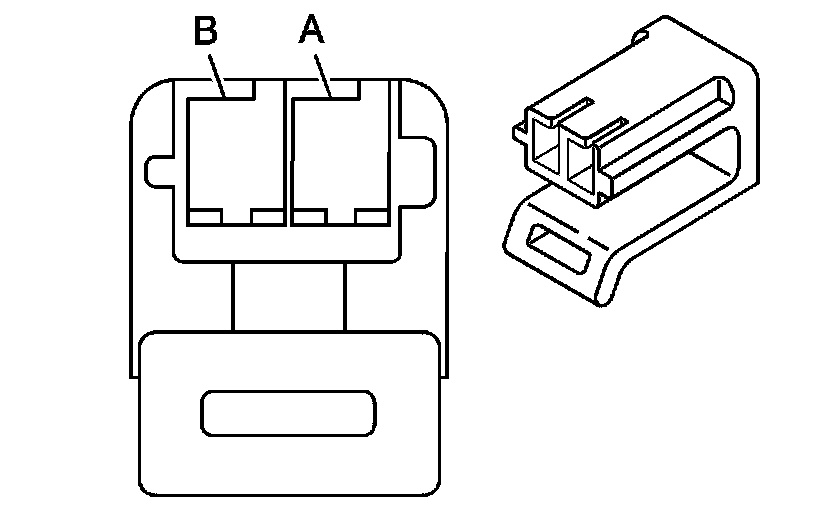

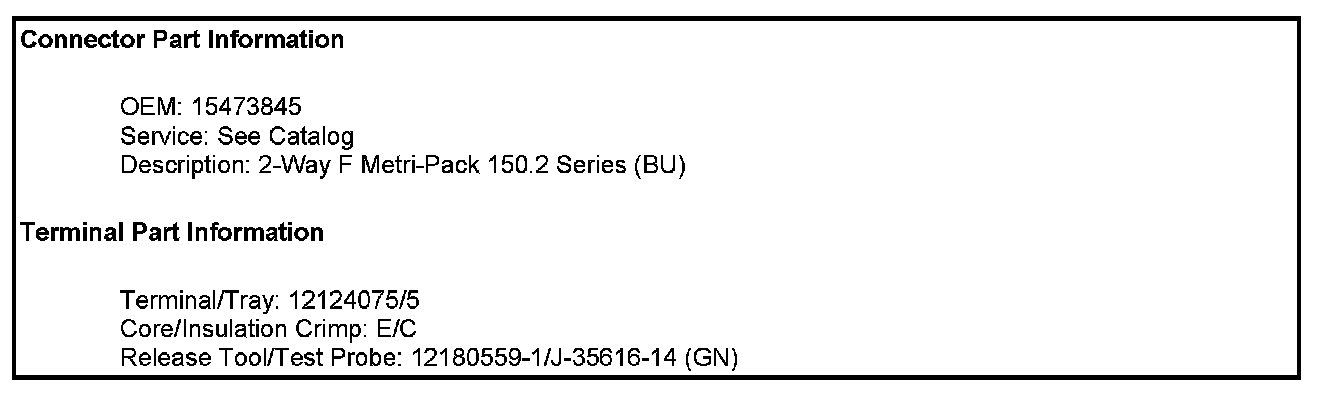

Component Connector End Views - Continued

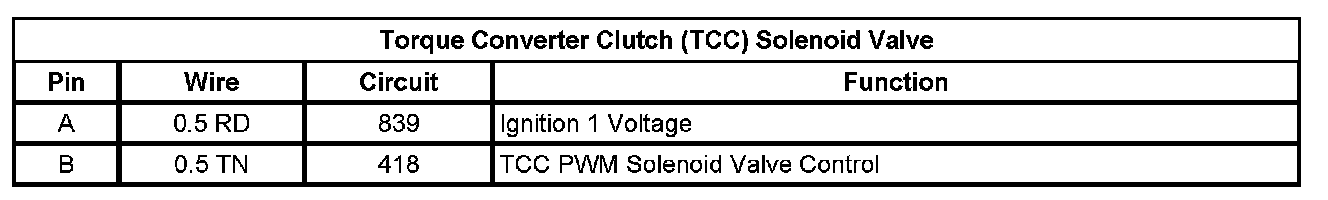

Torque Converter Clutch (TCC) Solenoid Valve
