Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission and Drivetrain
>>
Transmission Mode Switch, A/T
Transmission Mode Switch, A/T

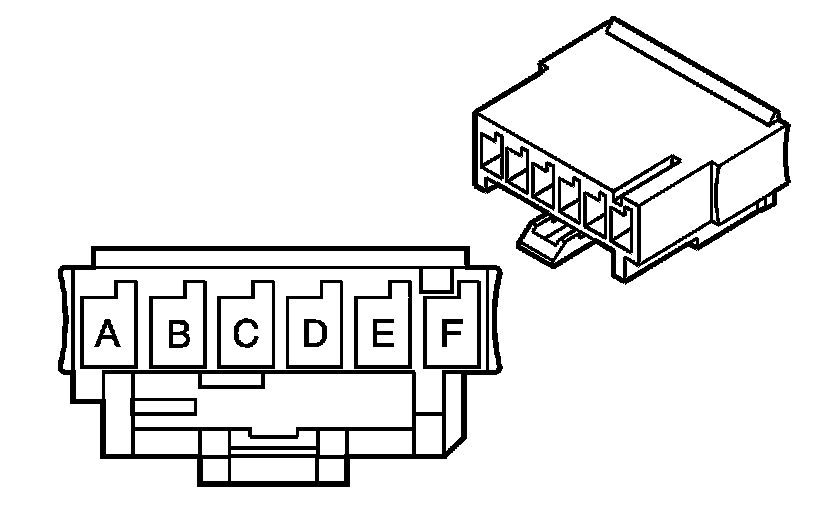

Component Connector End Views

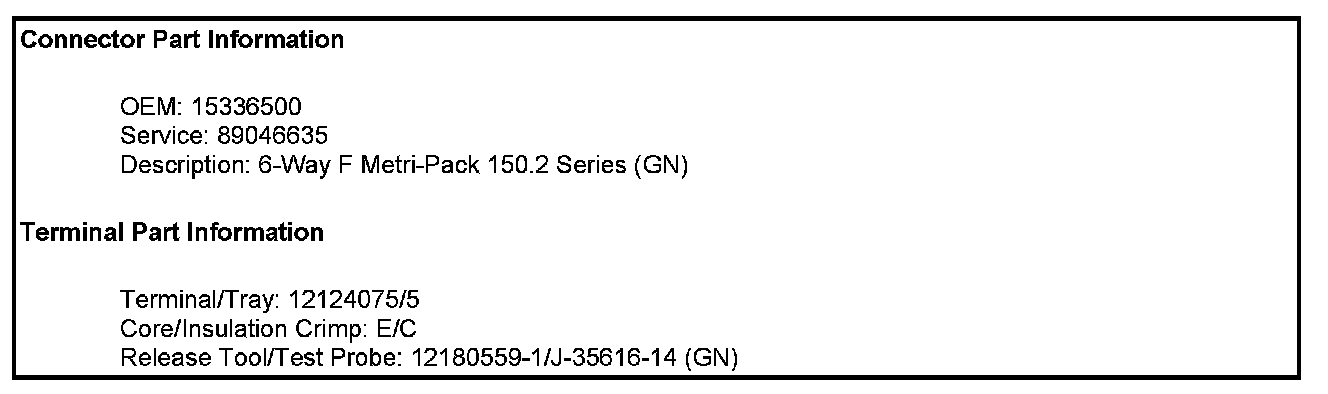

Automatic Transmission Internal Mode Switch (IMS)

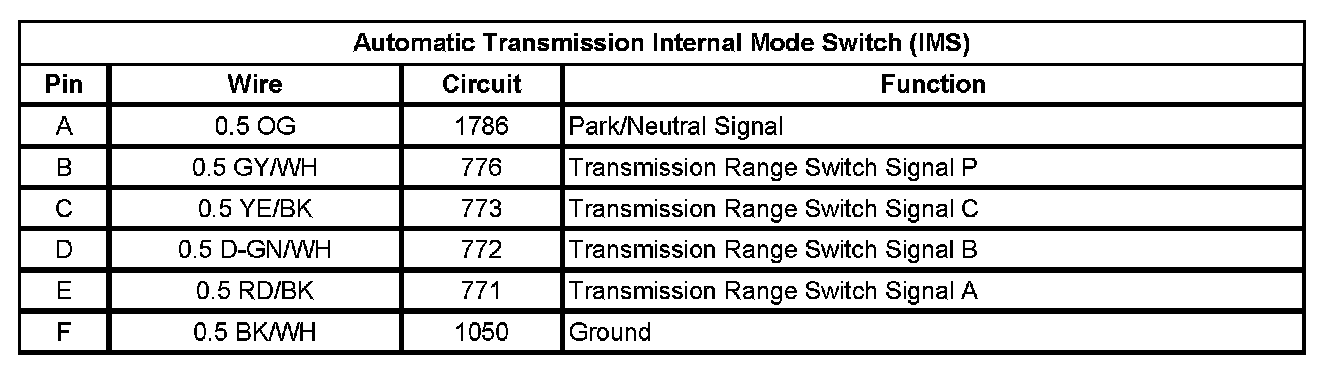

Internal Mode Switch (IMS):
