Variable Valve Timing Solenoid
Variable Valve Timing Solenoid

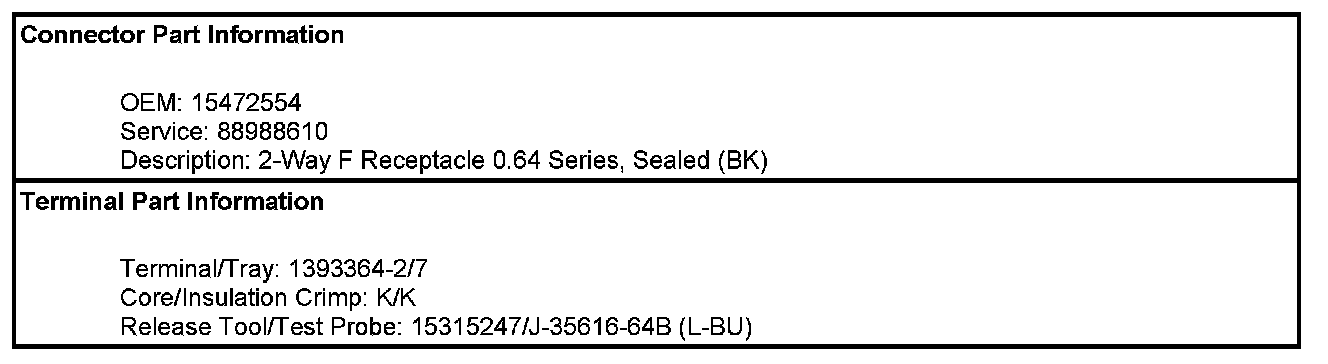

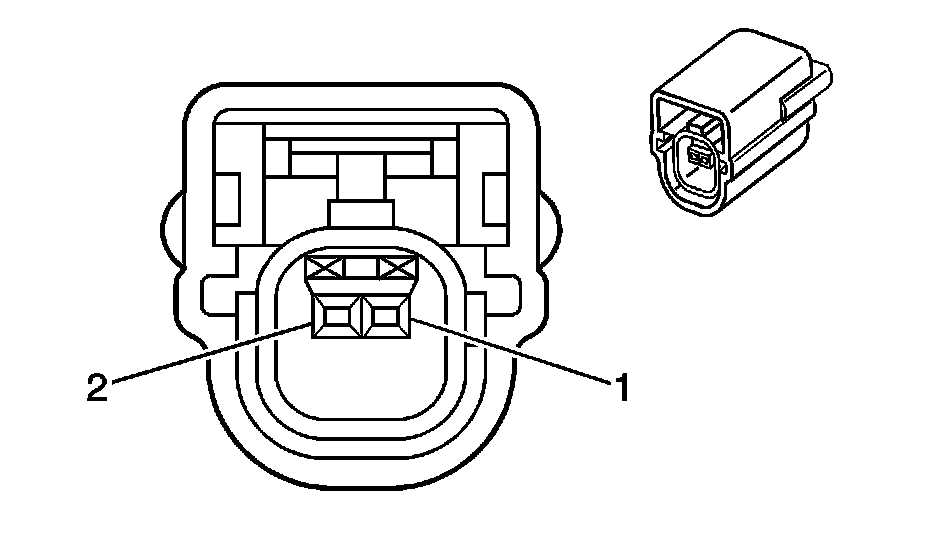

Component Connector End Views

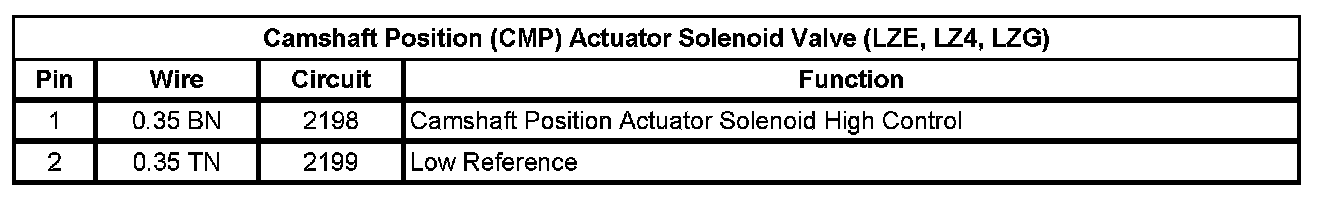

Camshaft
Position (CMP) Actuator Solenoid Valve (LZE, LZ4, LZG)
