Home >> Chevrolet >> 2008 >> Impala V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Washer Fluid Level Switch

Washer Fluid Level Switch



Component Connector End Views - Continued

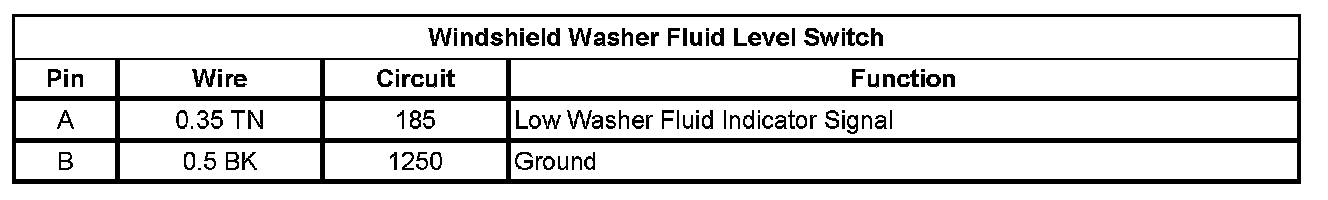

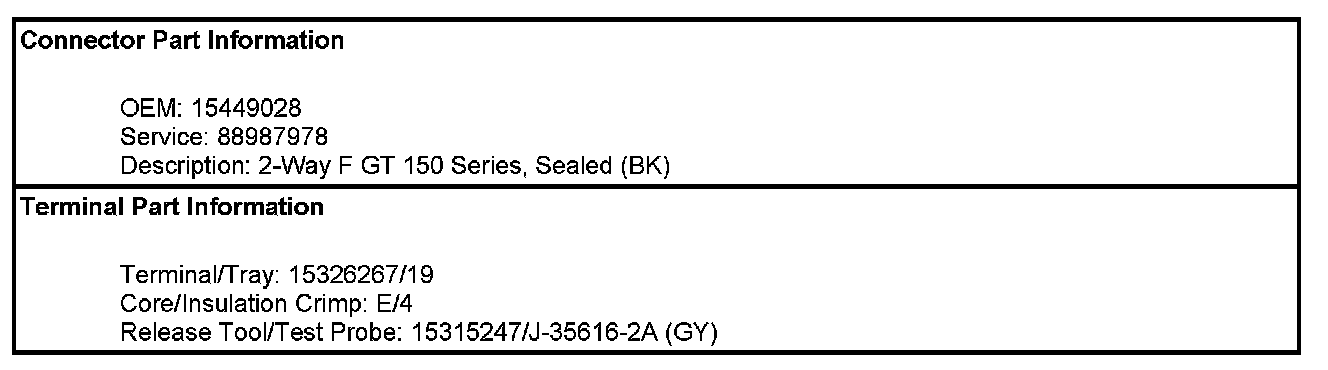

Windshield Washer Fluid Level Switch
