Chevrolet
>>
2008
>>
Impala V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Pump
Windshield Washer Pump

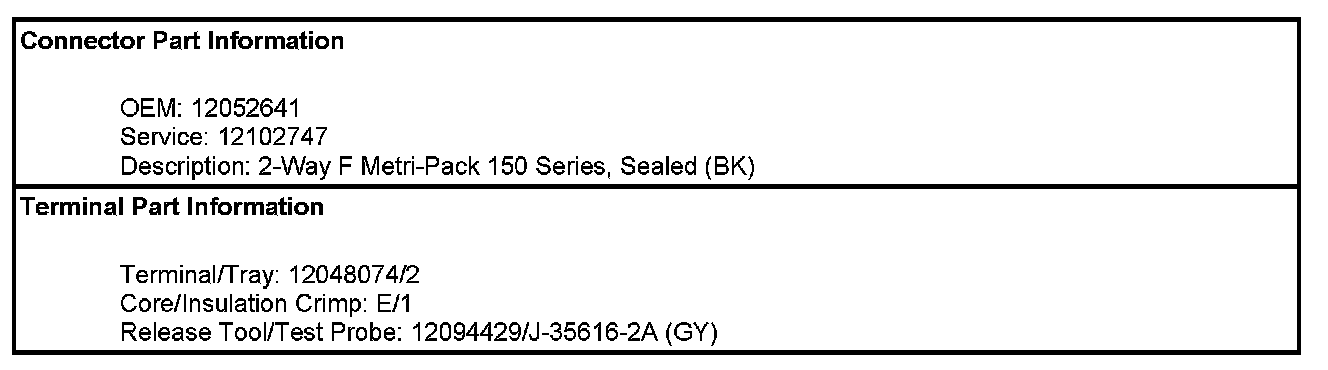

Component Connector End Views - Continued

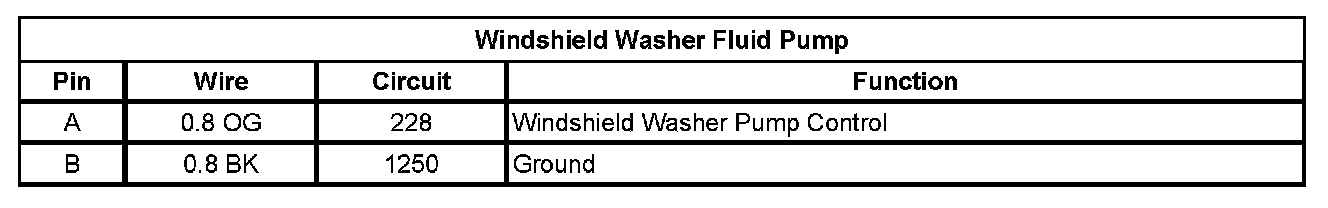

Windshield Washer Fluid Pump
