Seat Temperature Element
Seat Temperature Element
Heated/Cooled Seat Schematics

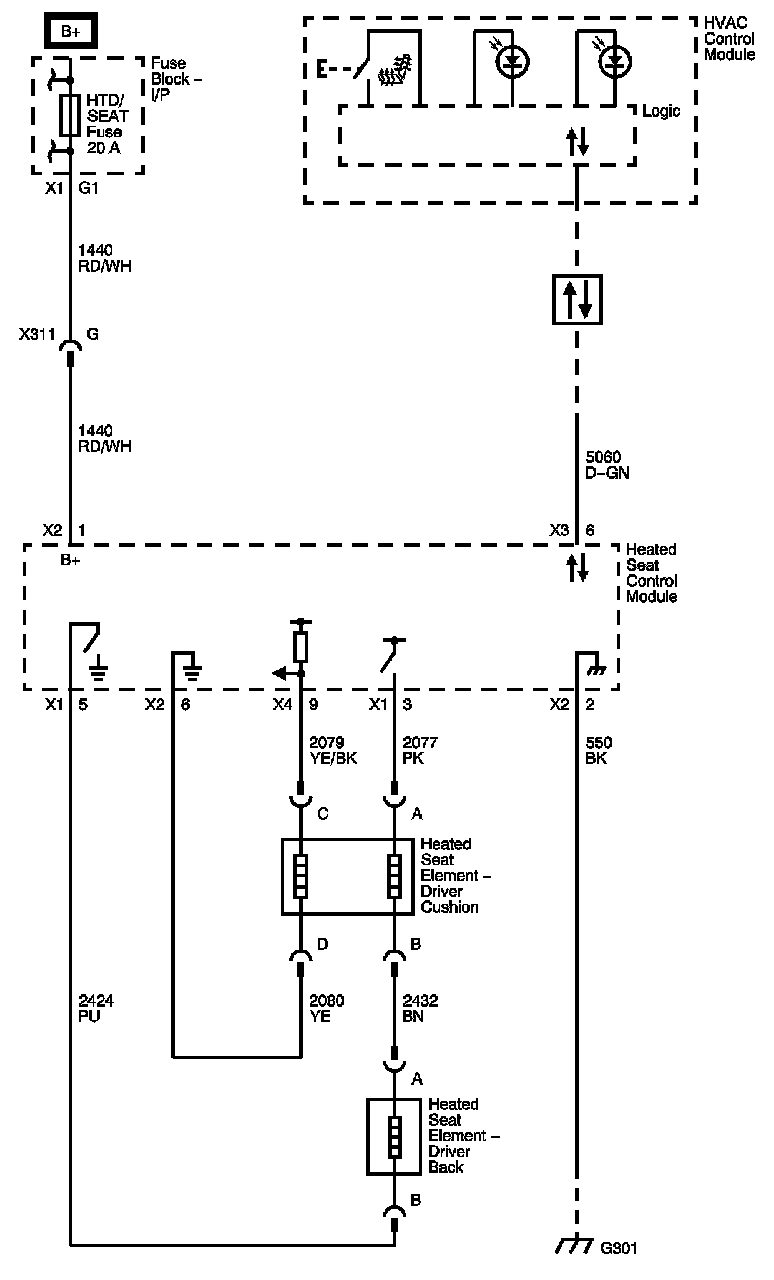

Driver

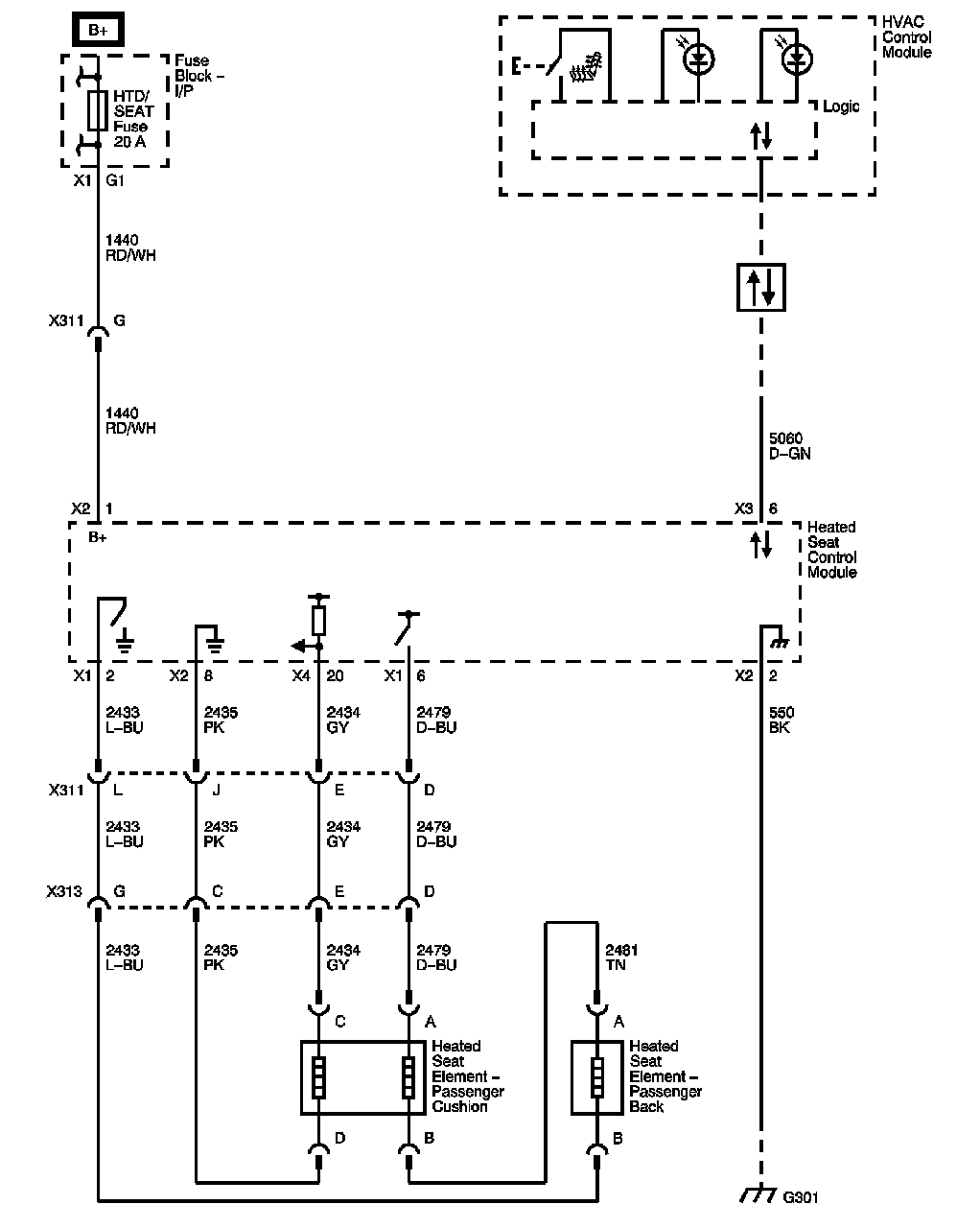

Passenger
Locations:
The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations.
