Engine Mount Bracket Replacement

Engine Mount Bracket Replacement

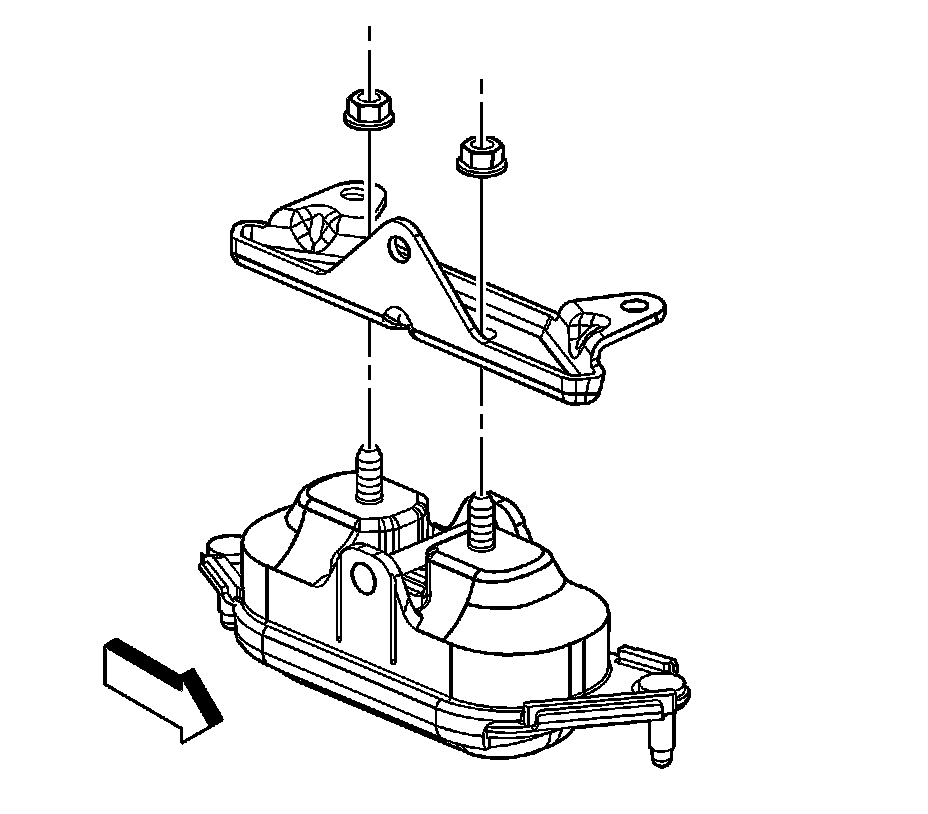

Removal Procedure





1. Remove the engine mount. Refer to Engine Mount Replacement (Service and Repair) .
2. Remove the engine mount bracket to mount nuts.
3. Remove the engine mount bracket.



Installation Procedure





1. Install the engine mount bracket to the mount.

Notice: Refer to Fastener Notice .

2. Install the engine mount bracket to mount nuts.

Tighten the nuts to 50 N.m (37 lb ft).

3. Install the engine mount. Refer to Engine Mount Replacement (Service and Repair) .
