Engine Mount Strut Bracket Replacement - Right

Engine Mount Strut Bracket Replacement - Right Side

Removal Procedure





1. Drain the cooling system. Refer to Cooling System Draining and Filling (9C1, 9C3 Static Fill) (Service and Repair)Cooling System Draining and Filling (LZE, LZ4, LZG, 9C1, 9C3, GE47716 Fill) (Service and Repair)Cooling System Draining and Filling (LZE, LZ4, LZG, Static Fill) (Service and Repair) .
2. Remove the engine mount strut. Refer to Engine Mount Strut Replacement (Service and Repair) .
3. Remove the heater inlet and outlet hose clamp nuts from the throttle body studs.
4. Reposition the heater inlet and outlet hose clamps at the pipes.
5. Remove the heater inlet and outlet hoses from the engine pipes.
6. Remove the heater inlet and outlet hose clamp from the throttle body studs.
7. Reposition the inlet and outlet hoses.

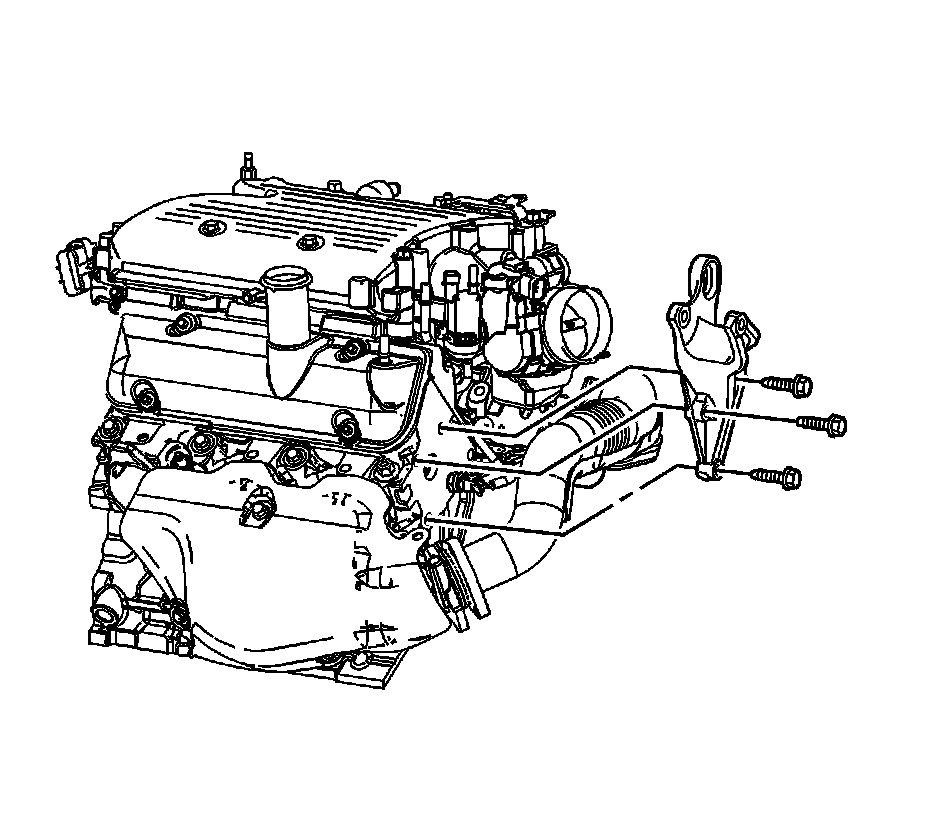

8. Remove the engine mount strut bracket to cylinder head bolts.
9. Remove the engine mount strut bracket.



Installation Procedure





1. Position the engine mount strut bracket to the cylinder head.

Notice: Refer to Fastener Notice .

2. Install the engine mount strut bracket to cylinder head bolts.

Tighten the bolts to 50 N.m (37 lb ft).





3. Position and install the heater inlet and outlet hoses to the engine pipes.
4. Install the heater inlet and outlet hose clamp to the throttle body studs.
5. Position the heater inlet and outlet hose clamps at the pipes.
6. Install the heater inlet and outlet hose clamp nuts to the throttle body studs.

Tighten the nuts to 10 N.m (89 lb ft).

7. Install the engine mount strut. Refer to Engine Mount Strut Replacement (Service and Repair) .
8. Fill the cooling system. Refer to Cooling System Draining and Filling (9C1, 9C3 Static Fill) (Service and Repair)Cooling System Draining and Filling (LZE, LZ4, LZG, 9C1, 9C3, GE47716 Fill) (Service and Repair)Cooling System Draining and Filling (LZE, LZ4, LZG, Static Fill) (Service and Repair) .
