Engine Mount Strut Replacement

Engine Mount Strut Replacement

Removal Procedure

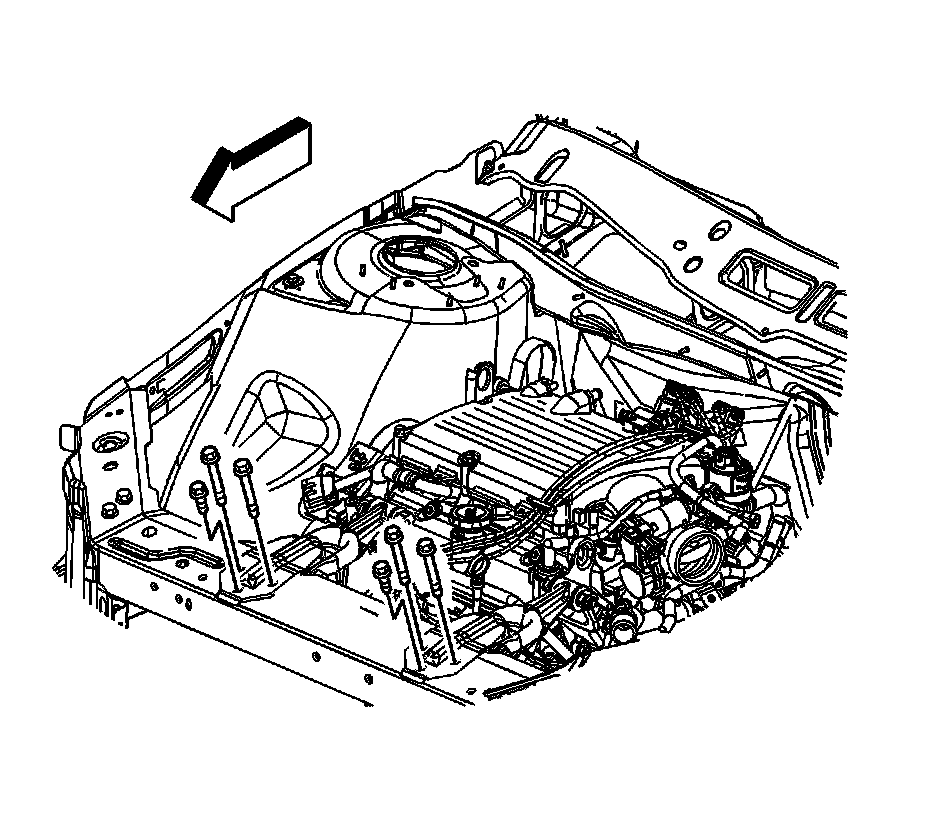

1. Remove the engine mount strut to radiator support bolts.




2. Remove the engine mount strut to engine mount strut bracket bolts/nuts.
3. Remove the engine mount strut(s).



Installation Procedure

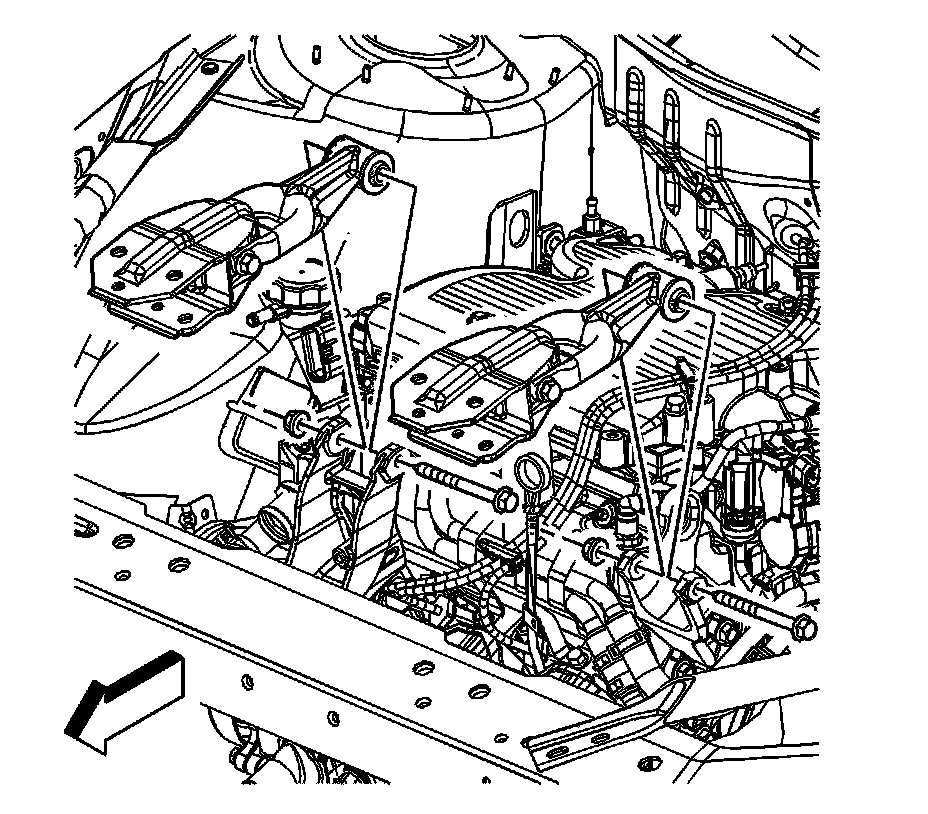

1. Install the engine mount strut(s).
2. Install the engine mount strut to engine mount strut bracket bolts/nuts.




3. On the right side, ensure that the engine harness clamp is sandwiched between the bolt (4) and the strut bracket.

Notice: Refer to Fastener Notice .

4. Tighten the engine mount strut to engine mount strut bracket bolts/nuts.

Tighten the bolts/nuts to 50 N.m (37 lb ft).





5. Install the engine mount strut to radiator support bolts.

Tighten the bolts to 50 N.m (37 lb ft).
