106. Engine Flywheel Installation

Engine Flywheel Installation (Automatic Transmission)

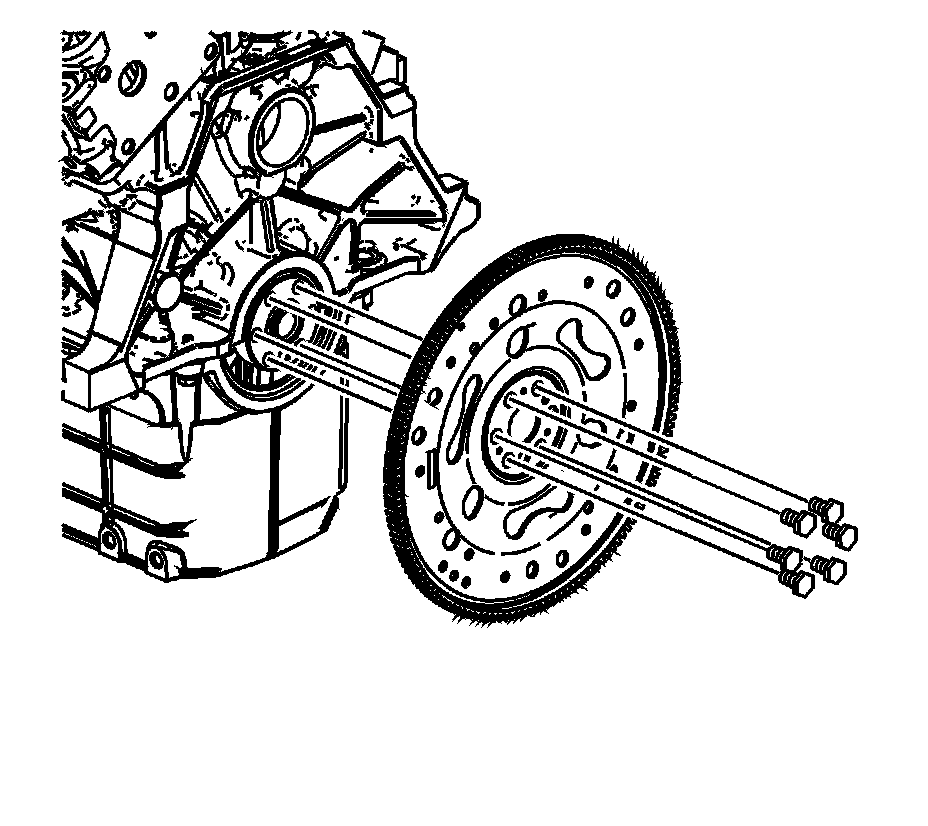

1. Install the flywheel.

Notice: Refer to Fastener Notice .

2. Install the flywheel bolts.

Tighten the flywheel bolts to 70 N.m (52 lb ft).
