18. Valve Lifter Oil Manifold Removal

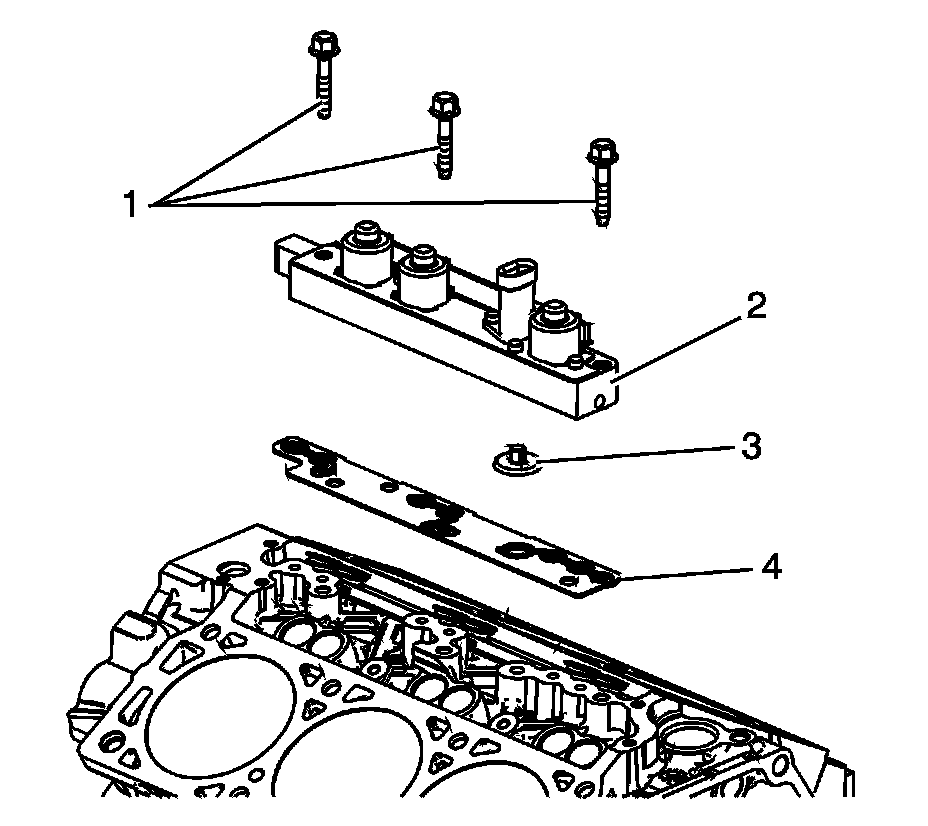

Valve Lifter Oil Manifold Removal






Important: Do not allow dirt or debris to enter the oil passages of the manifold. Plug as required.


1. Remove the valve lifter oil manifold bolts (1).
2. Remove the valve lifter oil manifold (2).
3. Remove and discard the LOMA oil manifold filter (3).
4. Remove and discard the valve lifter oil manifold gasket (4).
