25. Oil Pump Removal

Oil Pump Removal

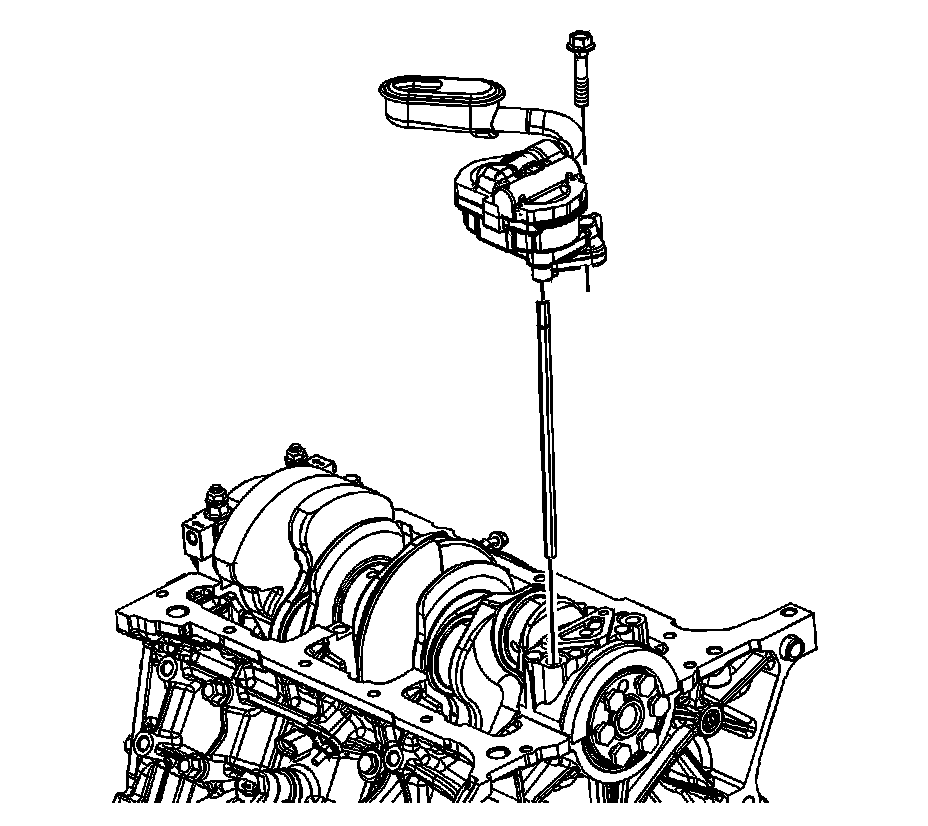

1. Remove the oil pump bolt.
2. Remove the oil pump and oil pump drive shaft.

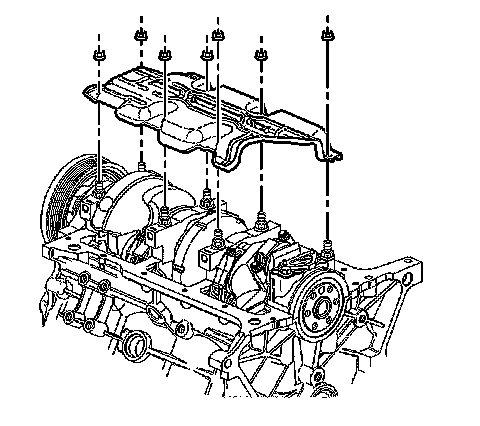

3. Remove the crankshaft oil deflector nuts.
4. Remove the crankshaft oil deflector.
