36. Camshaft Bearing Removal

Camshaft Bearing Removal

Tools Required

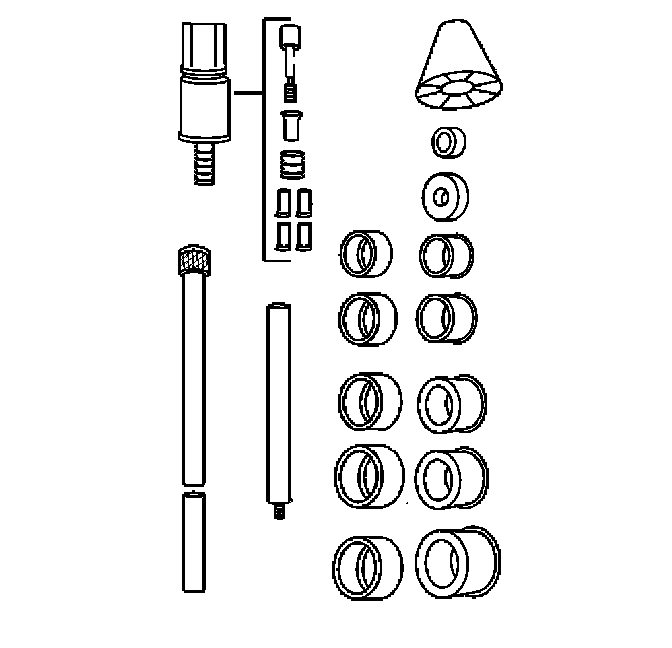

J 33049 Camshaft Bearing Service Set





1. Select the expander assembly and driving washer.
2. Assemble the J 33049 .

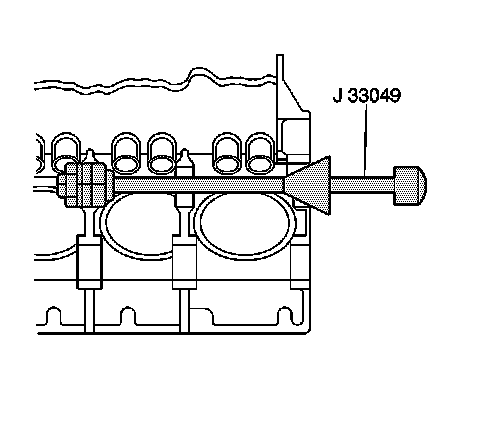

3. Drive out the camshaft bearings. Use the J 33049 .
