50. Camshaft Position Actuator Magnet Cleaning and Inspection

Camshaft Position Actuator Magnet Cleaning and Inspection

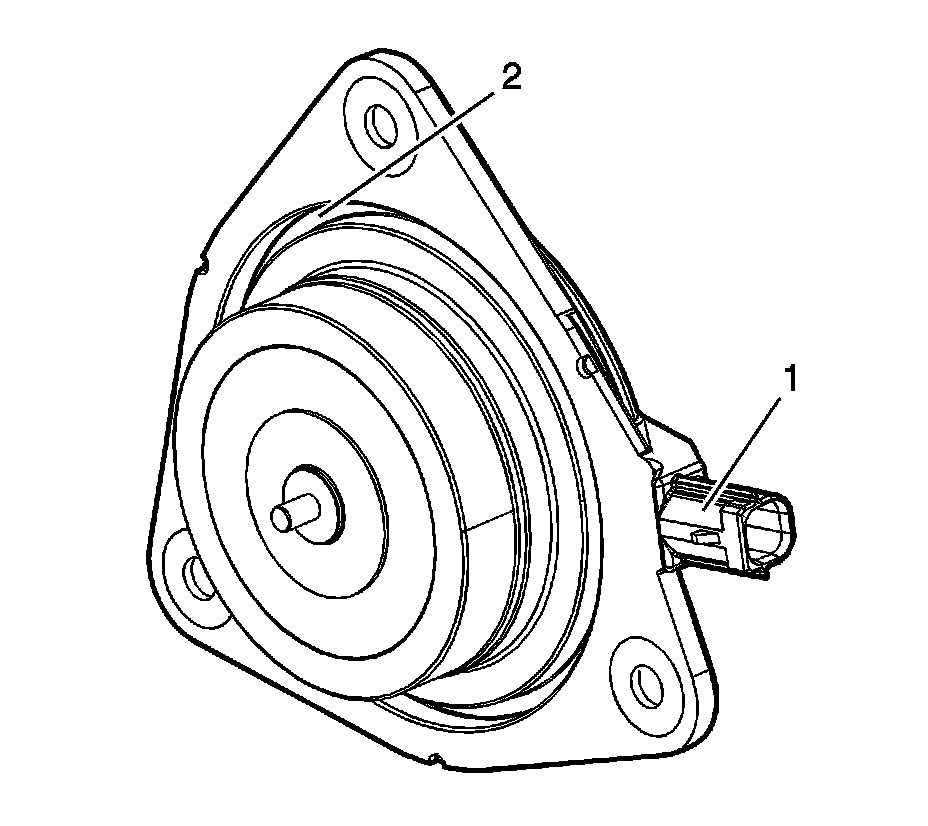

1. Inspect the camshaft position actuator magnet for the following conditions:

* The camshaft position actuator magnet wiring connector (1) for damage.
* The camshaft position actuator magnet O-ring seal and sealing area (2) for damage.

2. Repair or replace the camshaft position actuator housing and/or components as necessary.
