Air Conditioning (A/C) Diagnostics - Pressure Zone A

Air Conditioning (A/C) Diagnostics - Pressure Zone A

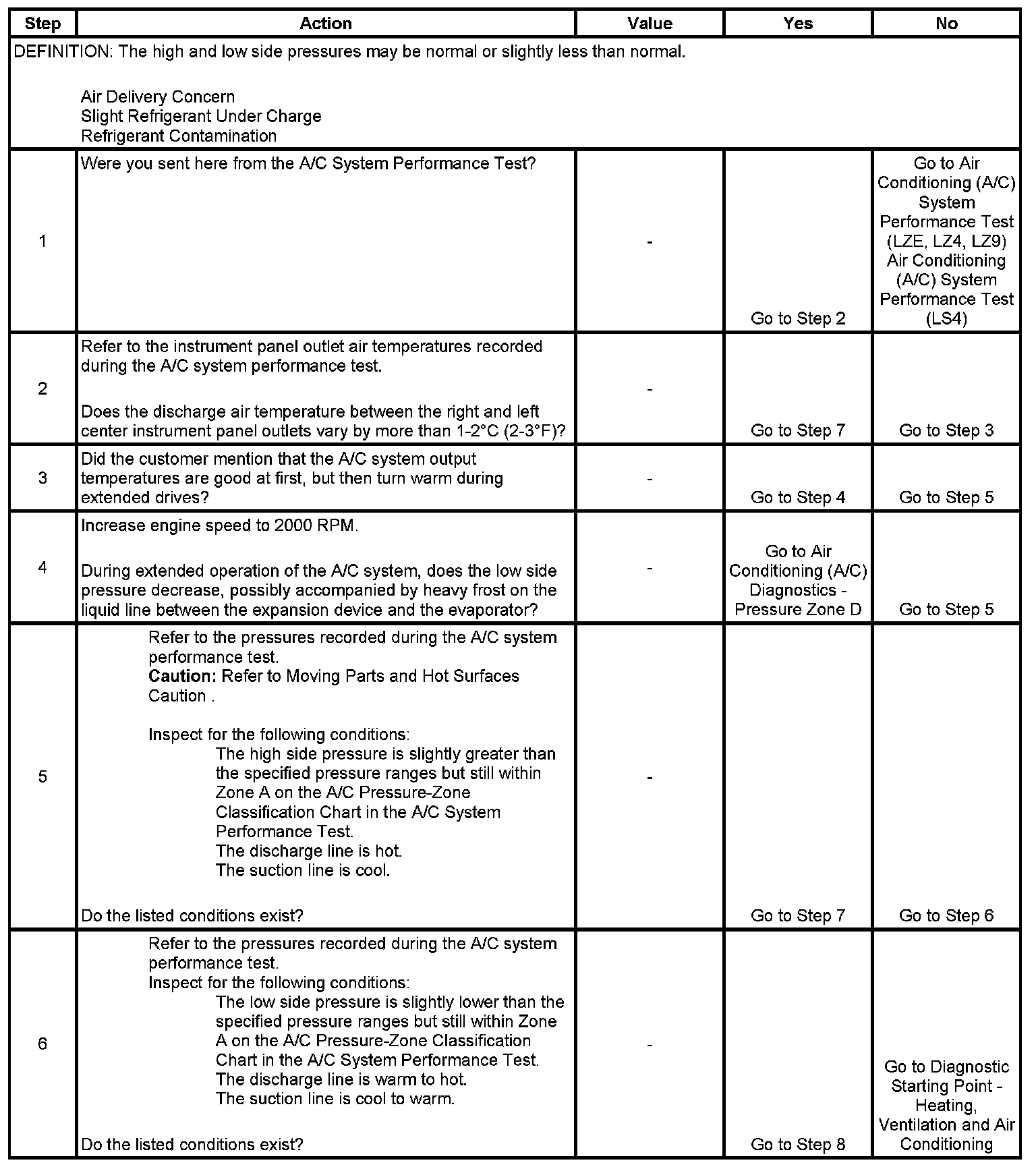

Step 1 - Step 6:

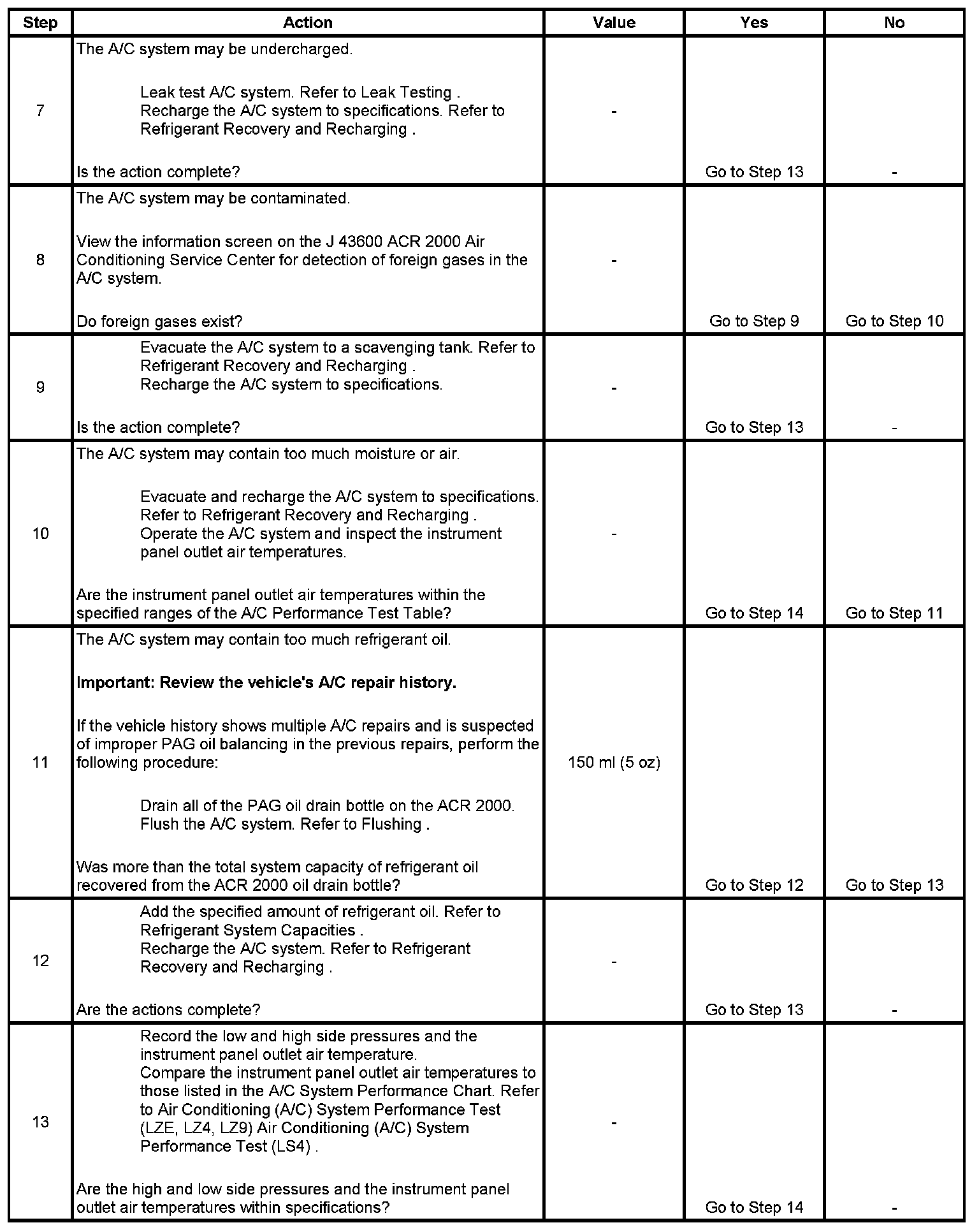

Step 7 - Step 13:

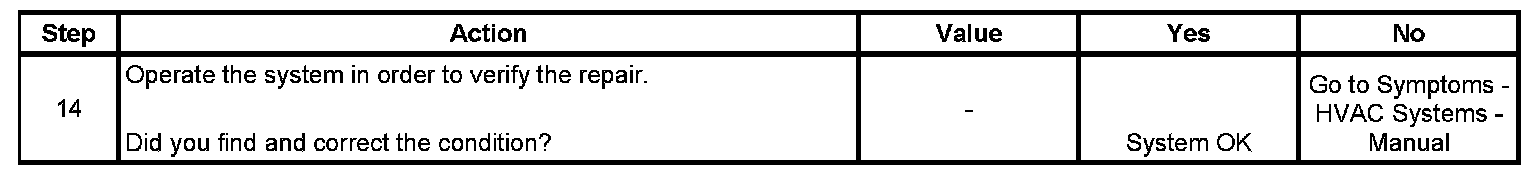

Step 14:
