Noise Diagnosis - HVAC Module
Noise Diagnosis - HVAC Module
Noise Diagnosis - HVAC Module

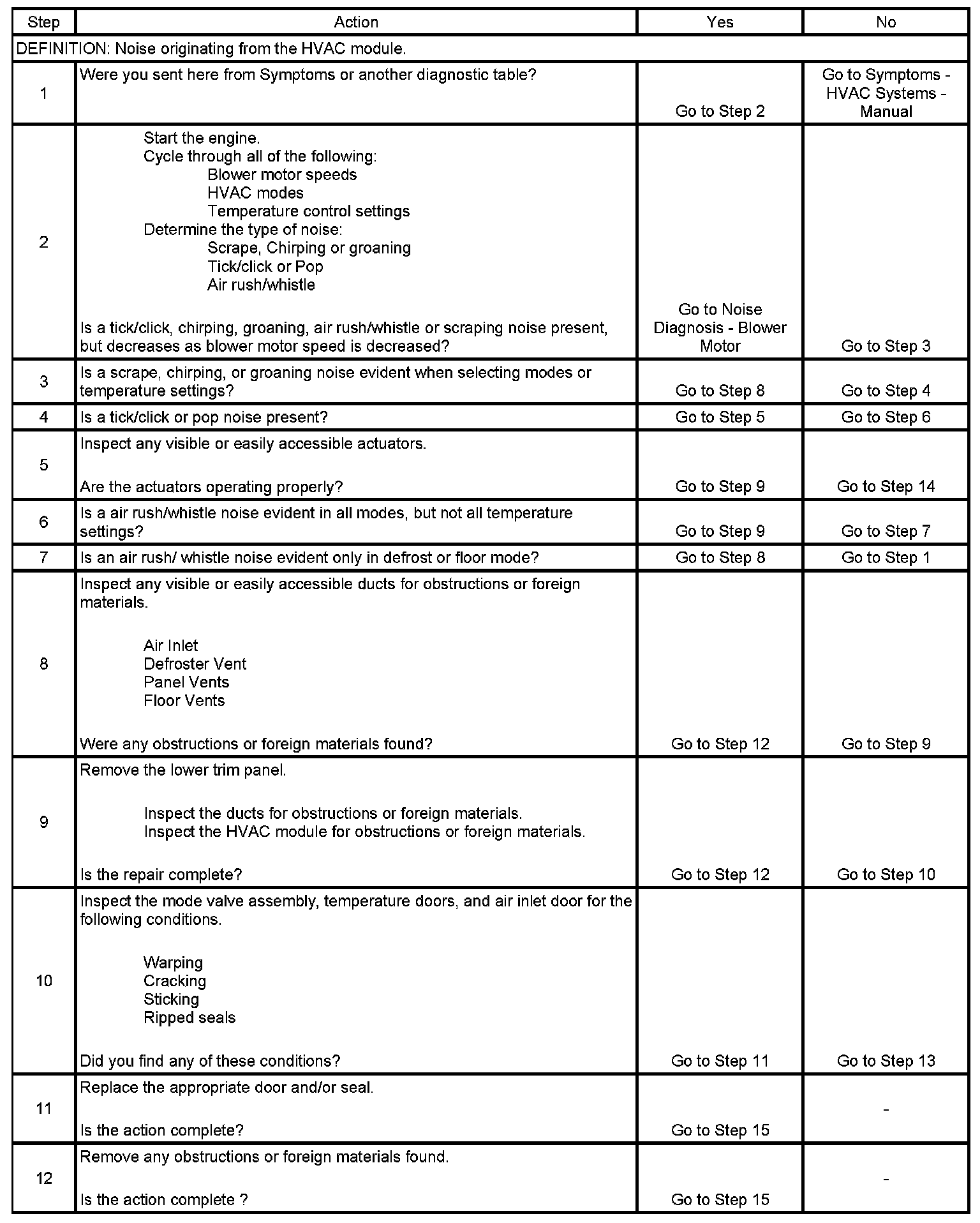

Step 1 - Step 12:

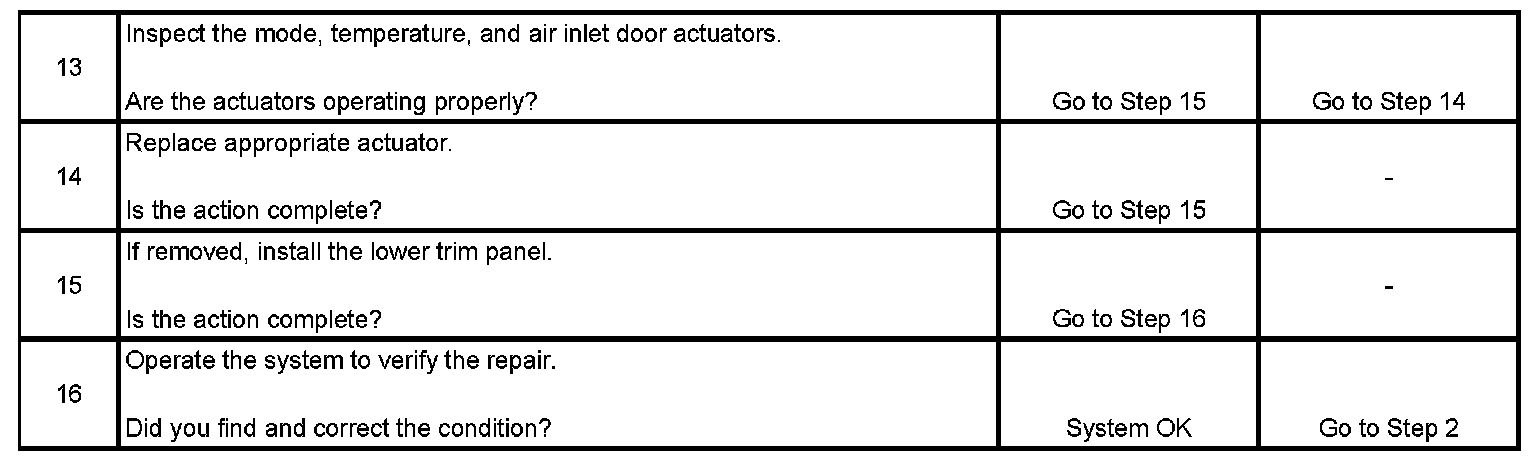

Step 13 - Step 16:
