Instrument Cluster / Carrier: Diagrams



Component Connector End Views - Continued

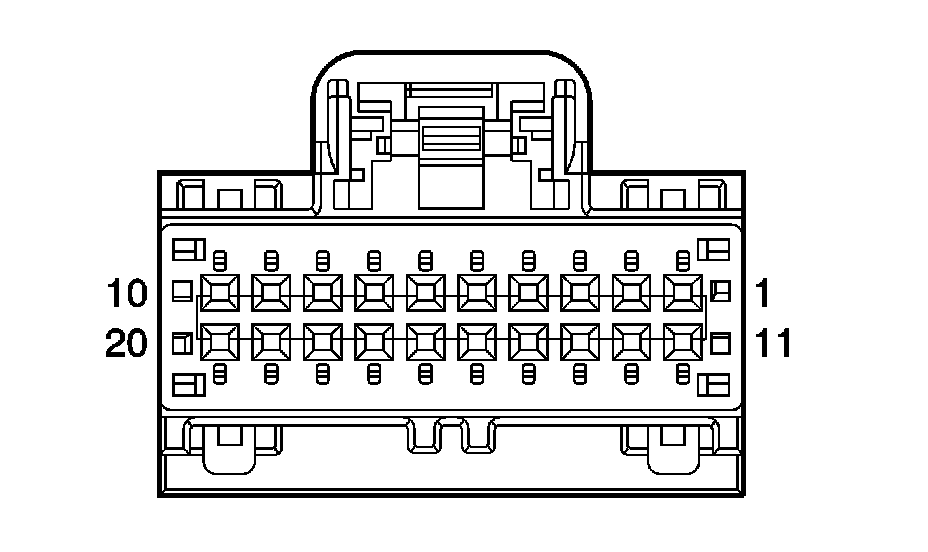

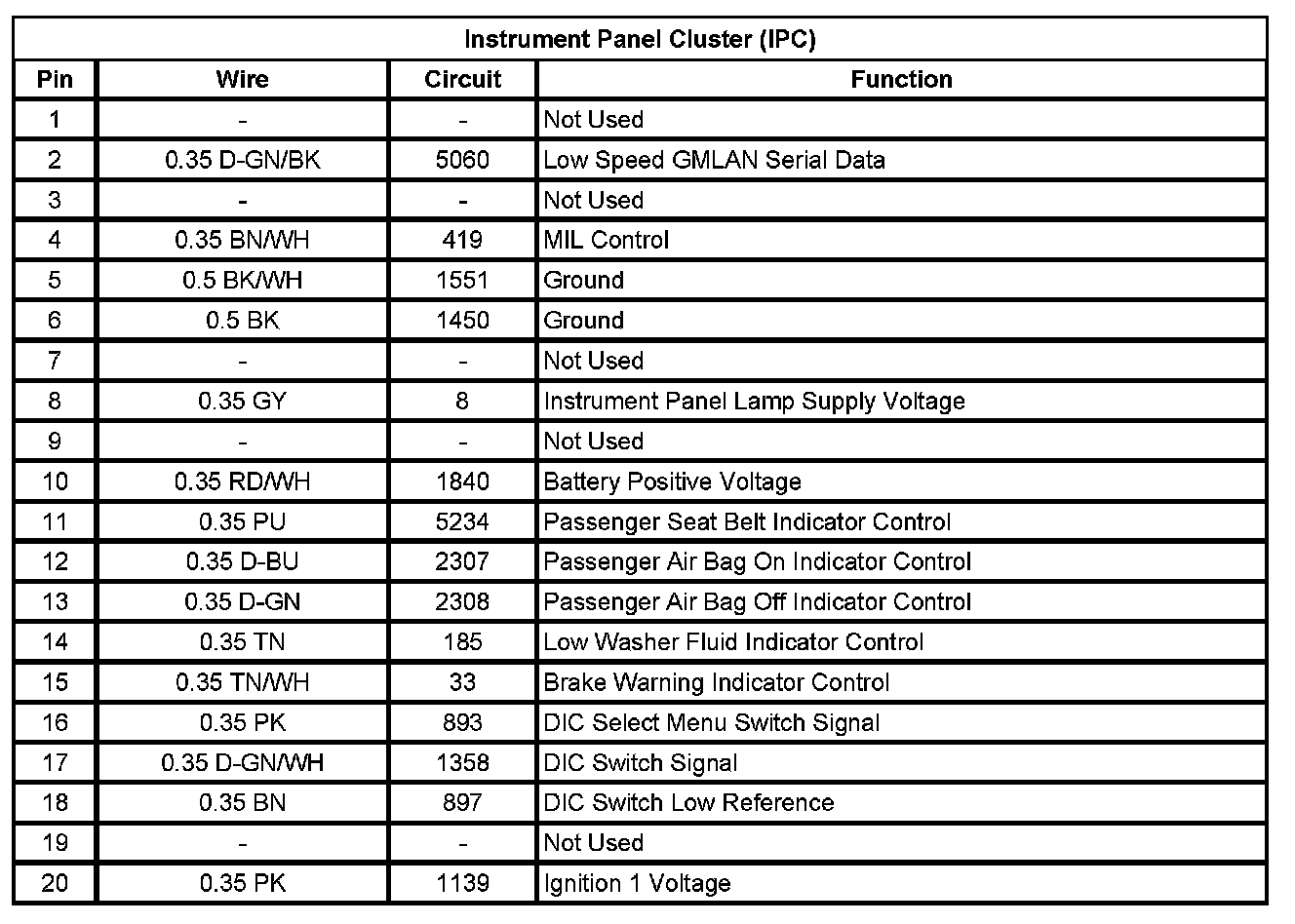

Instrument Panel Cluster (IPC)
