Diesel Data
: Automotive Repair
Home
>>
Chevrolet
>>
2008
>>
Impala V6-3.9L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Connector Views
Connector Views

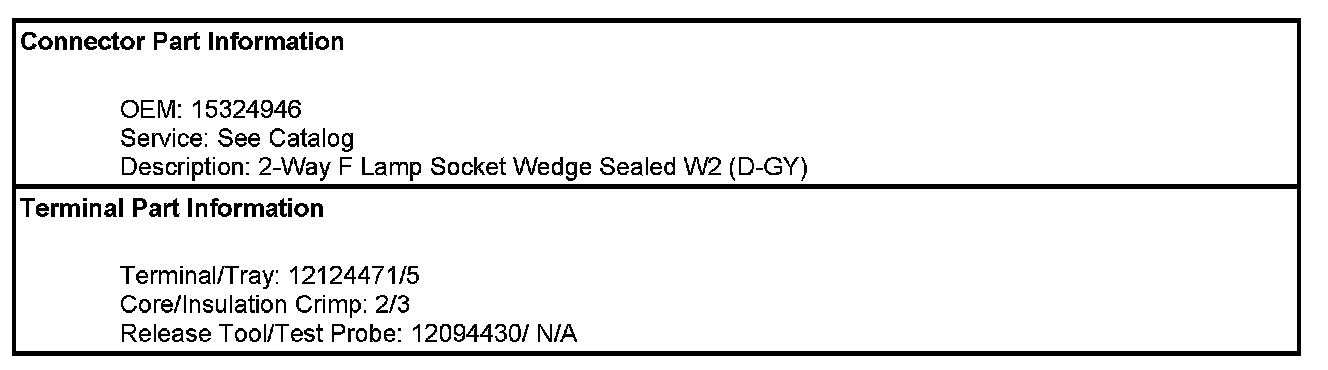

Component Connector End Views

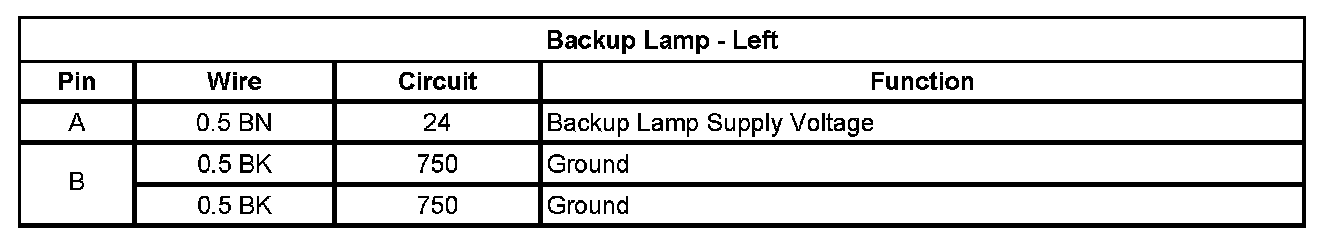

Backup Lamp
- Left

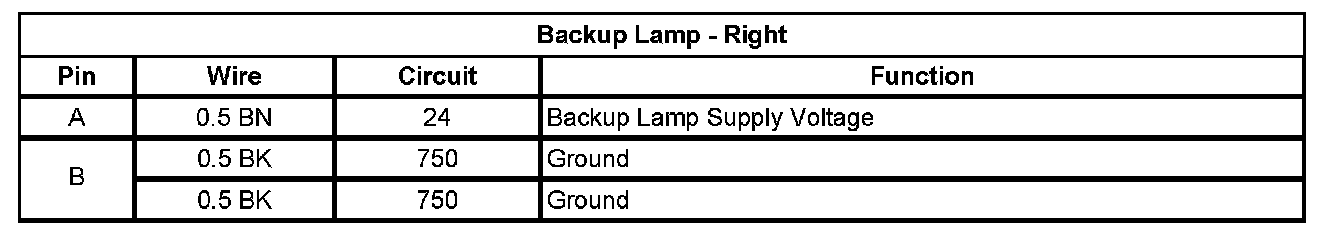

Backup Lamp
- Right
