Evaporative Emissions Hose: Service and Repair

Evaporative Emission Hoses/Pipes Replacement - Engine/Chassis

Removal Procedure

Important: Clean the evaporative emission (EVAP) connections and surrounding areas prior to disconnecting the line in order the avoid possible system contamination.

1. Remove the air cleaner outlet duct.
2. Remove the brake master cylinder and reposition.

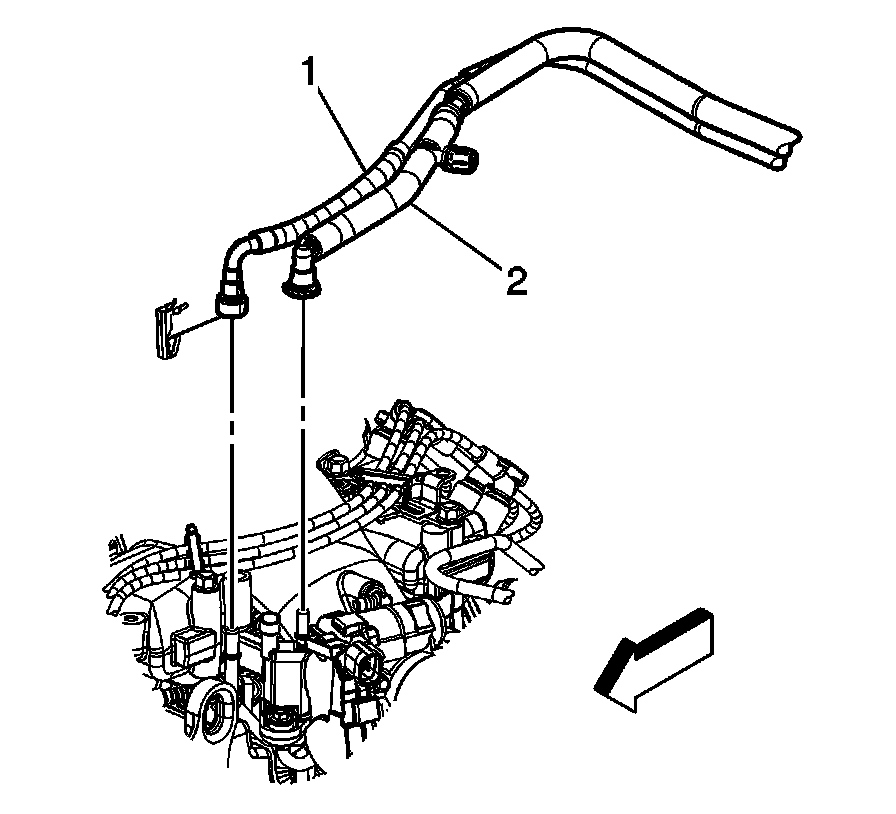

3. Disconnect the EVAP (2) line from the purge solenoid.

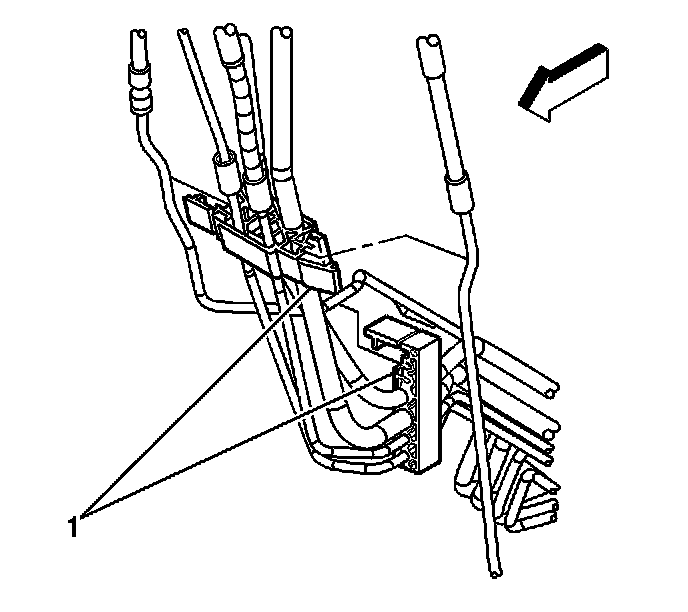

4. Open the fuel/brake pipe retainers (1).
5. Remove the EVAP line from the fuel/brake pipe retainers (1).
6. Raise and support the vehicle. Refer to Vehicle Lifting.

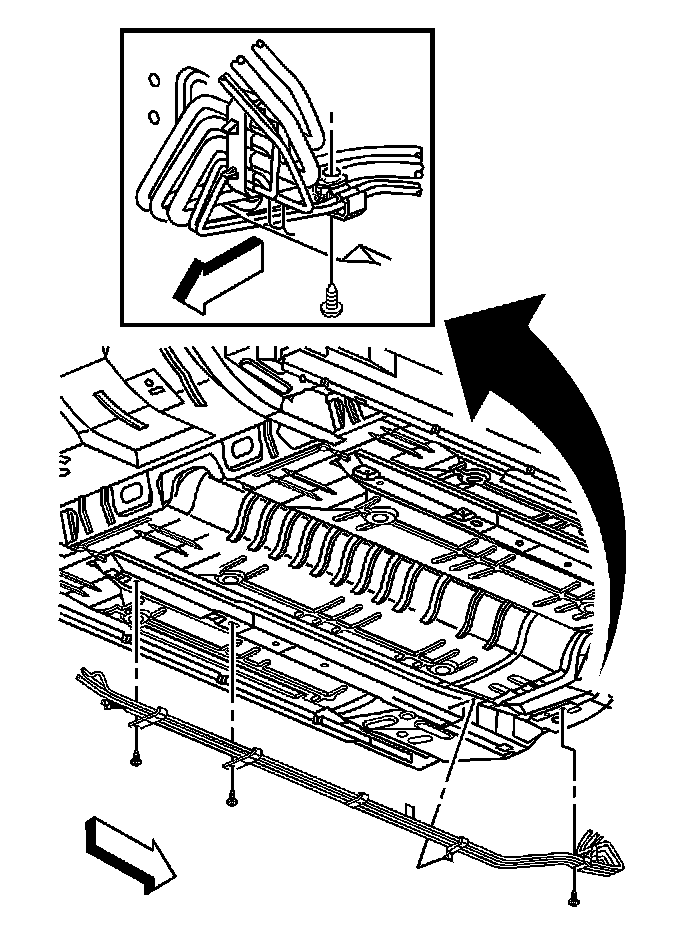

7. Remove the fuel/brake line retainer bolt.
8. Remove the EVAP line from the retainer.

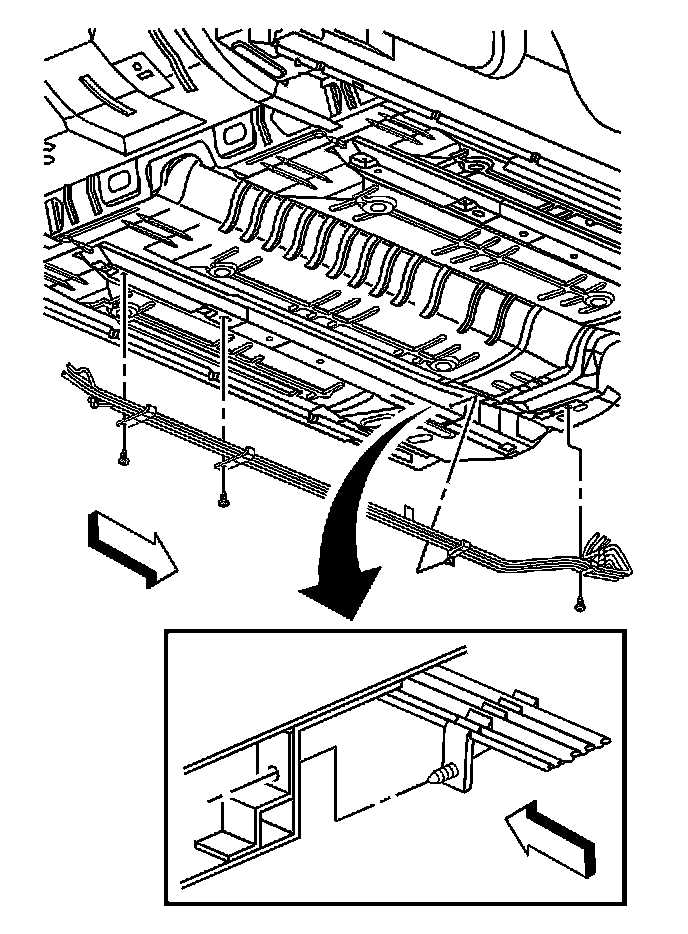

9. Remove the fuel/brake line push in retainer from the underbody.
10. Remove the EVAP line from the retainer.

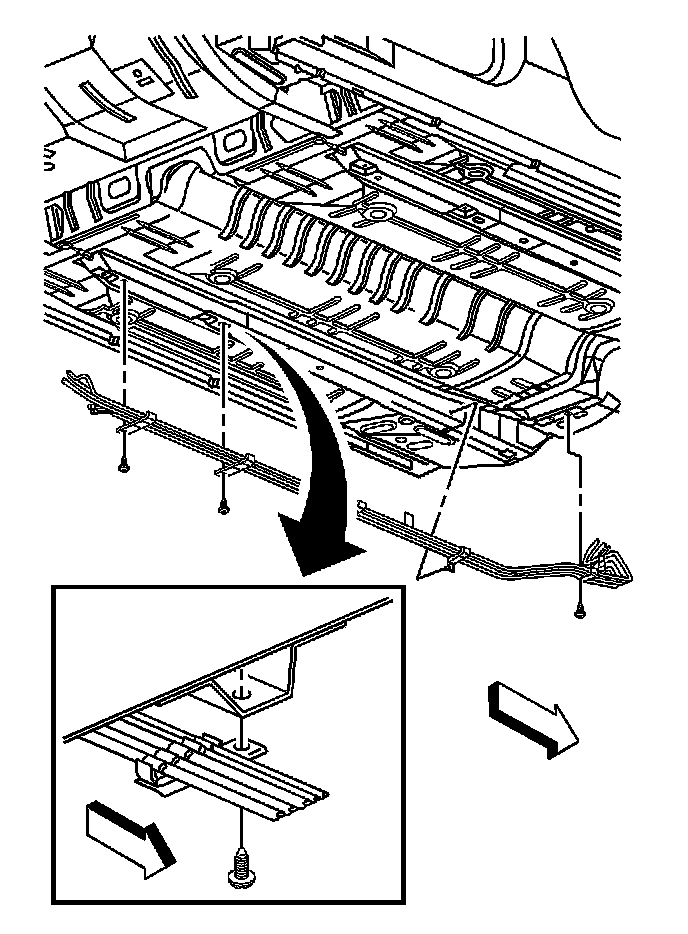

11. Remove the fuel/brake line retainer bolts.
12. Remove the EVAP line from the retainer.

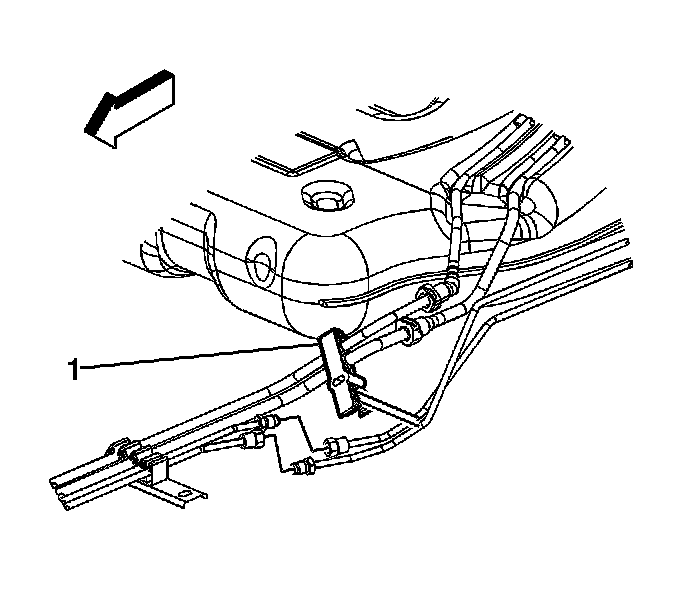

13. Open the fuel/brake line retainer (1).
14. Remove the EVAP line from the retainer.

15. Disconnect the EVAP (4) line from the fuel tank EVAP line (1).
16. Remove the EVAP line.

Installation Procedure

1. Position the EVAP line.
2. Connect the EVAP (4) line to the fuel tank EVAP line (1).

3. Install the EVAP line to the retainer.
4. Close the fuel/brake line retainer (1).

5. Install the EVAP line to the retainer.

Notice: Refer to Fastener Notice.

6. Install the fuel/brake line retainer bolts.

Tighten the bolts to 10 N.m (89 lb in).

7. Install the EVAP line to the retainer.
8. Install the fuel/brake line push in retainer to the underbody.

9. Install the EVAP line to the retainer.
10. Install the fuel/brake line retainer bolt.

Tighten the bolt to 10 N.m (89 lb in).

11. Lower the vehicle.

12. Install the EVAP line to the fuel/brake pipe retainers (1).
13. Close the fuel/brake pipe retainers (1).

14. Connect the EVAP (2) line to the purge solenoid.
15. Position and install the brake master cylinder. Refer to Master Cylinder Replacement.
16. Install the air cleaner outlet duct.
