Fuel Filler Hose: Service and Repair

Filler Tube Replacement

Removal Procedure

Important: Clean the fuel and evaporative emission (EVAP) connections and surrounding areas prior to disconnecting the lines in order to avoid possible system contamination.




1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief (With CH 48027) Fuel Pressure Relief (Without CH 48027).

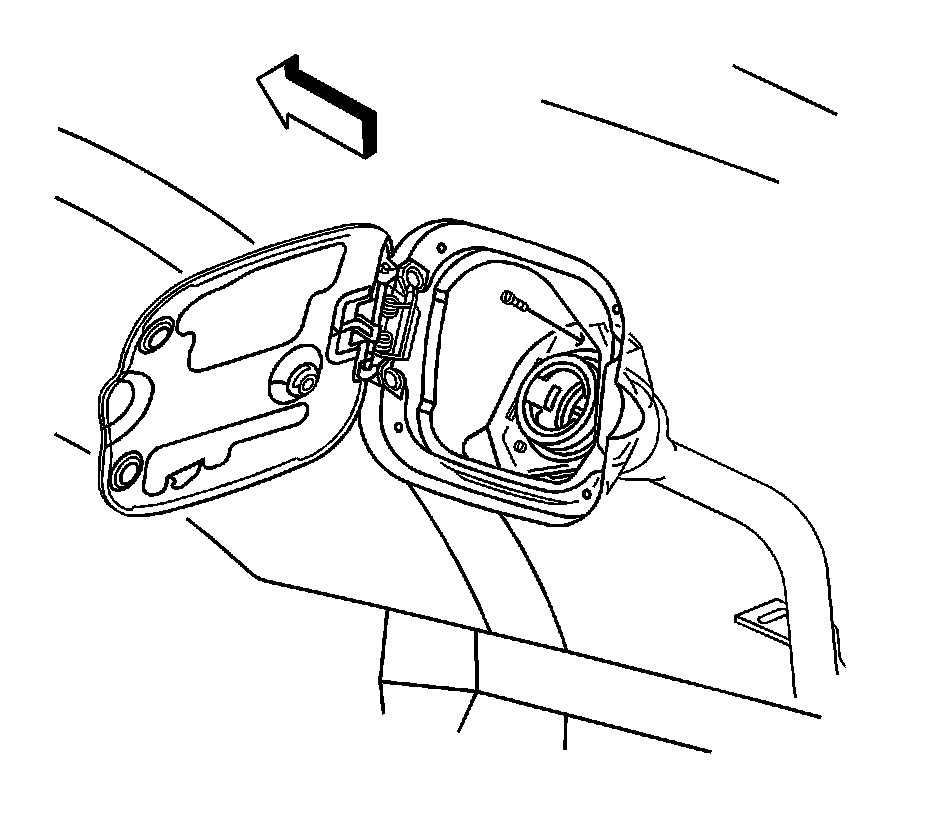

2. Remove the fuel fill pipe screws from the fuel filler pocket.




3. Raise and support the vehicle. Refer to Vehicle Lifting.

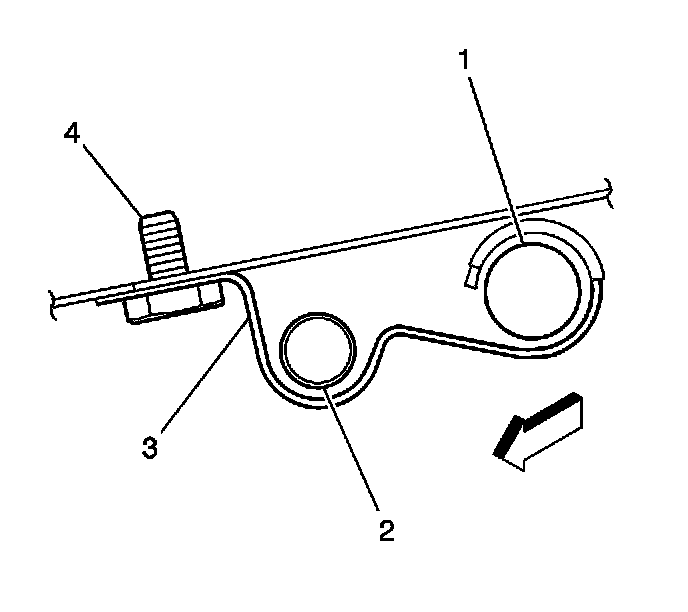

4. Remove the fill pipe bracket bolt (4) from the underbody rail.
5. Remove the EVAP line (2) from the bracket (3).




6. Loosen the fuel fill pipe clamp (1) at the fuel tank.
7. Remove the fuel fill pipe hose (2) from the fuel tank (3).
8. Disconnect the vent pipe quick connect fitting from the fuel tank vent pipe quick connect fitting.

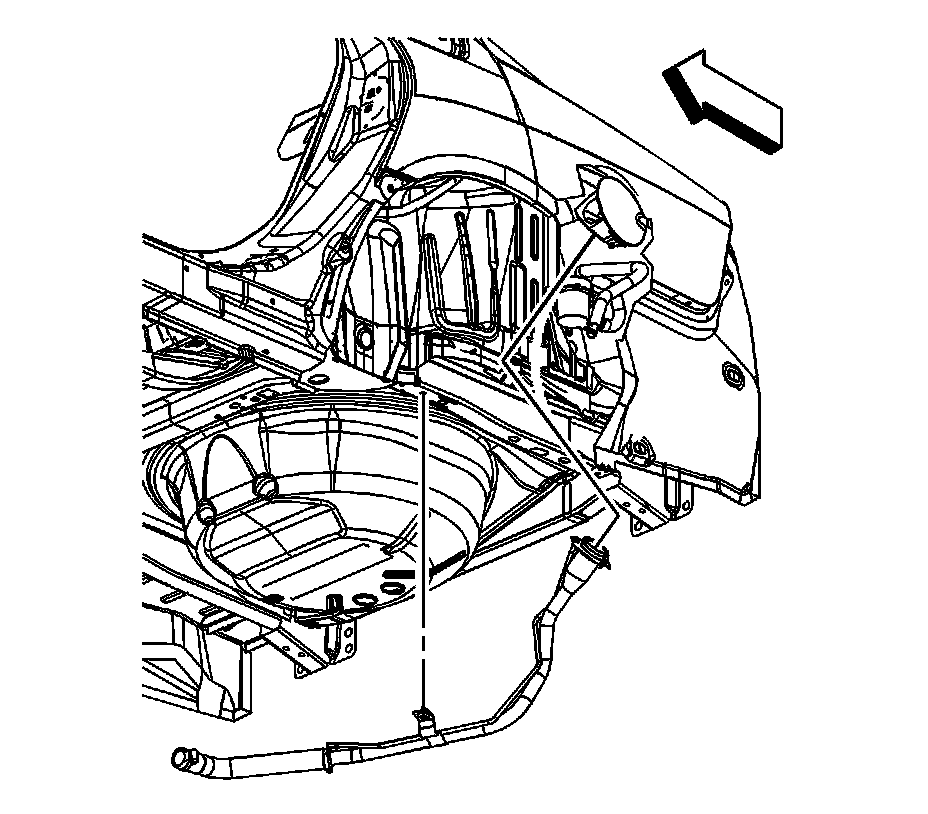

9. Remove the fuel tank fill pipe.

Installation Procedure




1. Install the fuel tank fill pipe.




2. Install the fuel tank fill pipe hose (2) onto the fuel tank (3).
3. Connect the vent pipe quick connect fitting to the fuel tank vent pipe quick connect fitting.

Notice: Refer to Fastener Notice.

4. Tighten the fuel fill pipe clamp (1) at the fuel tank.

Tighten the clamp to 2.5 N.m (22 lb in).




5. Install the EVAP line (2) to the bracket (3).
6. Install the fill pipe bracket bolt (4) to the underbody rail.

Tighten the bolt to 13 N.m (115 lb in).

7. Lower the vehicle.




8. Install the fuel fill pipe screws to the fuel filler pocket.

Tighten the screws to 2.5 N.m (22 lb in).

9. Install the intake manifold cover.
