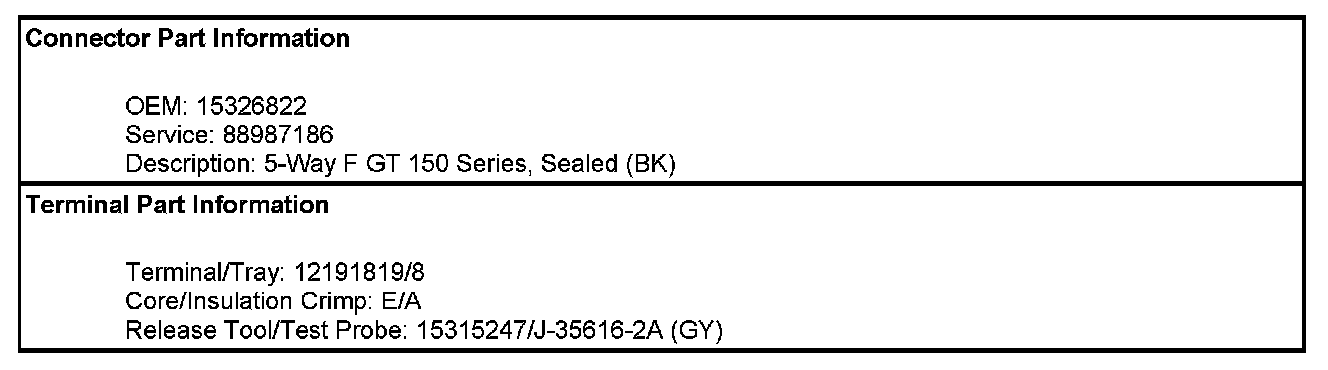

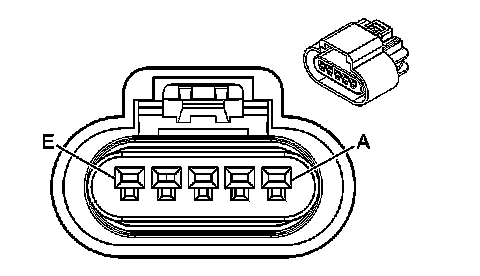

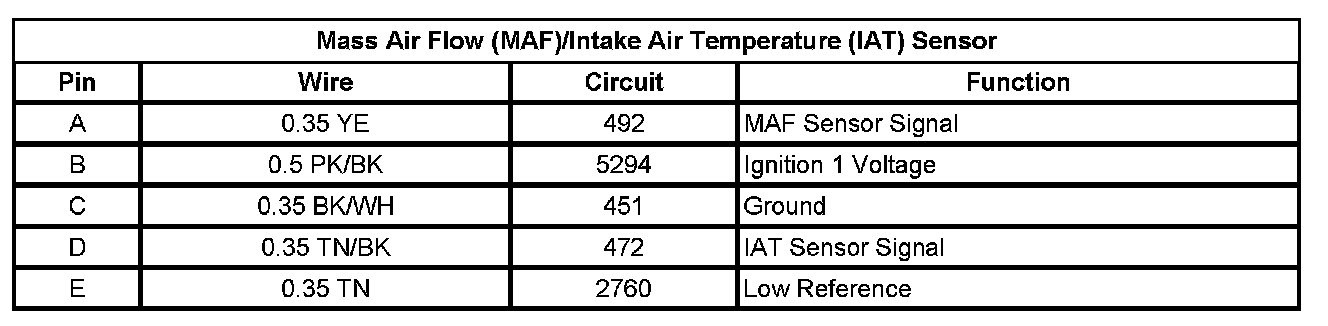

Home >> Chevrolet >> 2008 >> Impala V6-3.9L >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Sensors and Switches - Fuel Delivery and Air Induction >> Air Flow Meter/Sensor >> Diagrams >> Connector Views
