Connector Views

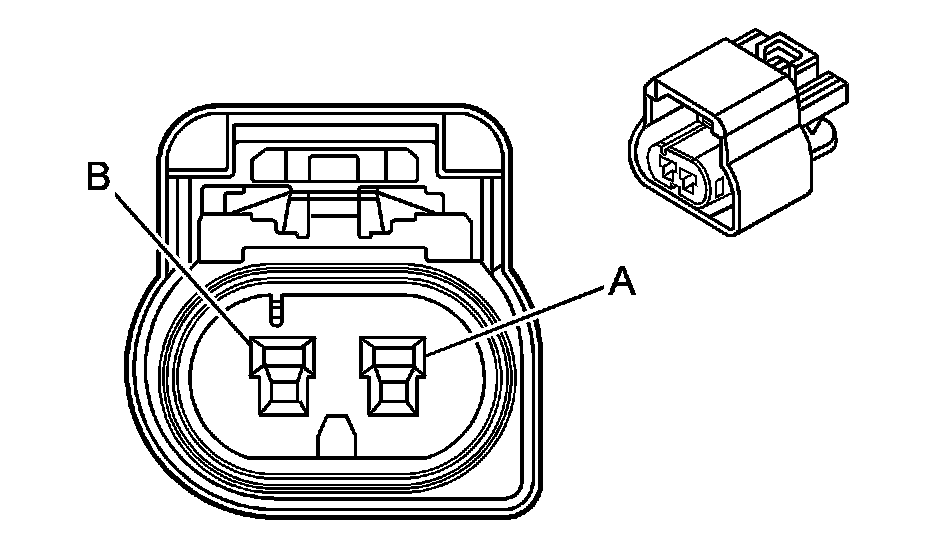

Component Connector End Views - Continued

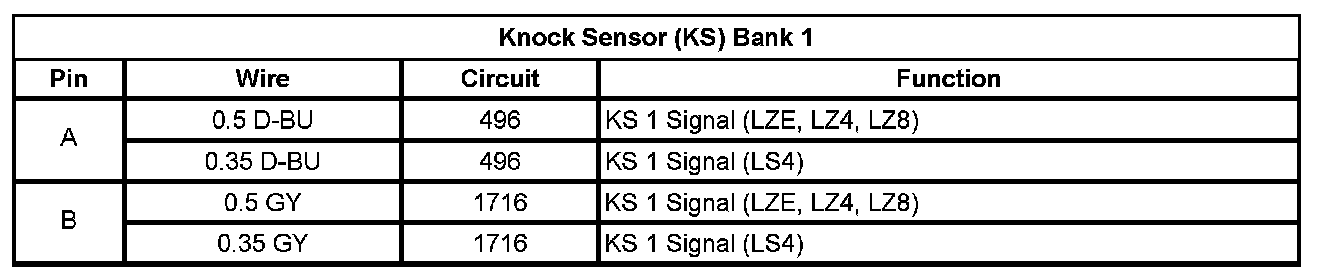

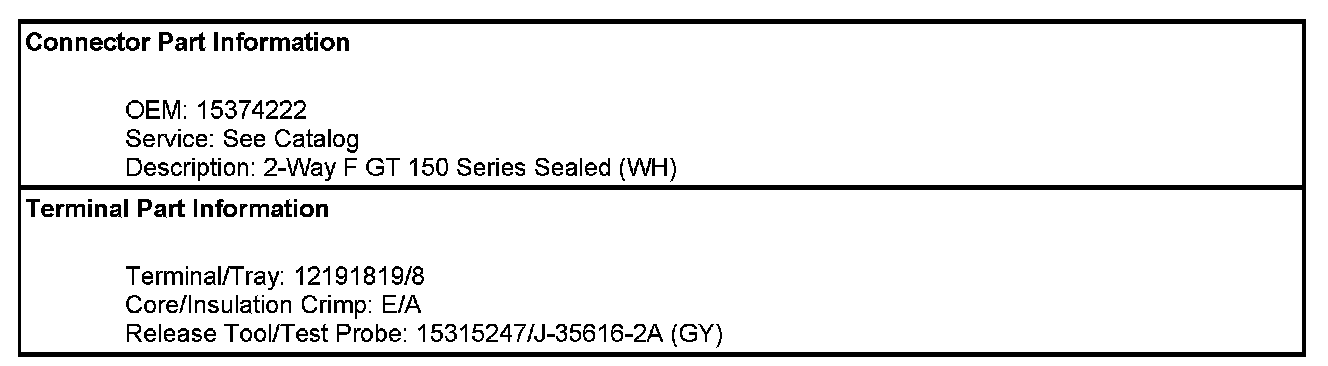

Knock Sensor (KS) Bank 1

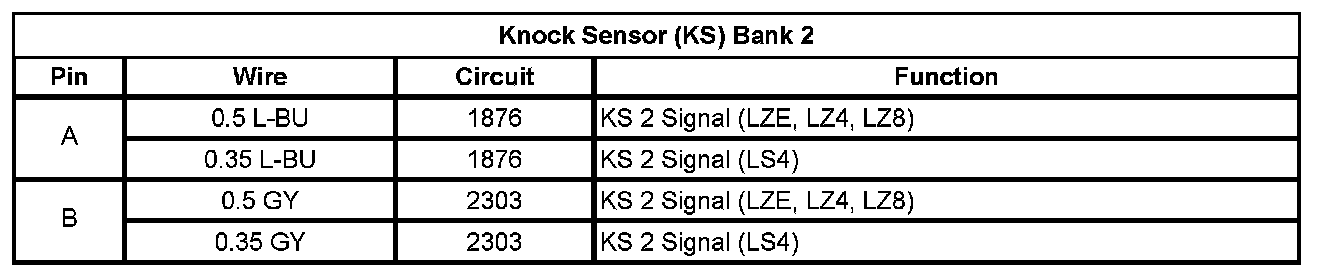

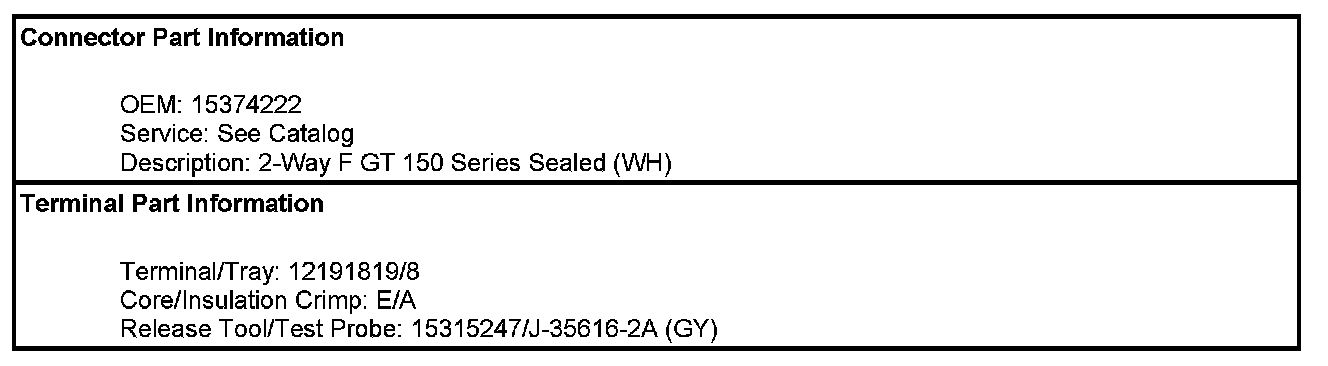

Knock Sensor (KS) Bank 2
