Electronic Brake Control Module: Diagrams



Component Connector End Views

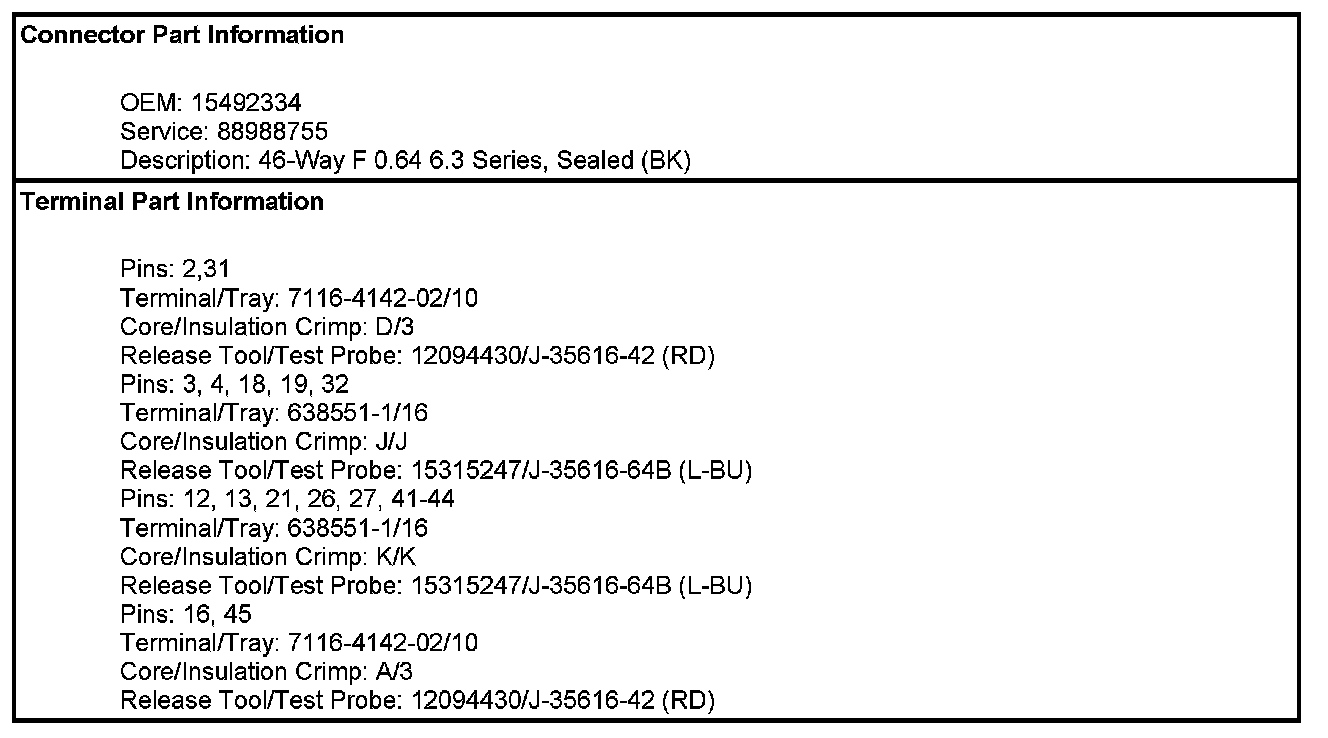

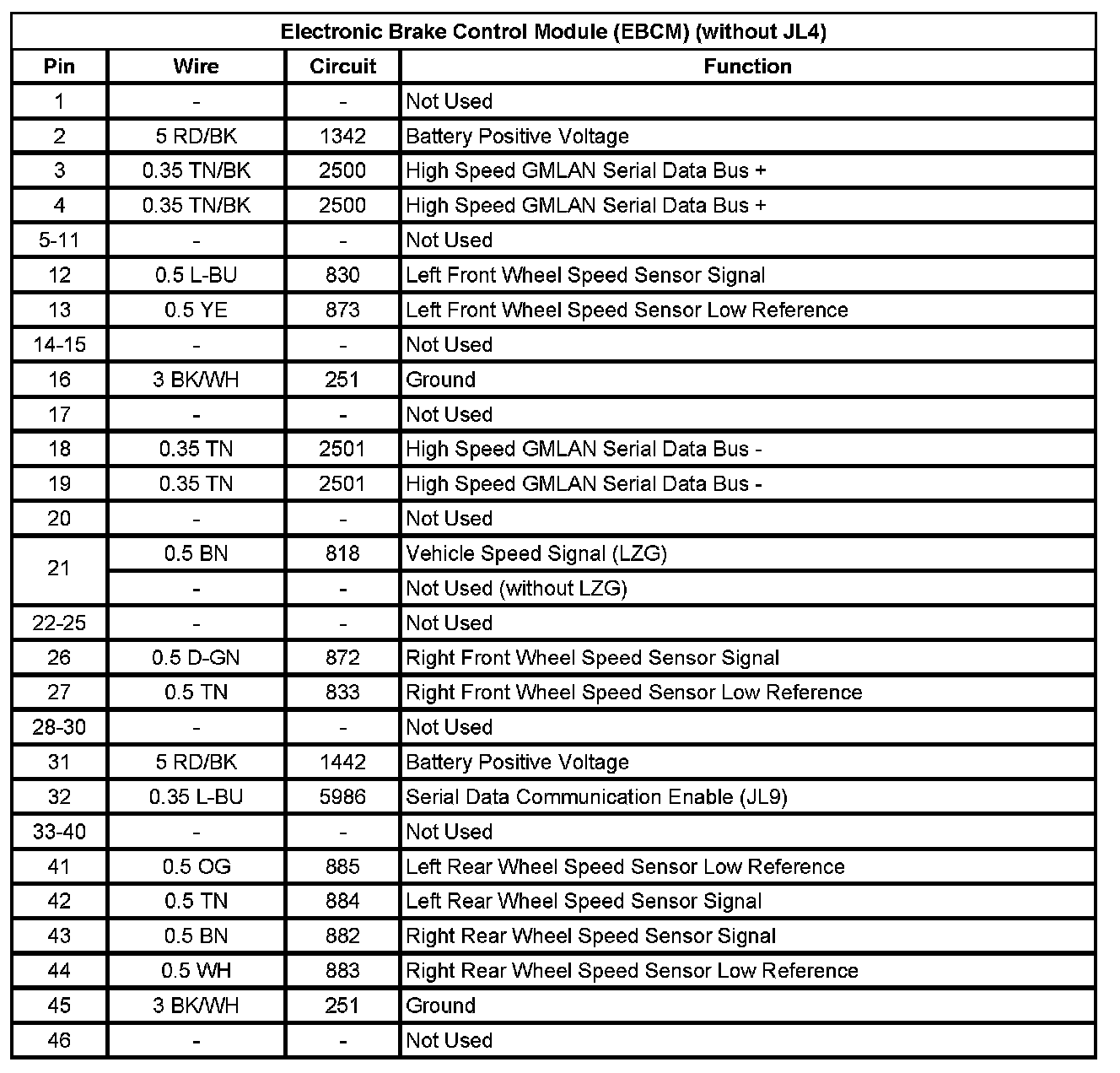

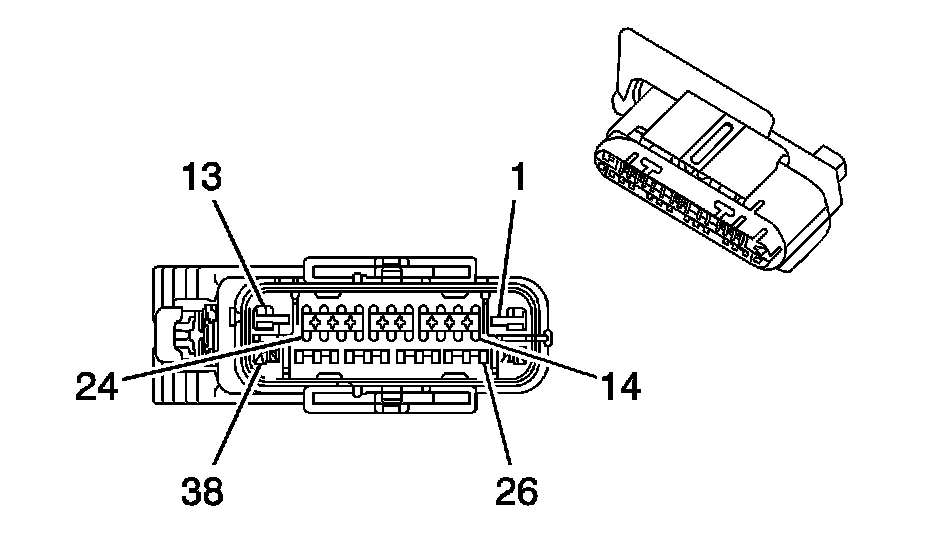

Electronic Brake Control Module (EBCM) (without JL4)

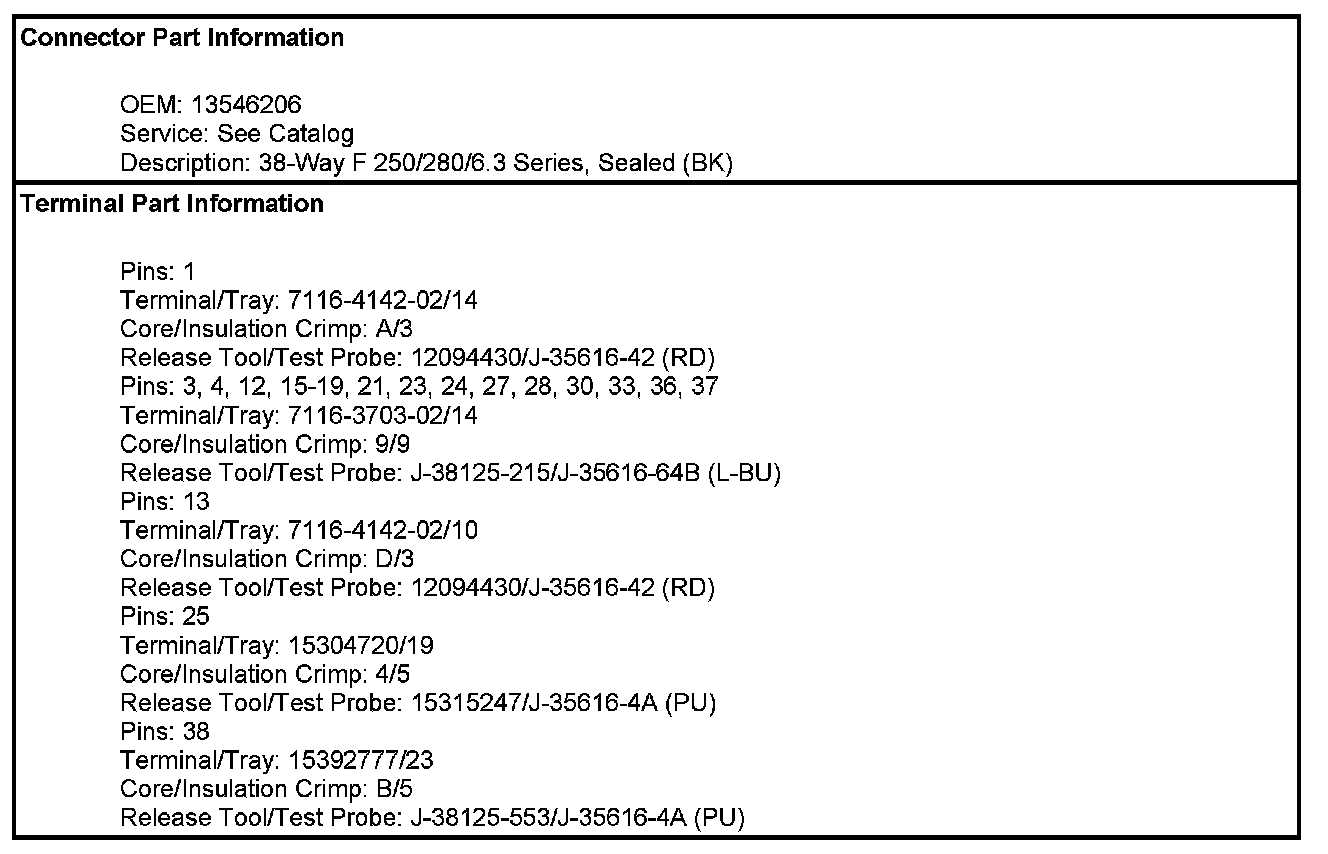

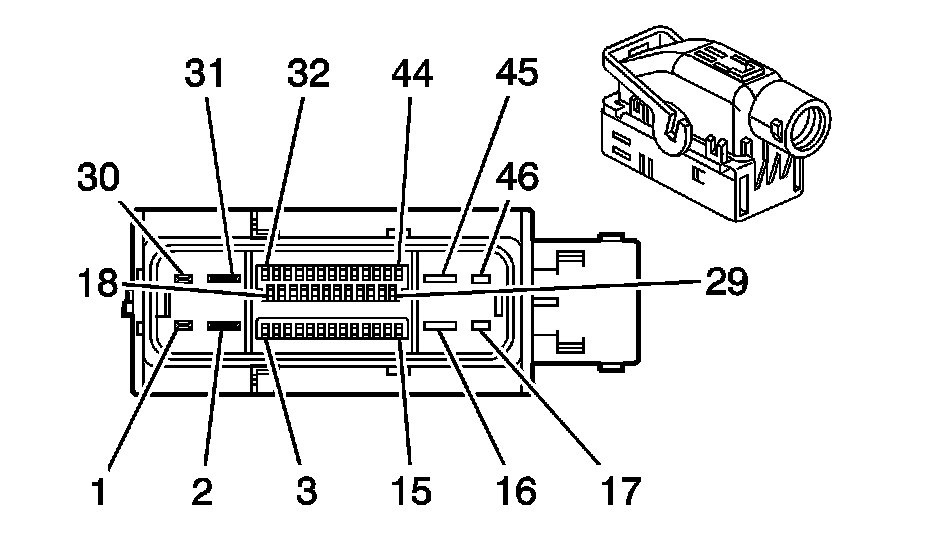

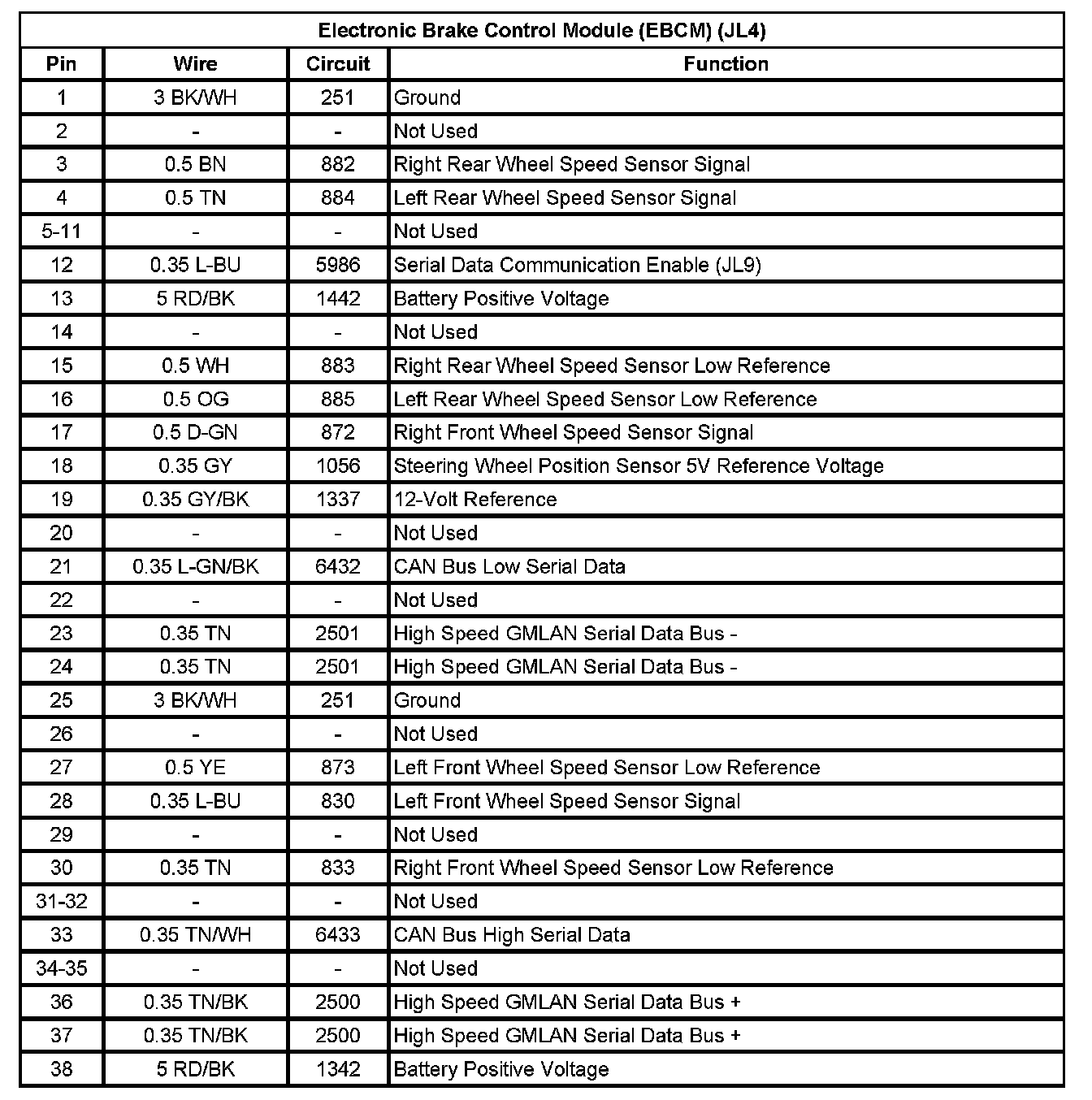

Electronic Brake Control Module (EBCM) (JL4)
