Battery Current Sensor
>>
Diagrams
Battery Current Sensor: Diagrams

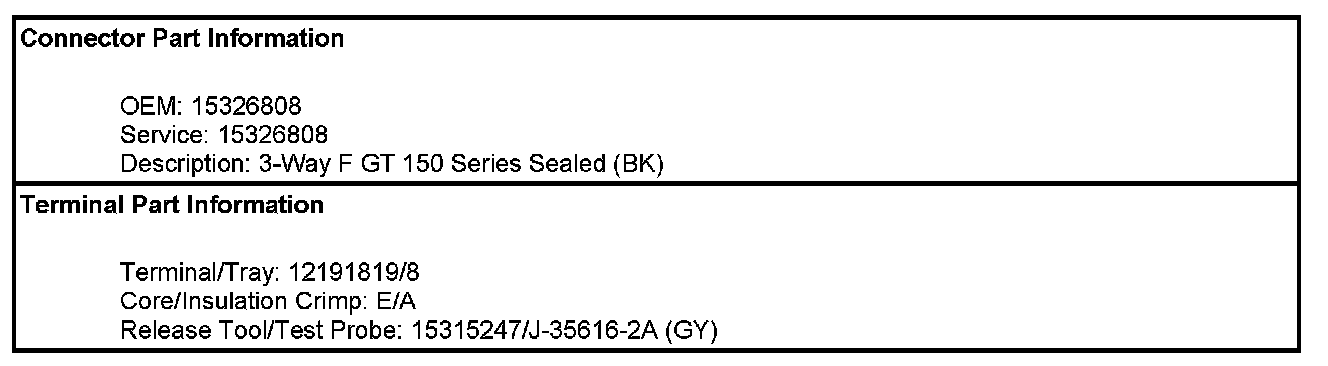

Component Connector End Views

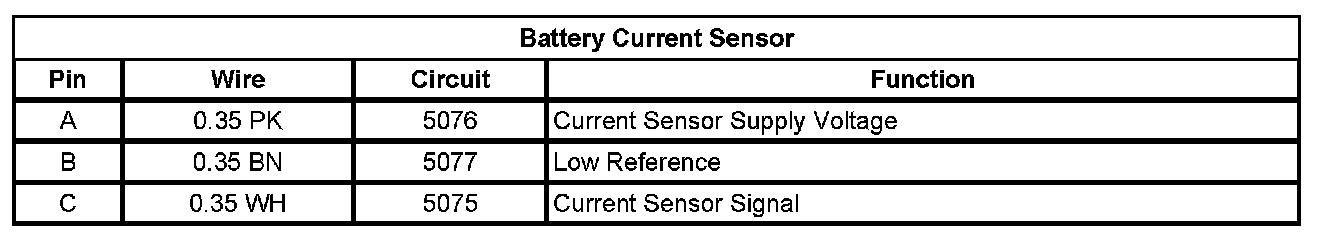

Battery Current Sensor
