Power Steering Pump Seal: Service and Repair

Power Steering Pump Shaft Seal Replacement (CB)

Removal Procedure

1. Remove the power steering pump from the vehicle, if necessary. Refer to Power Steering Pump Replacement (LZ4/LZE/LZ9) (Service and Repair)Power Steering Pump Replacement (LS4) (Service and Repair) .

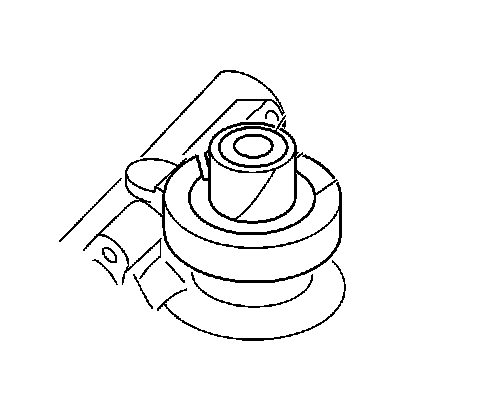

Important: Protect the drive shaft with the shim stock.


2. Use a small chisel in order to remove the seal.
Discard the seal.



Installation Procedure

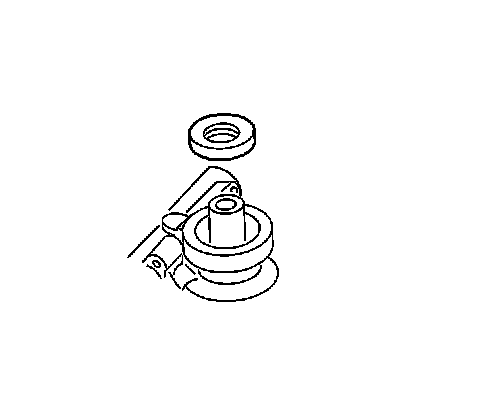

1. Lubricate the new drive shaft seal using power steering fluid.




2. Use a deep socket in order to install the new drive shaft seal.
3. Install the power steering pump, if removed. Refer to Power Steering Pump Replacement (LZ4/LZE/LZ9) (Service and Repair)Power Steering Pump Replacement (LS4) (Service and Repair) .
