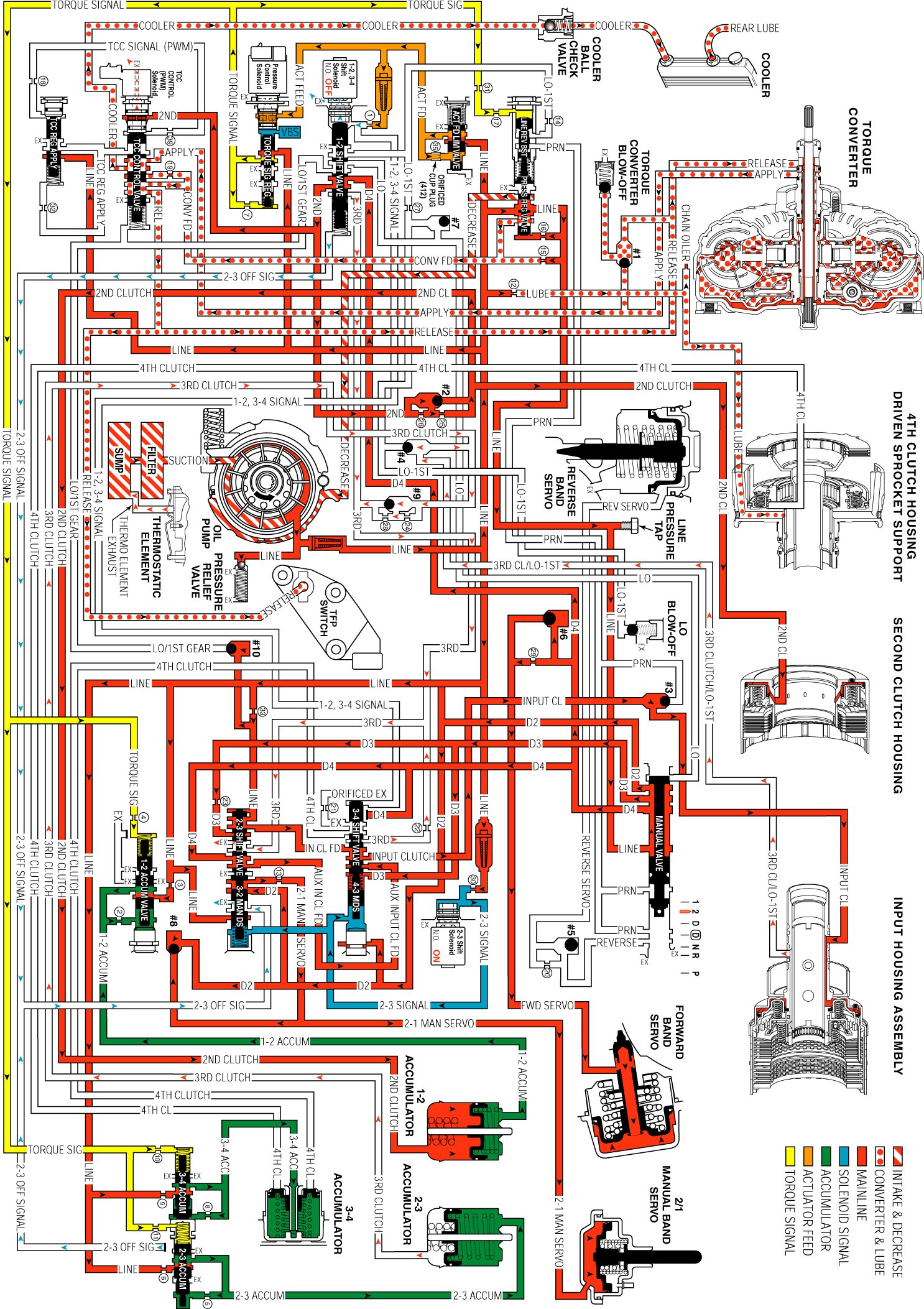

Drive Range, Manual Second (from Drive, Manual Third) (Without Touch Activated Power)

Drive Range, Manual 2nd - from Drive, Manual 3rd - Without Touch Activated Power

Drive Range, Manual 2nd - from Drive, Manual 3rd - Without Touch Activated Power:
