Home >> Chevrolet >> 2008 >> Impala V6-3.9L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Fluid Diagrams >> Manual Third Gear (With Touch Activated Power)

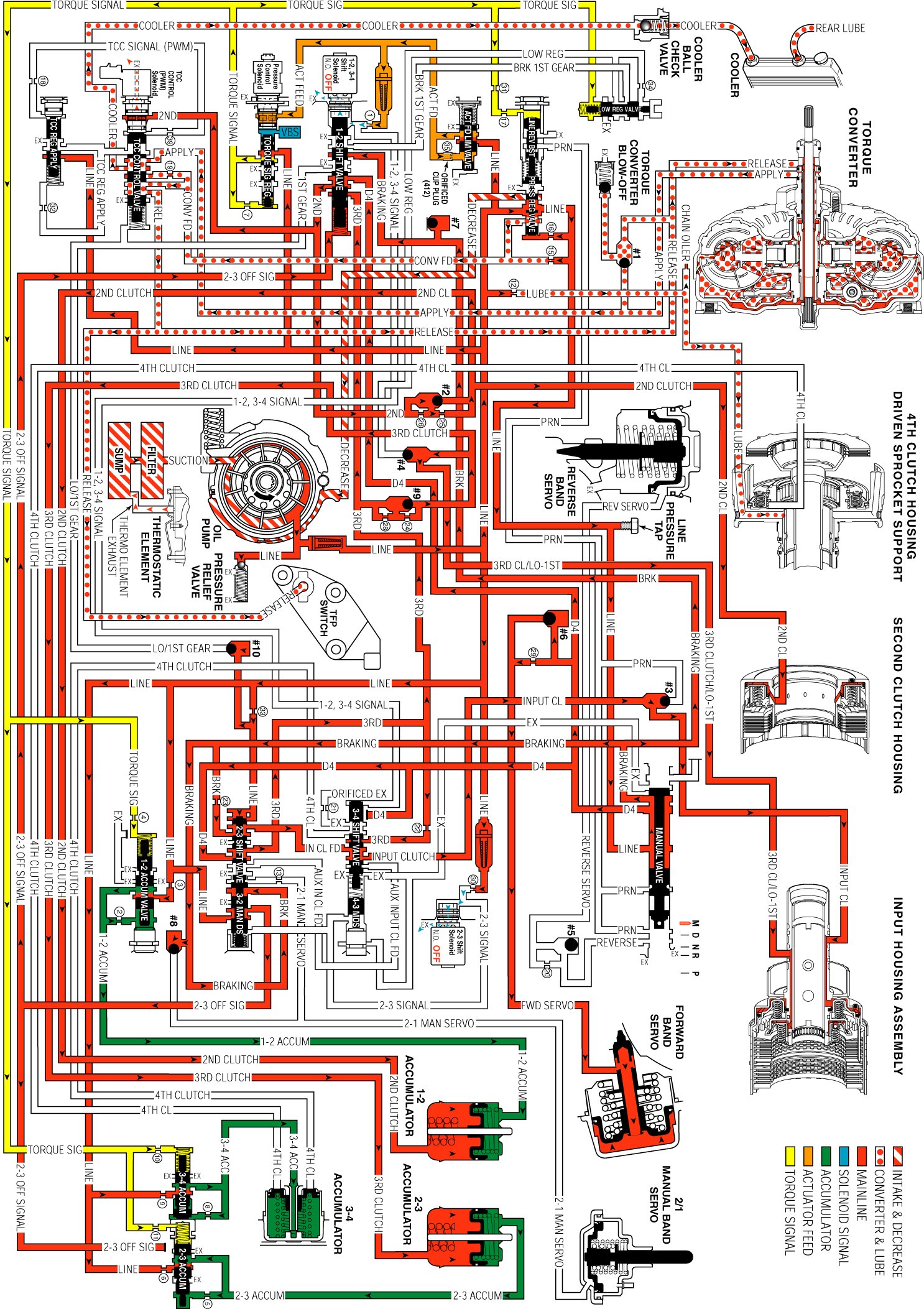

Manual Third Gear (With Touch Activated Power)

Drive Range, Manual 3rd - from Overdrive Range - With Touch Activated Power

Drive Range, Manual 3rd - from Overdrive Range - With Touch Activated Power:
