Overdrive Range, 4-3 Downshift - Torque Converter Clutch Not Applied (Without Touch Activated Power)

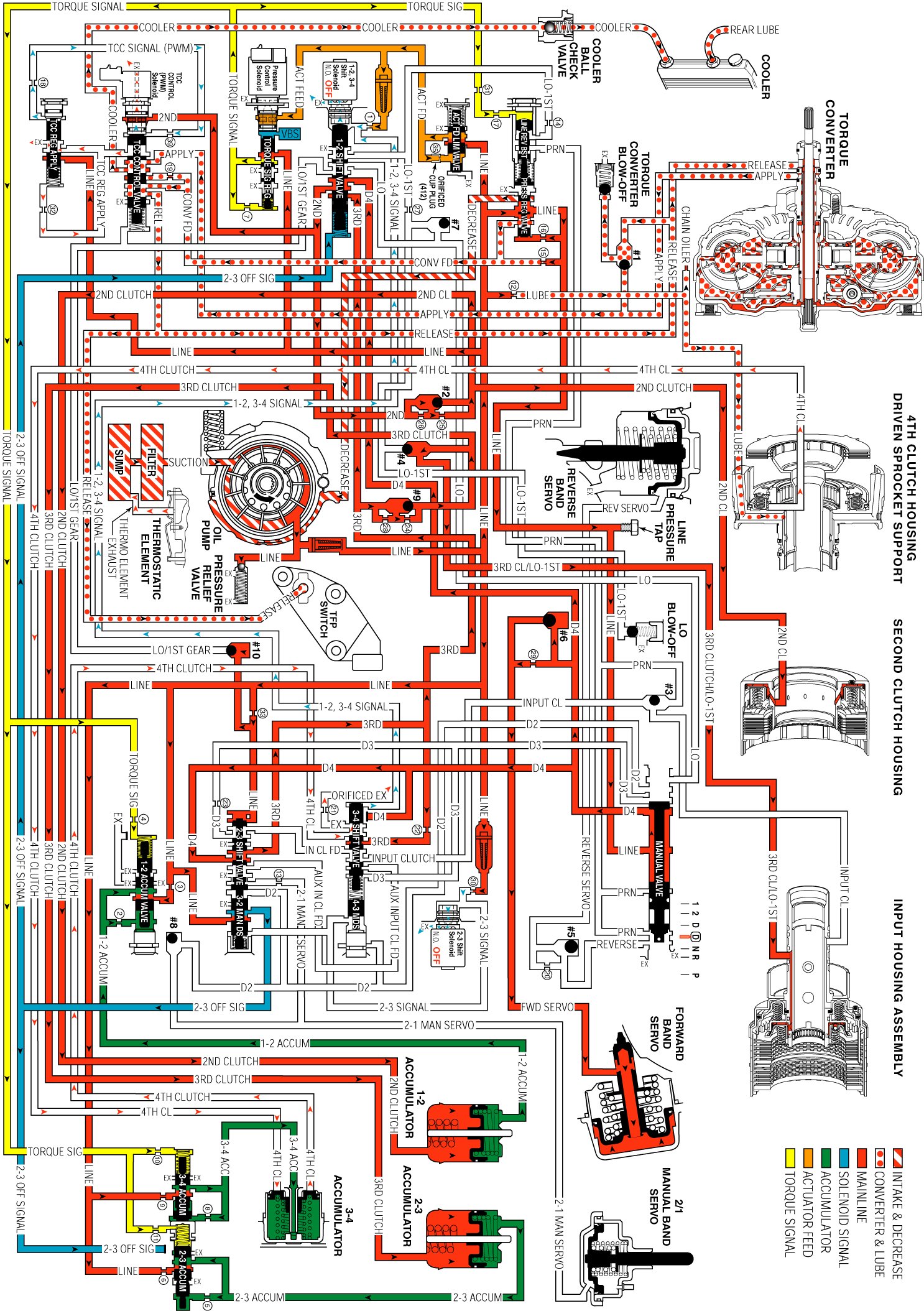

Overdrive Range, 4-3 Downshift - TCC Not Applied - Without Touch Activated Power

Overdrive Range, 4-3 Downshift - TCC Not Applied - Without Touch Activated Power:
