Overdrive Range, Fourth Gear - Torque Converter Clutch Applied (With Touch Activated Power)
Overdrive Range, Fourth Gear - Torque Converter Clutch Applied (With Touch Activated Power)

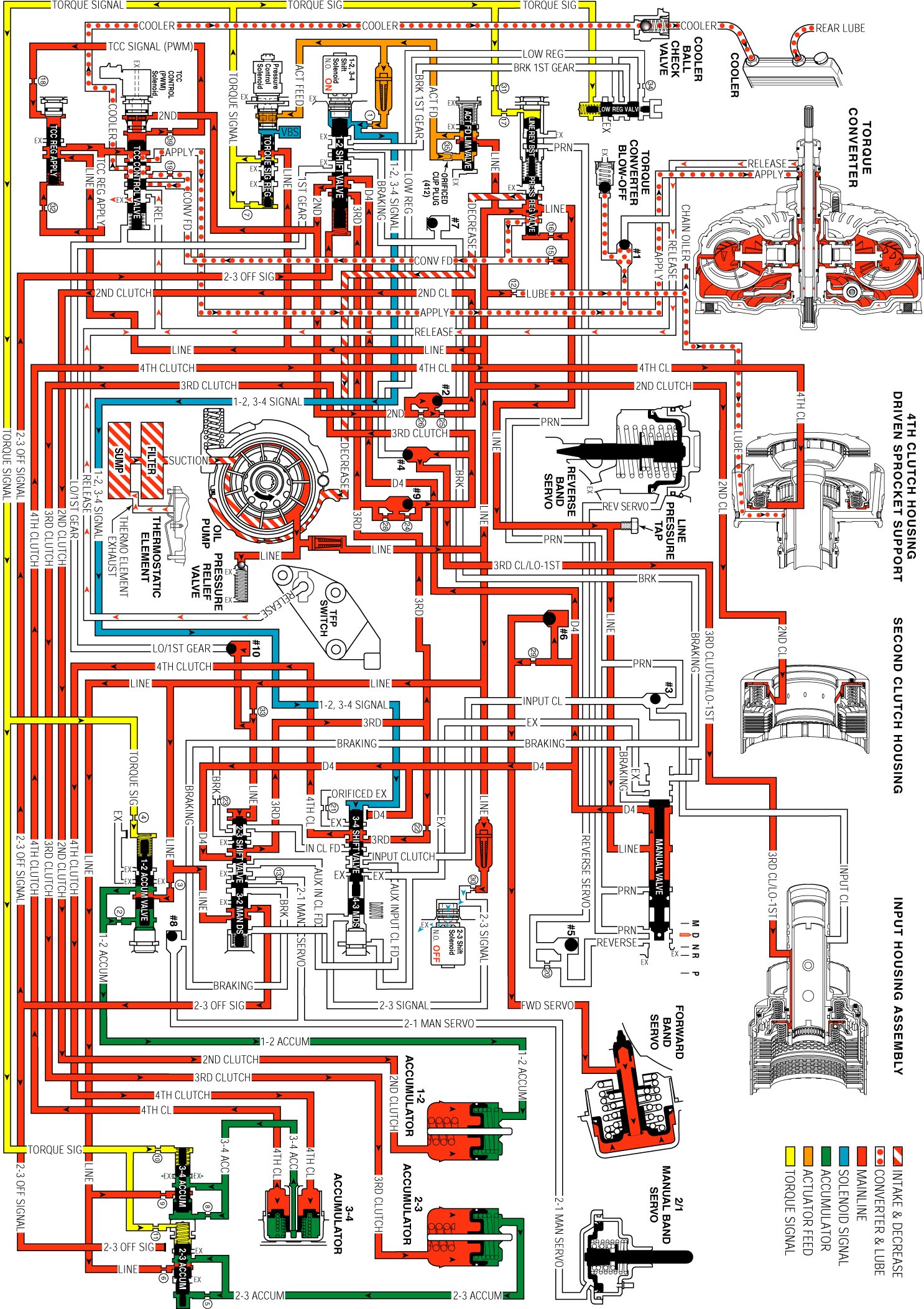

Overdrive Range, Fourth Gear - TCC Applied - With Touch Activated Power
Overdrive Range, Fourth Gear - TCC Applied - With Touch Activated Power:
