Home >> Chevrolet >> 2008 >> Impala V6-3.9L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Fluid Diagrams >> Reverse (With Touch Activated Power)

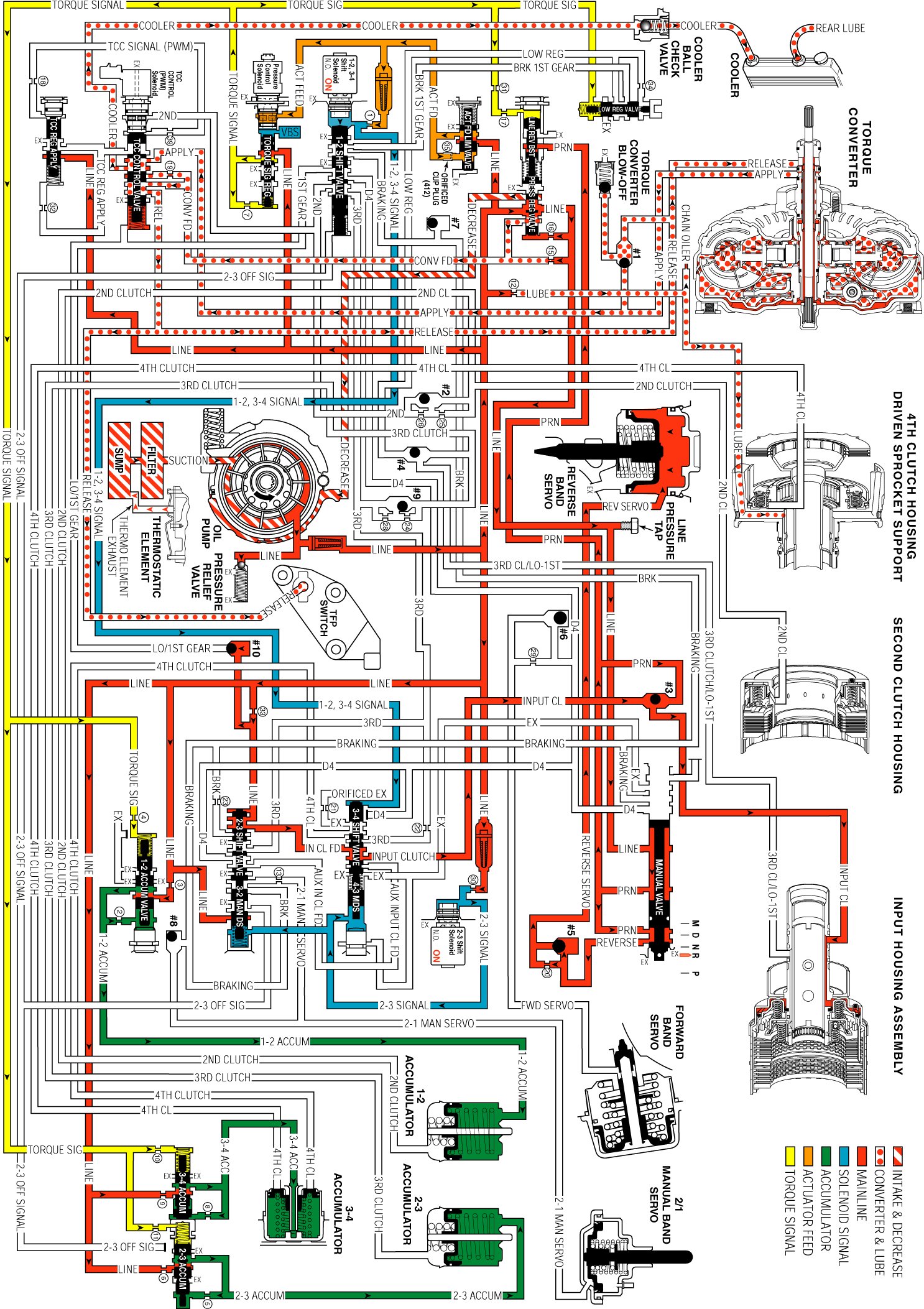

Reverse (With Touch Activated Power)

Reverse - With Touch Activated Power

Reverse - With Touch Activated Power:
