Transmission Brace Replacement

Transmission Brace Replacement (RPOs LZ9/LZE)

Removal Procedure





1. Remove the right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .




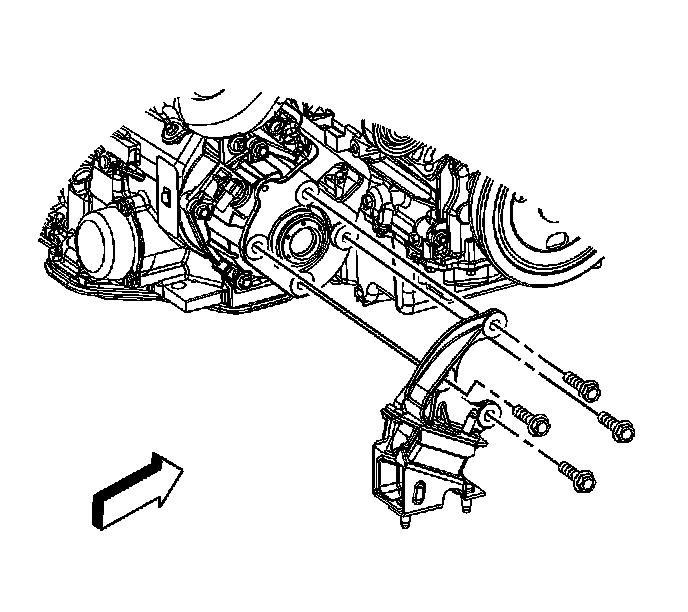

2. Remove the transmission brace bolts (2).

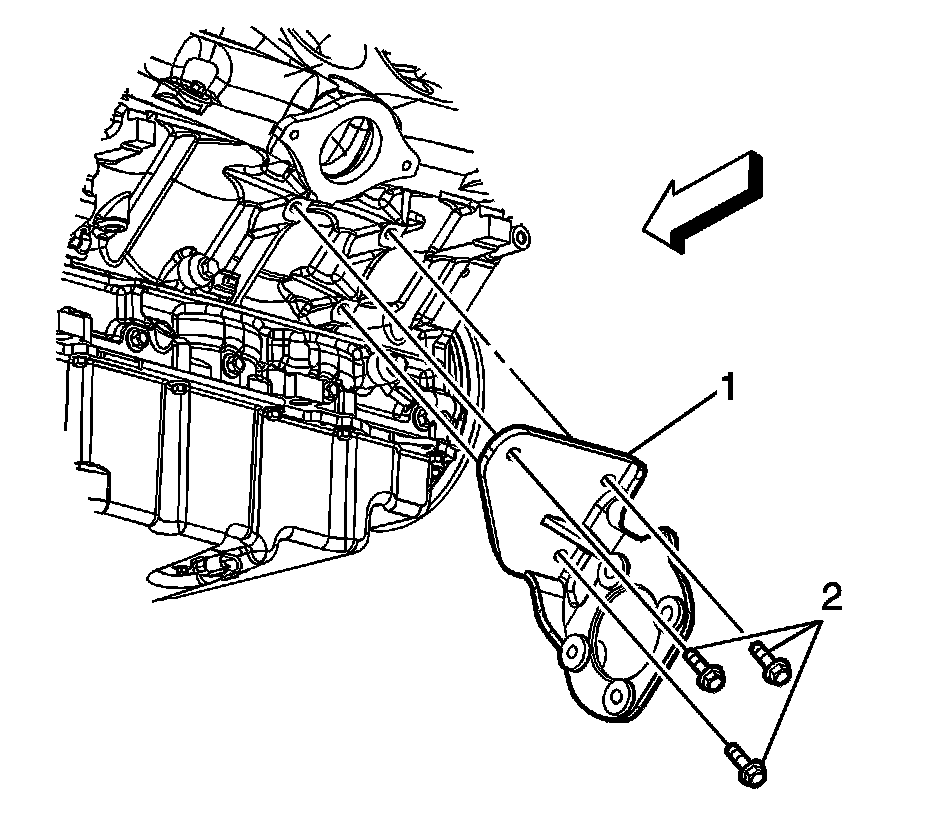

3. Remove the transmission brace (1).



Installation Procedure





1. Install the transmission brace (1).

Notice: Refer to Fastener Notice .

2. Install the transmission brace bolts (2).

Tighten the bolts to 50 N.m (37 lb ft).





3. Install the right engine mount bracket. Refer to Engine Mount Bracket Replacement - Right Side .
