Transmission and Drivetrain: Diagrams

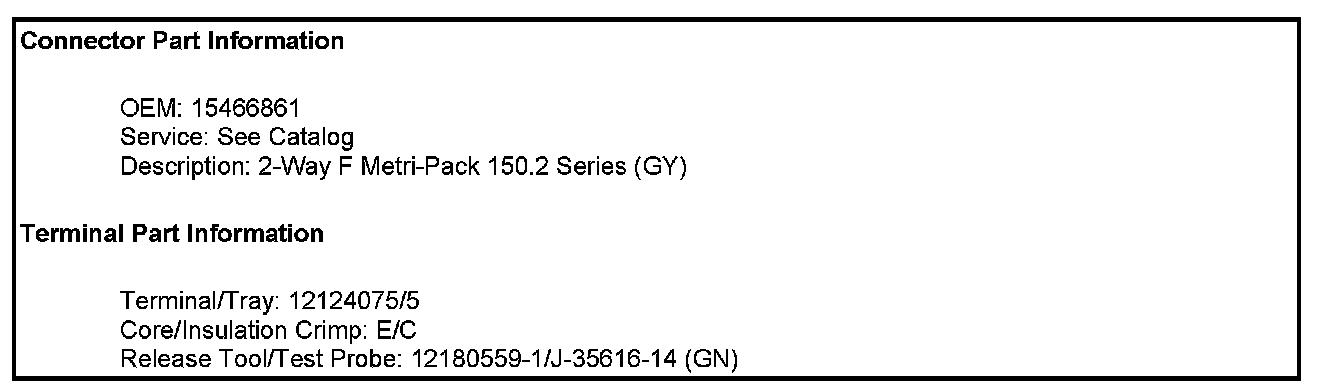

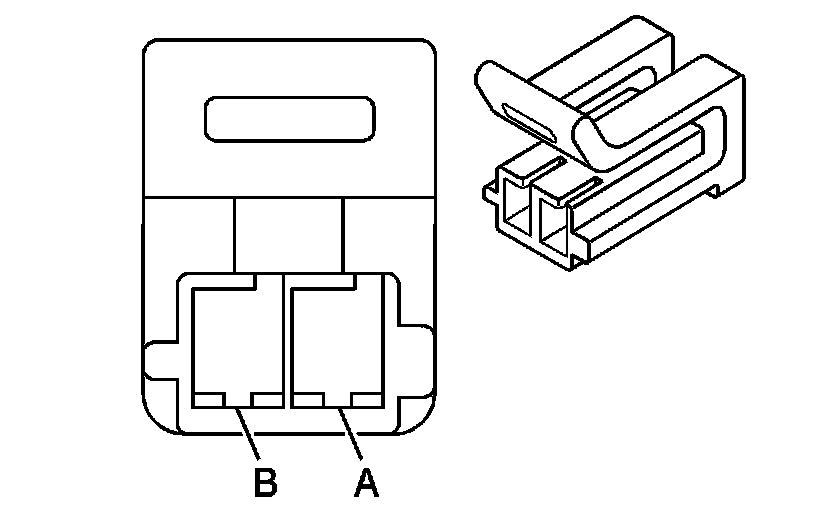

Component Connector End Views - Continued

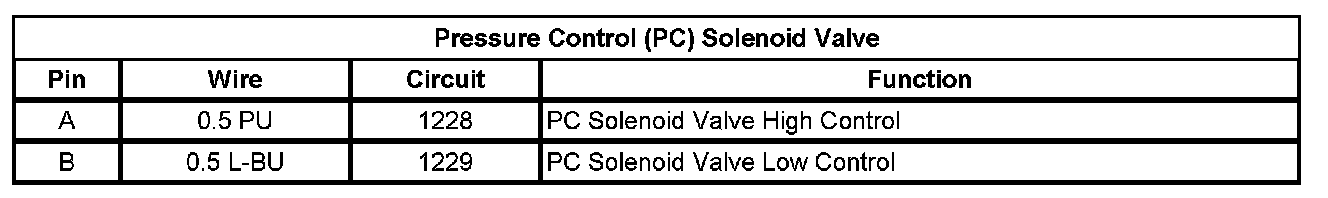

Pressure Control (PC) Solenoid Valve
