Transmission Speed Sensor: Diagrams



Component Connector End Views

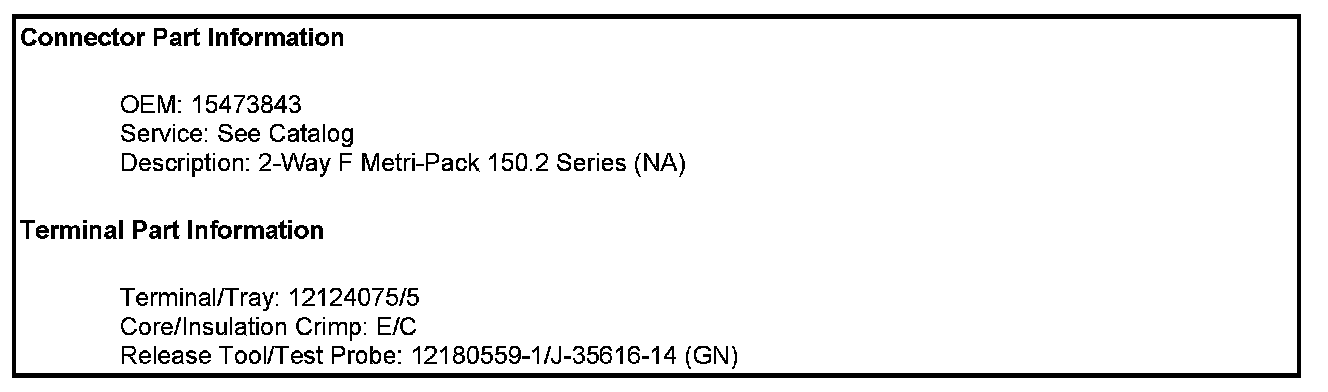

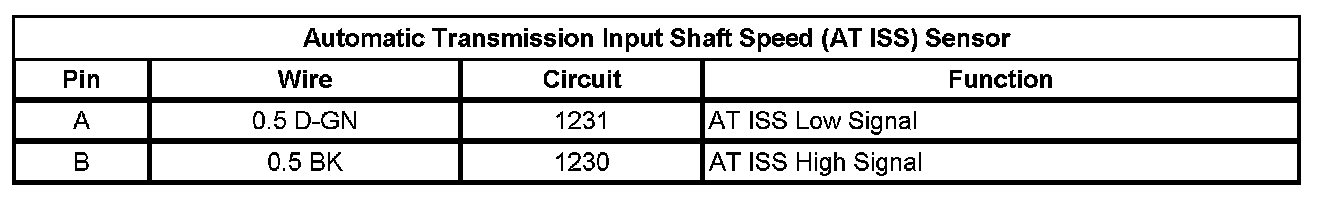

Automatic Transmission Input Shaft Speed (AT ISS) Sensor
