Crankshaft Position Sensor
Crankshaft Position Sensor
Component Connector End Views

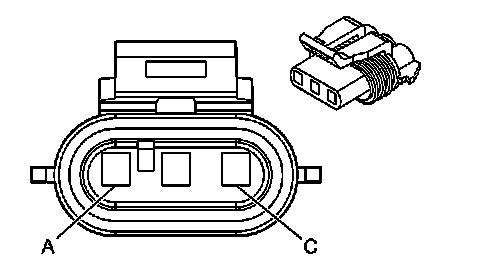

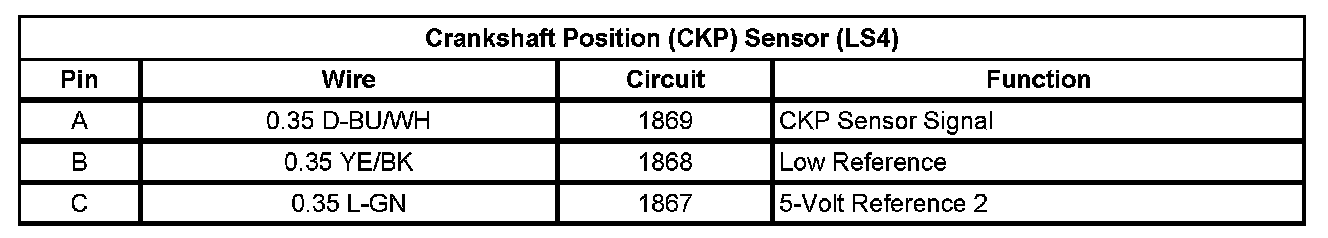

Crankshaft Position (CKP) Sensor (LS4)
