X108
X108

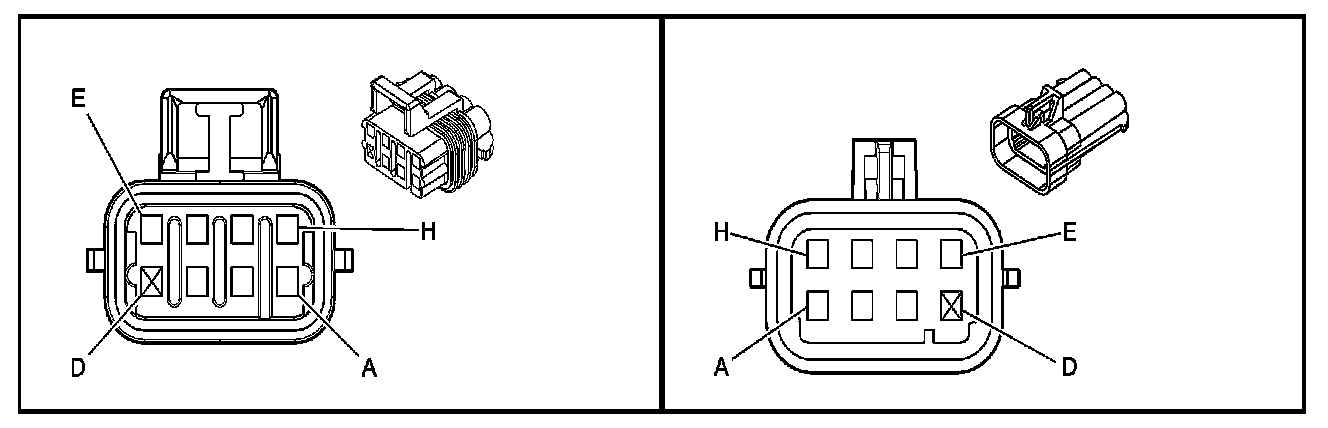

Inline Harness Connector End Views

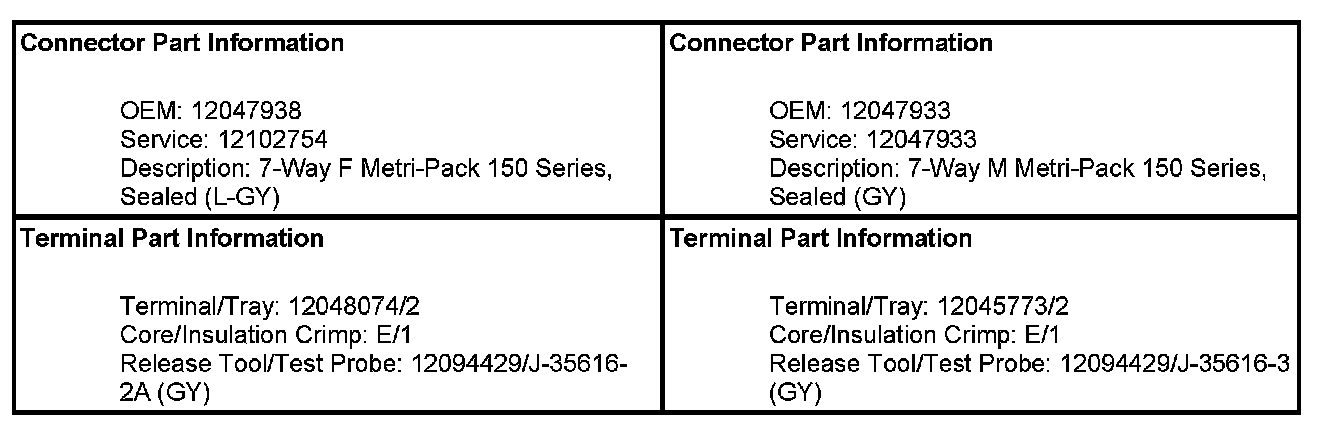

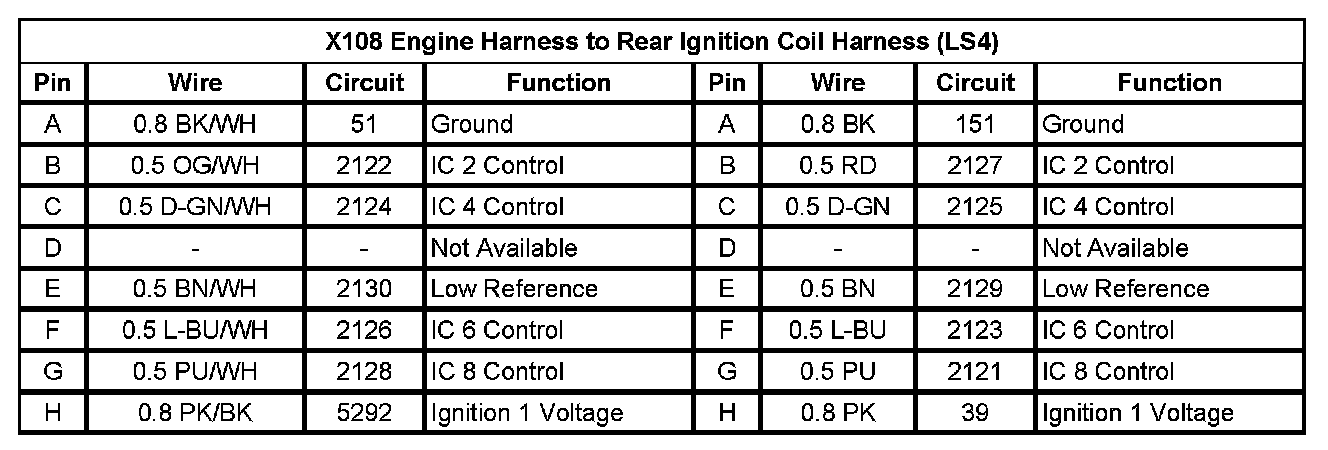

X108 Engine Harness to Rear Ignition Coil Harness (LS4)
