Valve Deactivation Solenoid
Valve Deactivation Solenoid

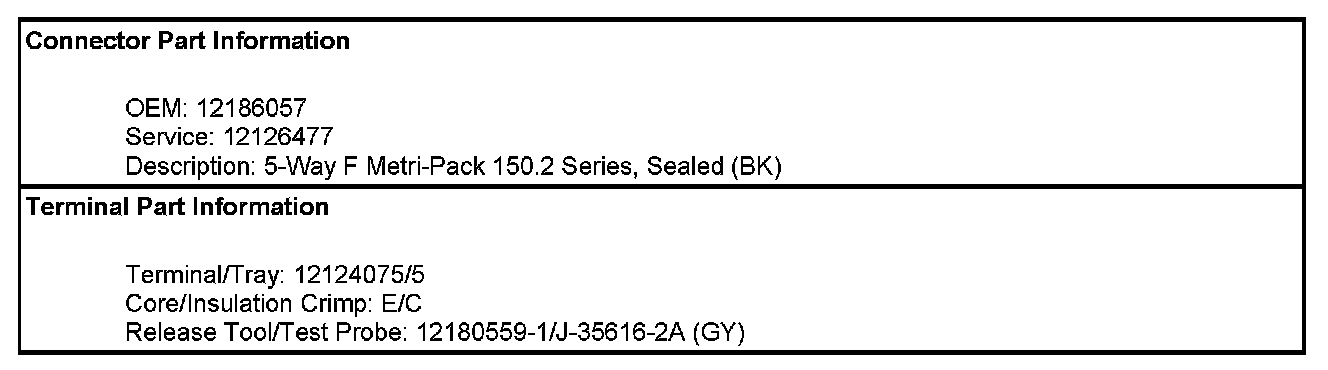

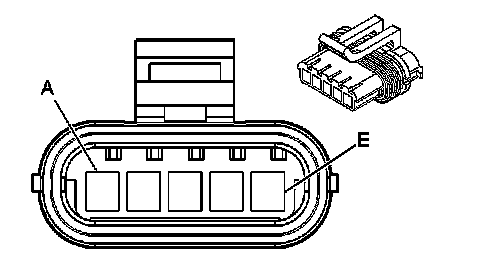

Component Connector End Views - Continued

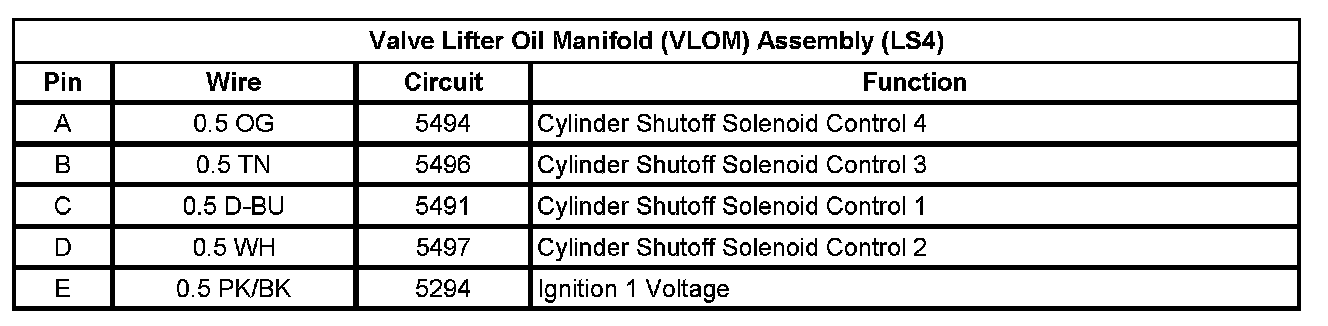

Valve Lifter Oil Manifold (VLOM) Assembly (LS4)
