Antenna Amplifier: Service and Repair

Antenna Amplifier Replacement

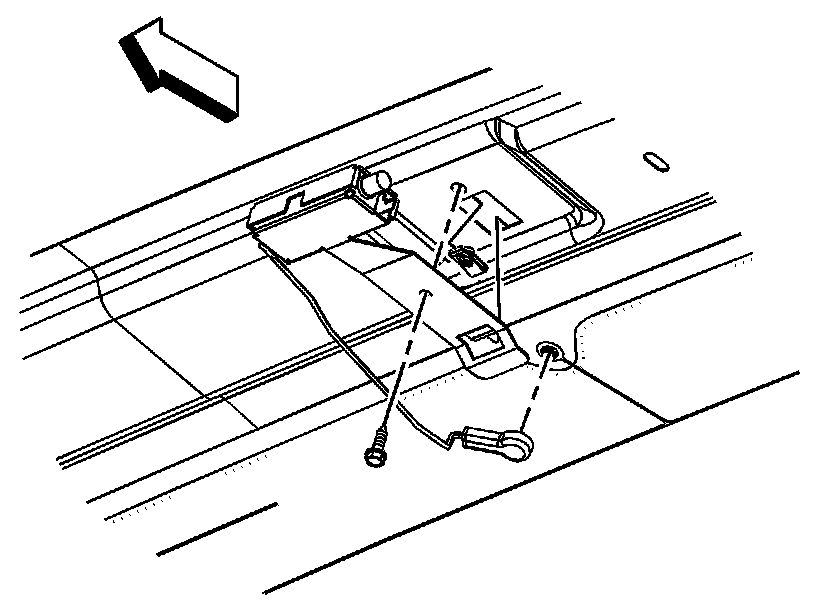

Removal Procedure

1. Lower the headliner leaving the wiring harness attached. Refer to Headlining Trim Panel Replacement (Extended Sedan) Headlining Trim Panel Replacement (Sedan).
2. Disconnect the electrical connectors from the antenna amplifier.




3. Remove the fastener from the antenna and remove the antenna amplifier.

Installation Procedure






Notice: Refer to Fastener Notice.

1. Install the antenna amplifier and secure with the fastener.

Tighten the fastener to 3 N.m (26 lb in).

2. Connect the electrical connectors to the antenna amplifier.
3. Install the headliner.
