Digital Radio Antenna Cable Replacement

Digital Radio Antenna Cable Replacement

Removal Procedure

1. Lower the headliner with wiring harness attached. Refer to Headlining Trim Panel Replacement (Extended Sedan) Headlining Trim Panel Replacement (Sedan).
2. Remove the rear window shelf panel.

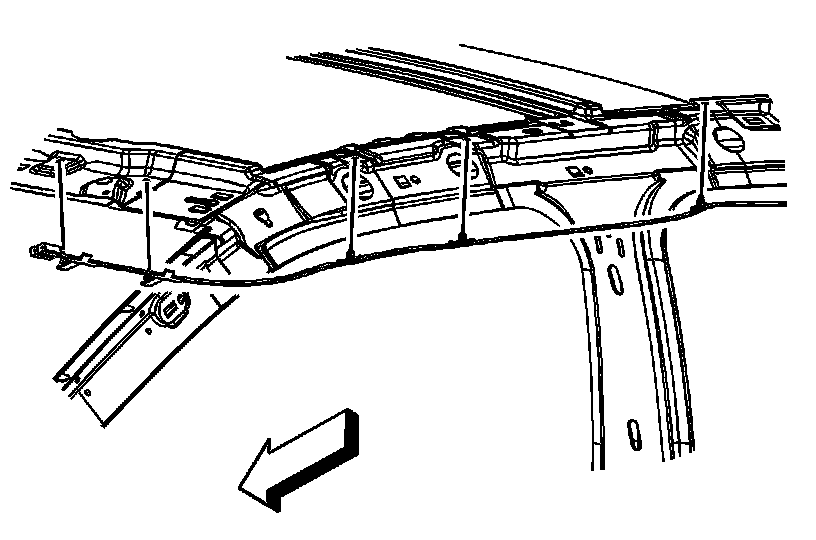

3. Remove the coaxial cable from the front roof bow.

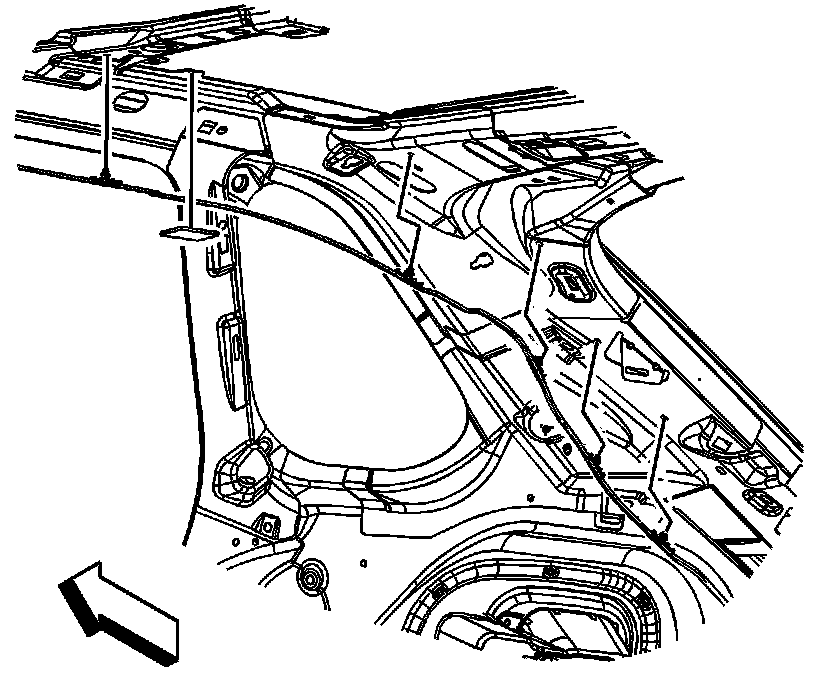

4. Remove the coaxial cable from the inner body side.

Installation Procedure




1. Install the coaxial cable to inner body side.




2. Install the coaxial cable to the front roof bow.
3. Install the rear window shelf panel.
4. Install the headliner.
