DVD Player: Service and Repair

Video Disc Player Replacement

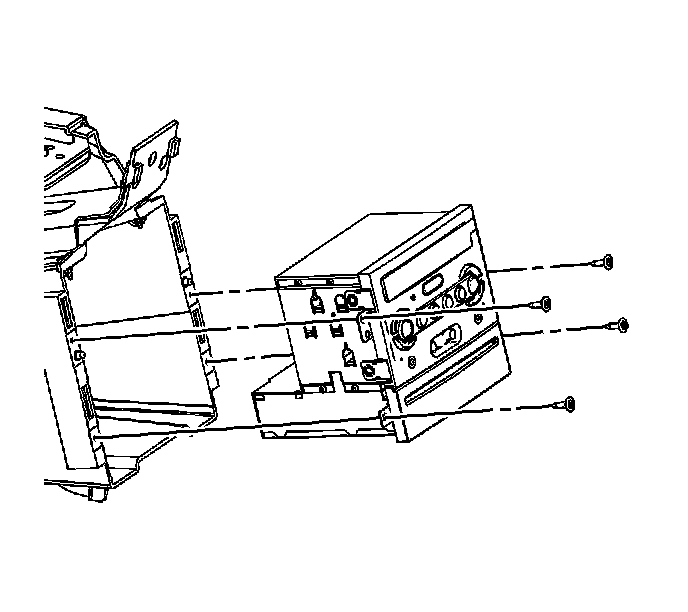

Removal Procedure

1. Remove the console rear trim plate.
2. Remove the DVD screws.




3. Remove the DVD player.
4. Remove the DVD player wire harness connectors.

Installation Procedure

1. Install the DVD player wire harness connectors.




2. Install the DVD player.

Notice: Refer to Fastener Notice.

3. Install the DVD screws.

Tighten the screws to 1 N.m (10 lb in).

4. Install the console rear trim plate.
