Automatic Volume Control: Service and Repair

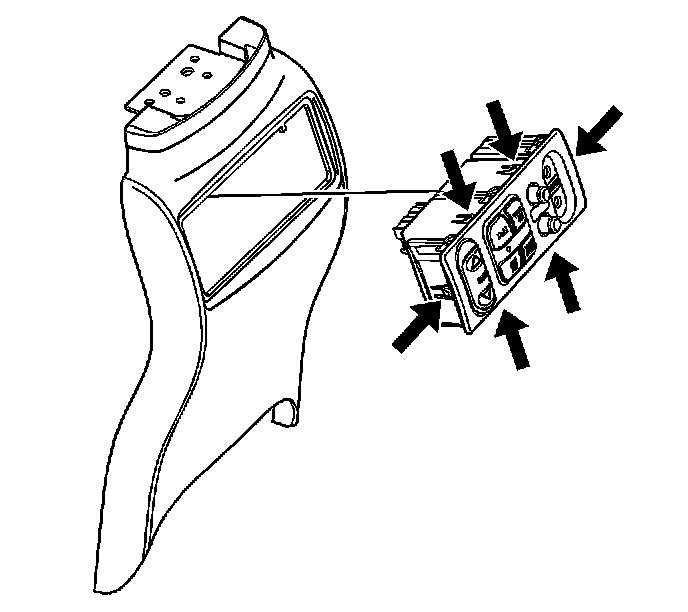

Rear Seat Audio Control Replacement

Removal Procedure

1. Remove the console rear trim plate.
2. Remove the rear seat audio control wire harness connectors.




3. Remove the rear seat audio control.

Installation Procedure




1. Install the rear seat audio control.
2. Install the rear seat audio control wire harness connectors.
3. Install the console rear trim plate.
