Speaker Replacement - Rear (Sedan)

Speaker Replacement - Rear (Sedan)

Removal Procedure

1. Remove the shelf trim panel from the rear window.

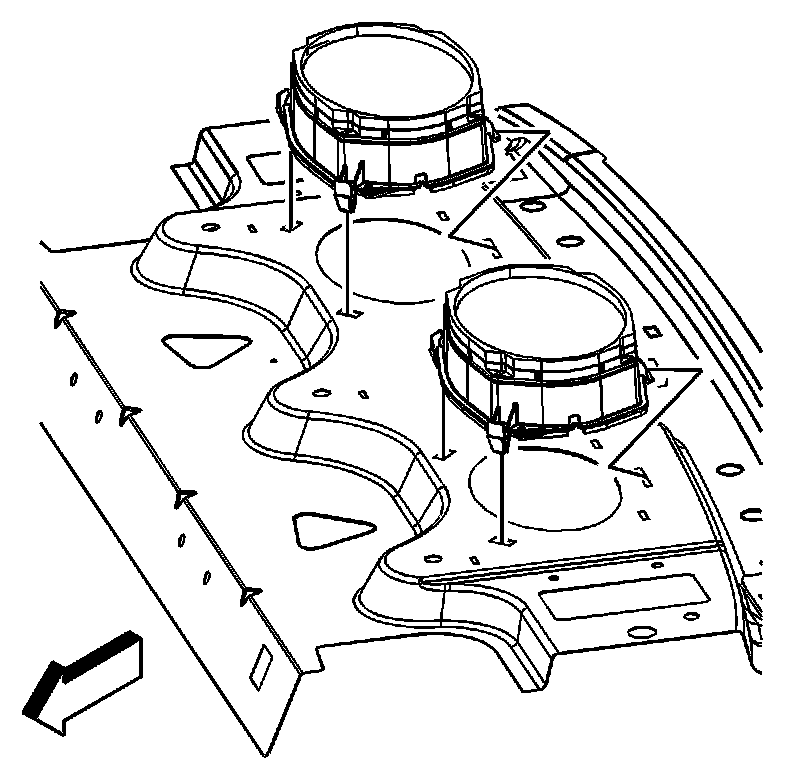

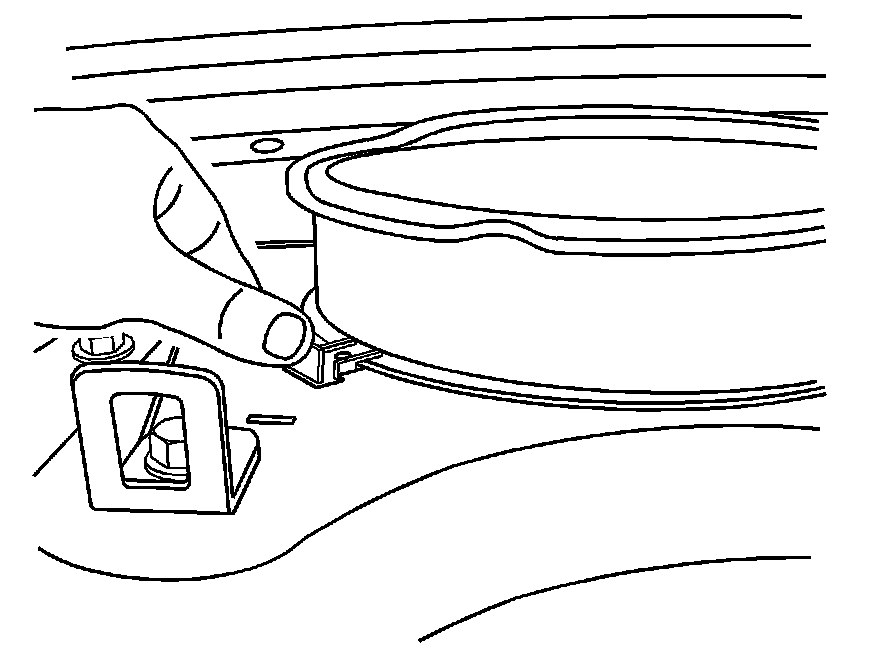

2. Remove the rear speaker by depressing the tab and lifting the speaker straight out.




3. Disconnect the electrical connector from the speaker.

Installation Procedure




1. Connect the electrical connector to the speaker.
2. Install the speaker to the vehicle.
3. Install the shelf trim panel to the rear window.
