Rear Door Limiter: Service and Repair

Rear Side Door Check Link Replacement

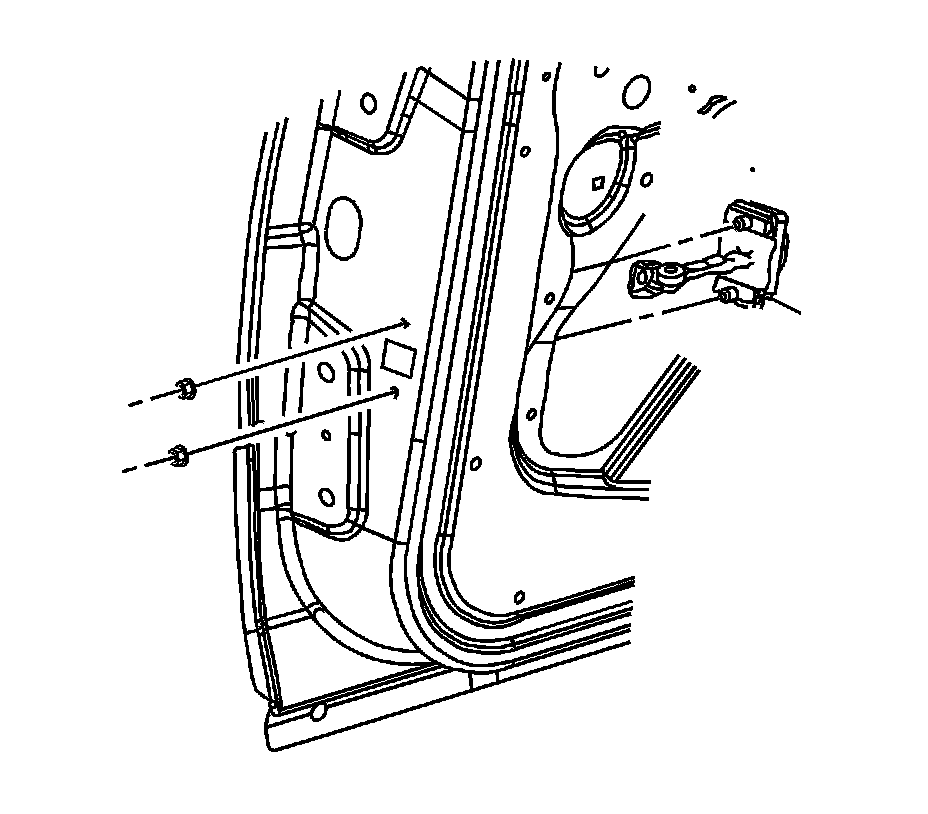

Removal Procedure

1. Remove the door inner trim panel. Refer to Front Side Door Trim Panel Replacement .
2. Remove the rear door water deflector. Refer to Front Side Door Water Deflector Replacement .




3. Remove the check link bolt.




4. Remove the check link nuts.
5. Remove the check link from the rear door.



Installation Procedure

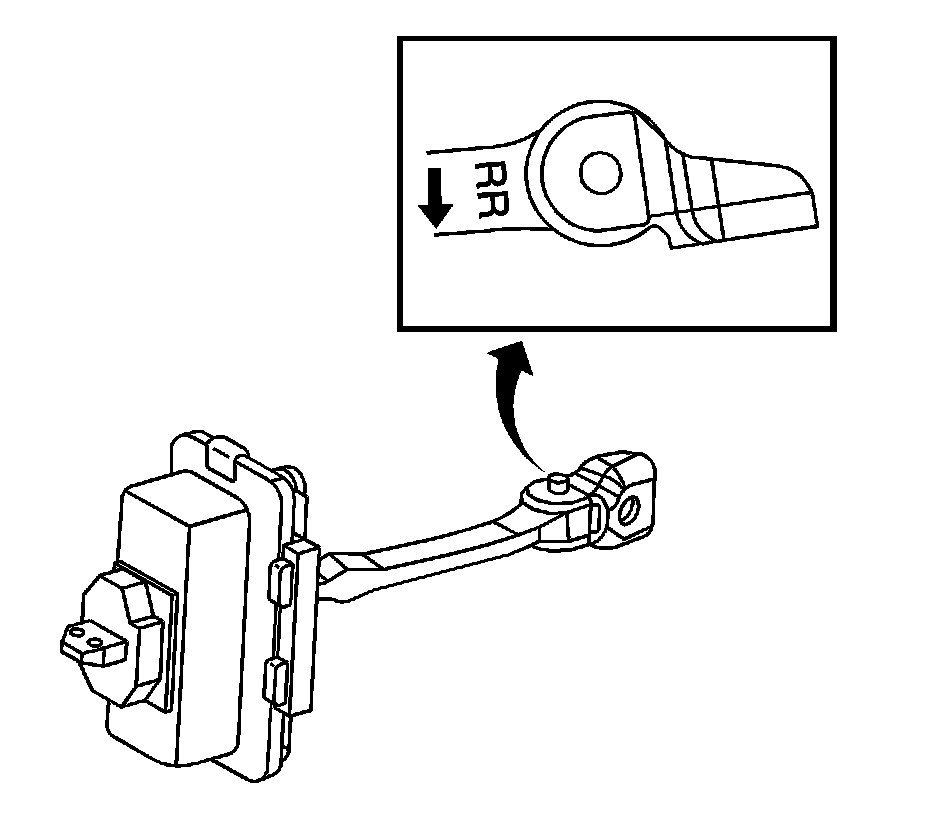

Important: The letters R and L are molded into the check link arm. If you are installing on the right side, the R must be facing up. If you are installing on the left side, the L must be facing up.

1. Position the check link in the rear door.

Notice: Refer to Fastener Notice .





2. Install the rear door check link nuts.

Tighten the nuts to 10 N.m (89 lb in).





3. Install the front door check link bolt.

Tighten the bolt to 9 N.m (80 lb in).

4. Install the rear door water deflector. Refer to Thermal Expansion Valve Replacement .
5. Install the door inner trim panel. Refer to Front Side Door Trim Panel Replacement .
