Rear Floor Panel Carpet Replacement

Rear Floor Panel Carpet Replacement

Removal Procedure

1. Remove front seats bolts and tilt seats forward.

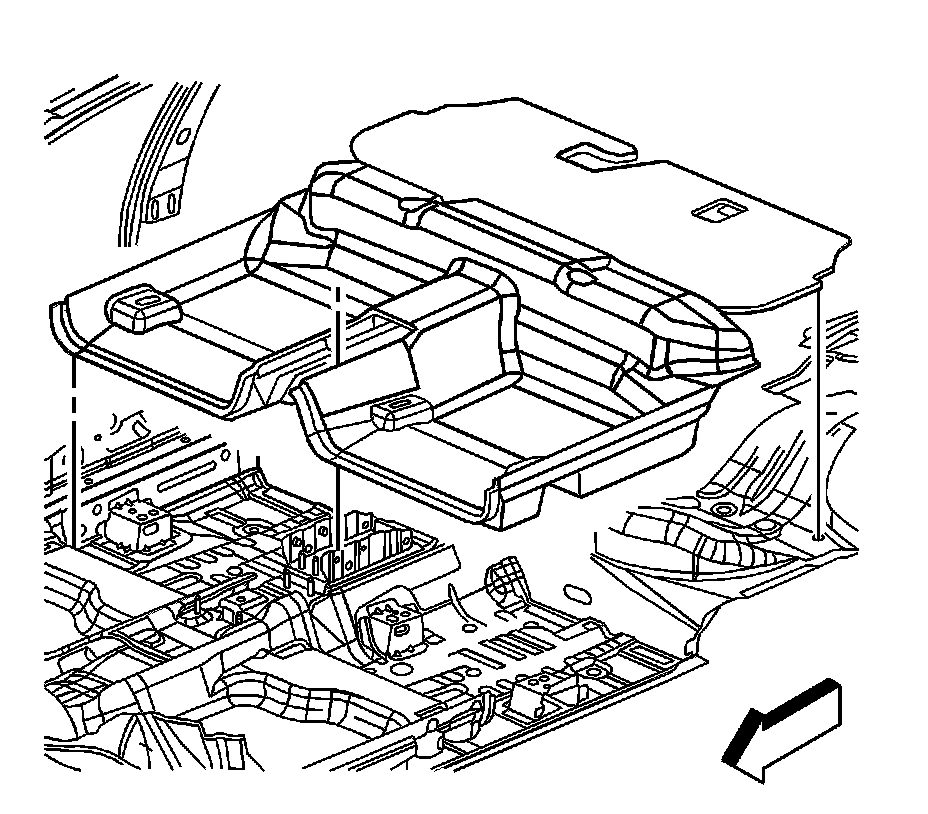

2. Remove the rear carpet.



Installation Procedure





1. Install the rear carpet.

Notice: Refer to Fastener Notice .

2. Install the front seat bolts.

Tighten the bolts to 45 N.m (33 lb ft).
