Instrument Panel Center Support Bracket Replacement

Instrument Panel Center Support Bracket Replacement

Removal Procedure





1. Remove the body control module. Refer to Body Control Module Replacement .
2. Remove the center console. Refer to Console Replacement .

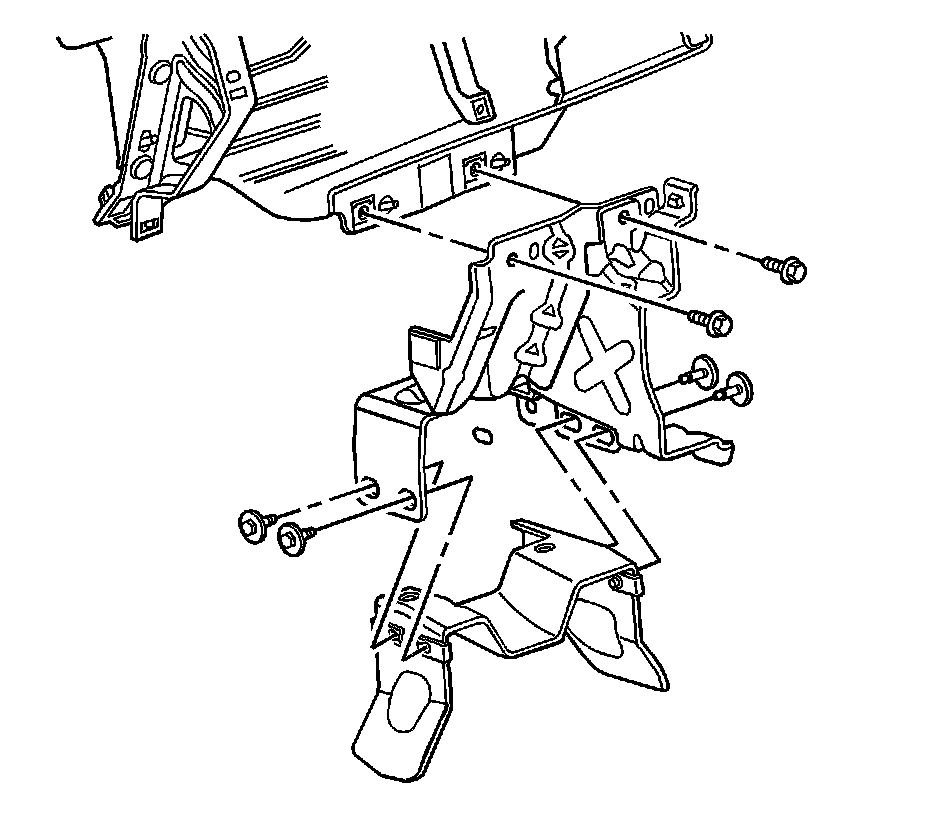

3. Remove the instrument panel (I/P) center support bracket bolts.
4. Remove the I/P center support bracket.



Installation Procedure





1. Install the I/P center support bracket.

Notice: Refer to Fastener Notice .

2. Install the I/P center support bracket bolts.

Tighten the bolts to 10 N.m (89 lb in).

3. Install the body control module. Refer to Body Control Module Replacement .
4. Install the center console. Refer to Console Replacement .
