Rear Compartment Sill Trim Plate Replacement

Rear Compartment Sill Trim Plate Replacement

Removal Procedure

1. Open the liftgate or the decklid.
2. Remove the spare tire cover.

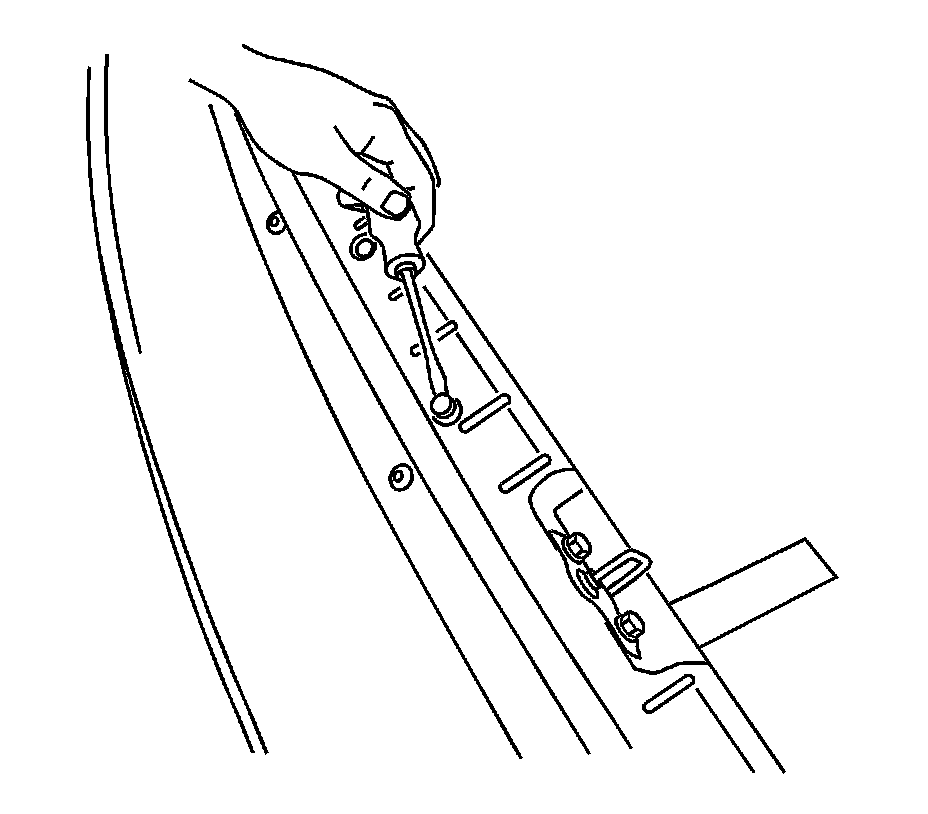

3. Remove the sill plate fastener.

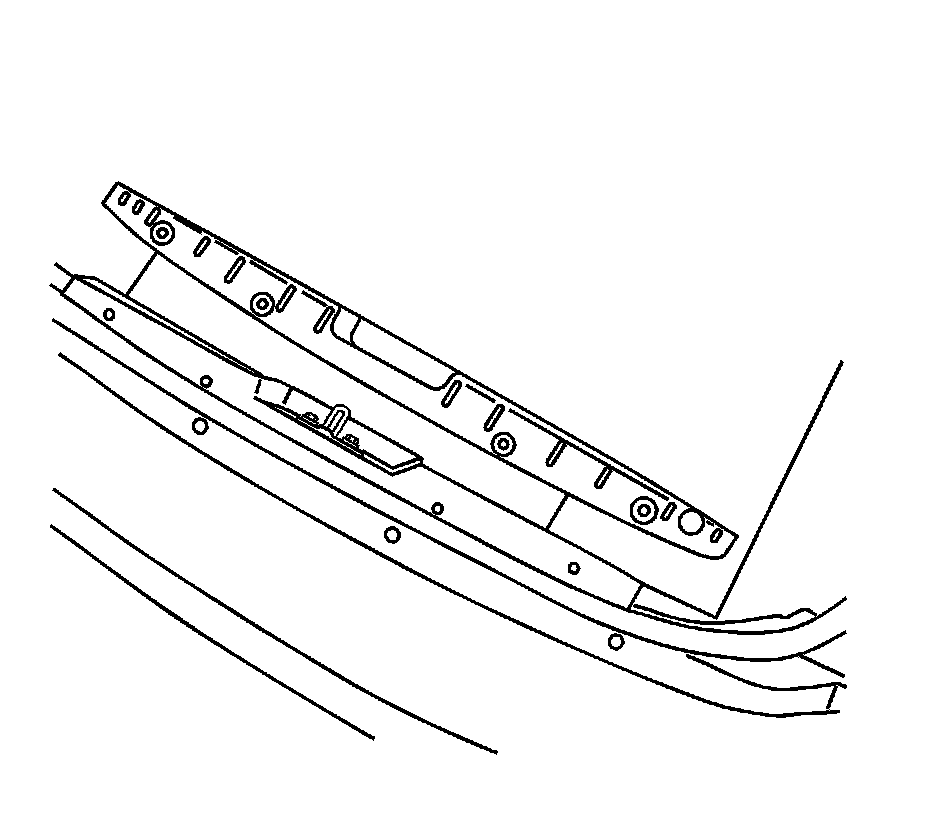

4. Remove the rear compartment sill plate by pulling straight off.



Installation Procedure





1. Install the sill plate to the vehicle.




2. Install the sill plate fasteners.
3. Install the spare tire cover.
4. Close the liftgate or the decklid.
