Rear Quarter Upper Trim Panel Replacement (Extended Sedan)

Rear Quarter Upper Trim Panel Replacement (Extended Sedan)

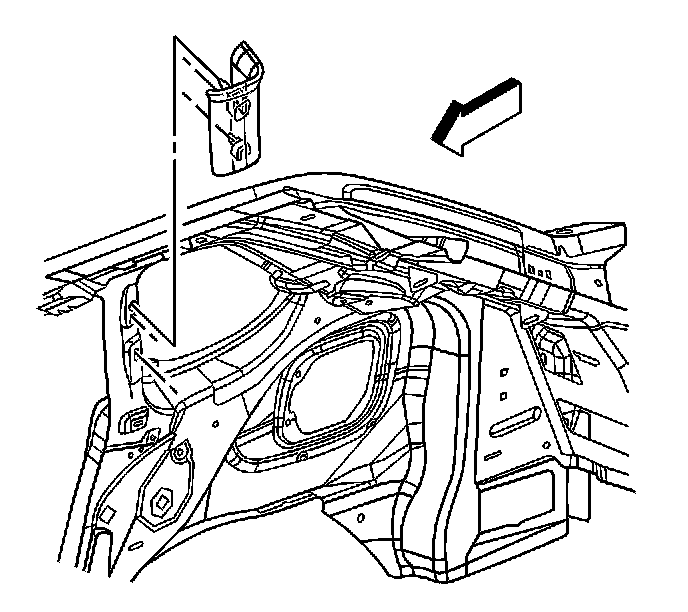

Removal Procedure

1. Using a small flat-bladed tool, remove the trim panel fastener cover.
2. Remove the trim panel fastener.




3. Starting at the top, remove the trim panel by pulling straight off.



Installation Procedure





1. Position the trim panel to the vehicle.

Notice: Refer to Fastener Notice .

2. Install the trim panel fastener.

Tighten the fastener to 3 N.m (26 lb in).

3. Install the trim panel fastener cover.
