Mirror Connector End Views



Mirror Connector End Views

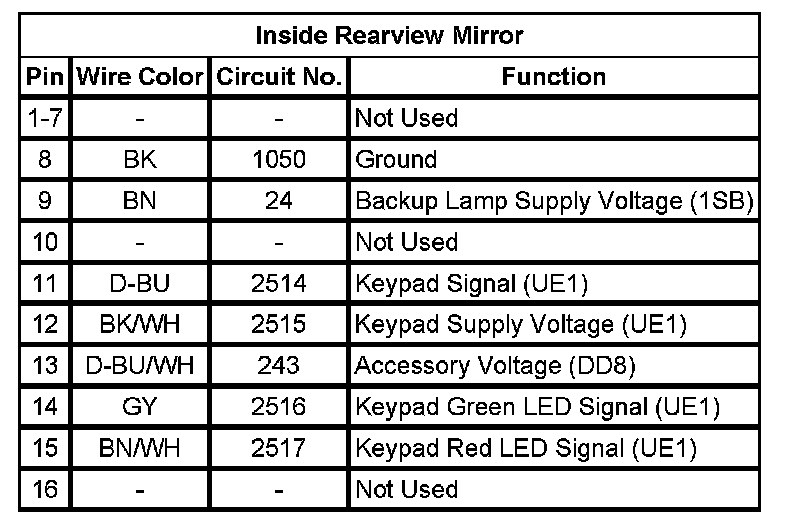

Inside Rearview Mirror

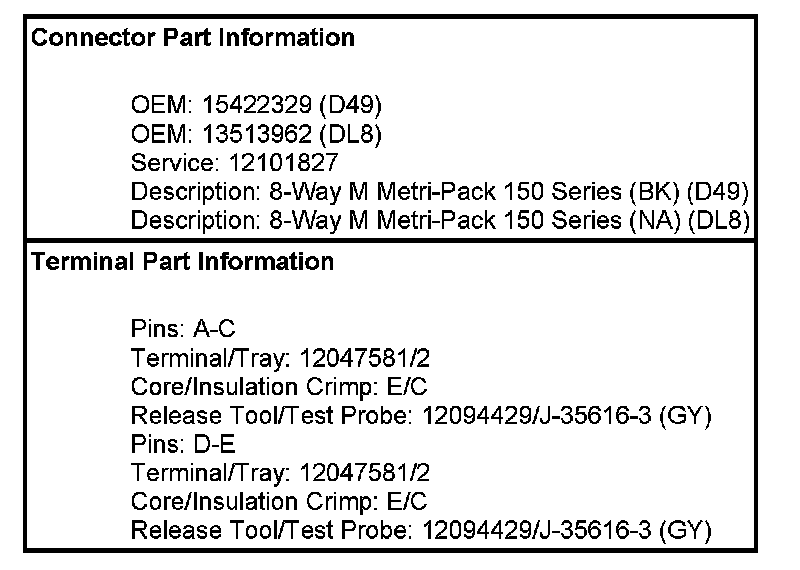

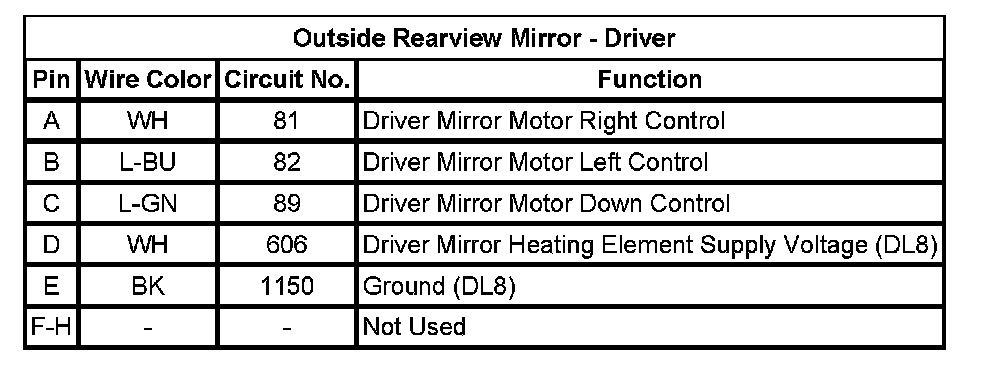

Outside Rearview Mirror - Driver

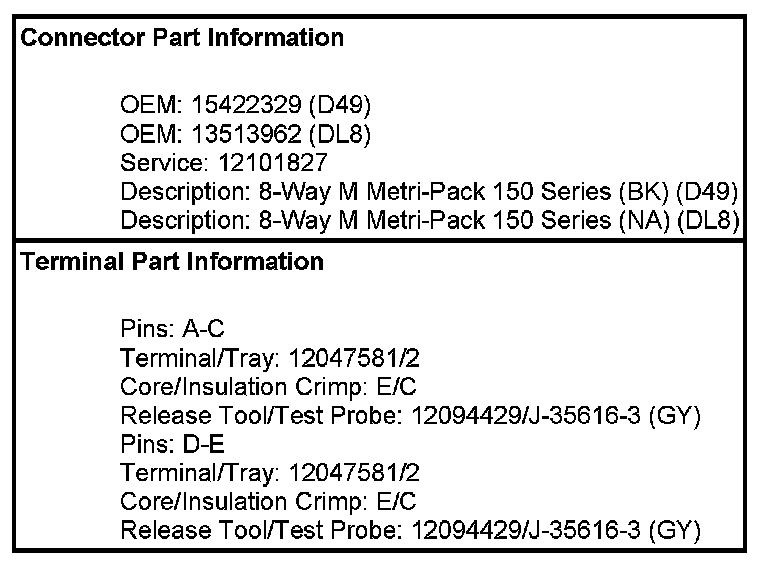

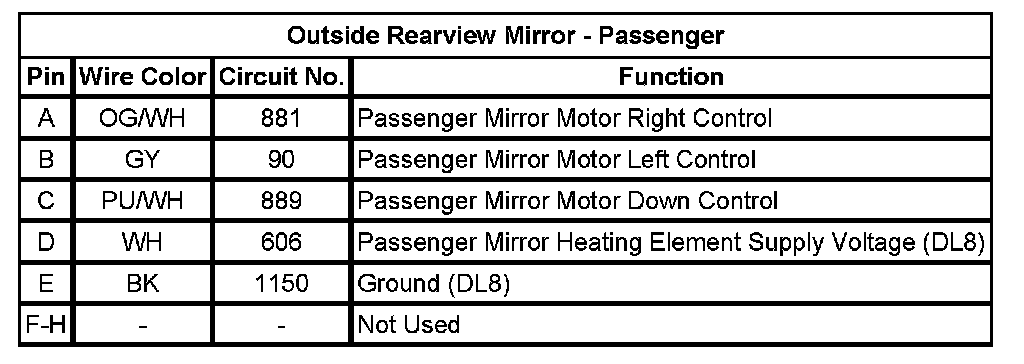

Outside Rearview Mirror - Passenger
