Seat Back Hinge Trim Replacement - Rear Left

Seat Back Hinge Trim Replacement - Rear Left

Removal Procedure

1. Remove the 60 percent side of the seat back. Remove the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Side) Rear Seat Back Cushion Cover and Pad Replacement (60 Percent Side) .

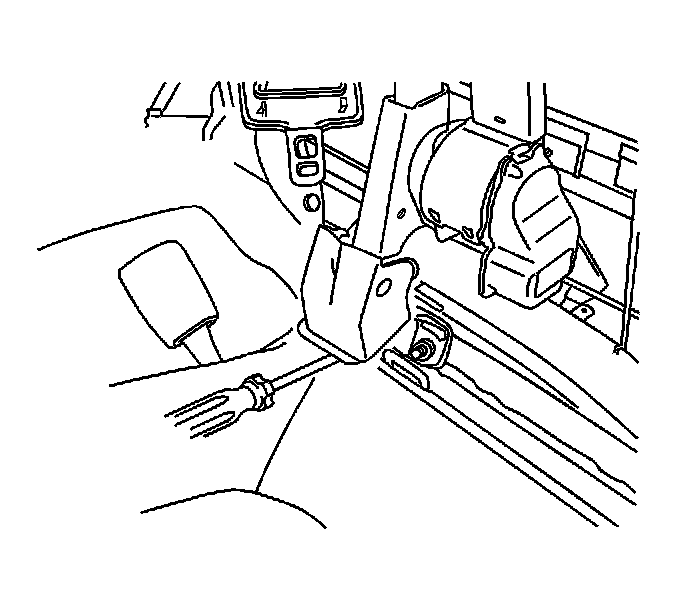

2. Remove the hinge trim fastener and remove the trim.



Installation Procedure





1. Install the hinge trim to the seat and install the trim fastener.
2. Install the 60 percent side of the seat back. Install the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40 Percent Side) Rear Seat Back Cushion Cover and Pad Replacement (60 Percent Side) .
